1 Ton Tensile Testing Machine1 Ton Tensile Testing Machine

The 1 ton tensile testing machine is a precision instrument designed for accurately measuring the tensile strength of various materials. This machine is equipped with a high-quality load cell capable of measuring forces up to 1 ton with exceptional accuracy.

Model:
  • YH-LL1000
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ This model is driven by a motor, and the wire clamp adopts an automatic clamping function, automatically measures and displays the tension value, is easy to operate, and measures accurately.
○ It can test the peak tension, and can also set the upper limit of the tension and the test time for non-destructive tensile testing.

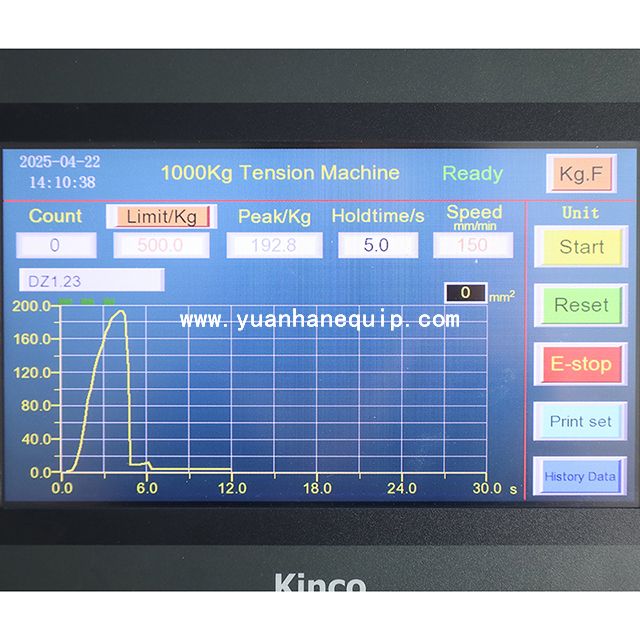

○ With the self-developed test software, the peak graph shows the test process, the tension curve graph, and can print test reports, export test data, and query historical test records.
○ The data center can store 16 programs to meet the test requirements of commonly used wires. Customers can modify the stored programs according to actual production conditions.

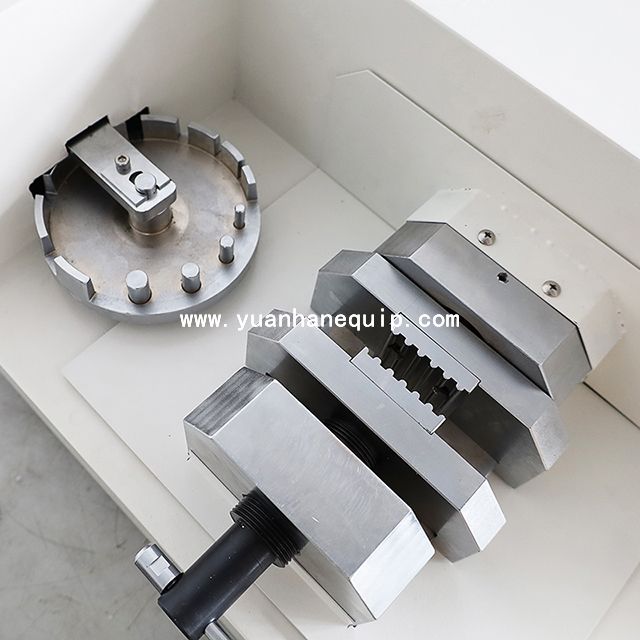

○ The chuck can accommodate various sizes of wires and terminals, and special specifications can be customized at any time.

Model YH-LL1000
Machine weight 65kg
Dimensions L710mm*W490mm*H295mm
Input power AC220V/50Hz
Rated power 0.3KW

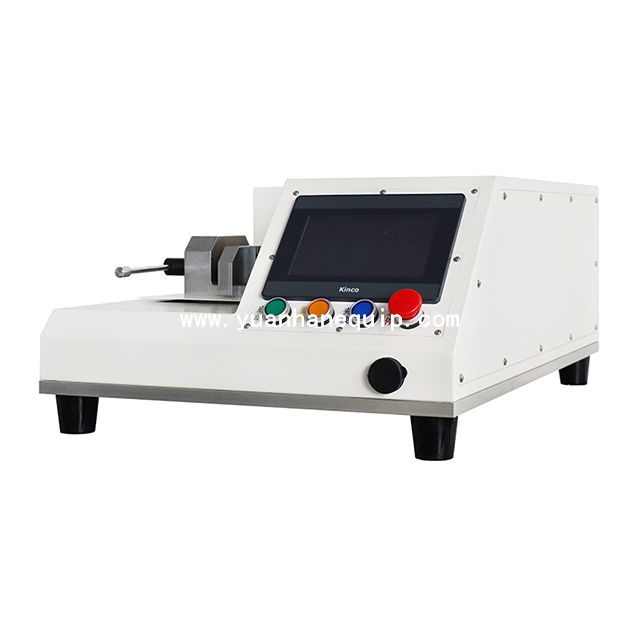

Display mode 7-inch touch screen
Control system Self-developed control board
Equipment function Tensile test, printing function, connection to MES, printing label, tensile curve, automatic clamping
Detection range 1-1000Kg (10-10000N)
Detection stroke 70mm
Detection speed 10-600mm/minute (settable)
Transmission structure Hybrid stepper motor, precision unidirectional screw, linear guide column
Program storage 0-16 (customizable number name)
×
