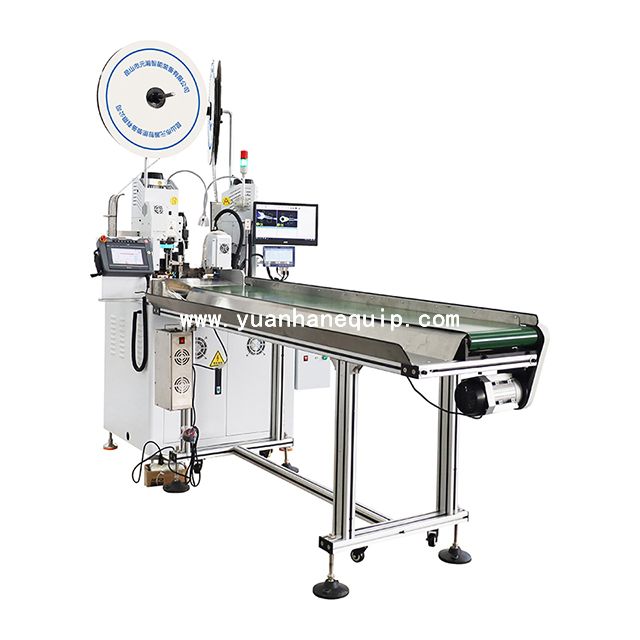

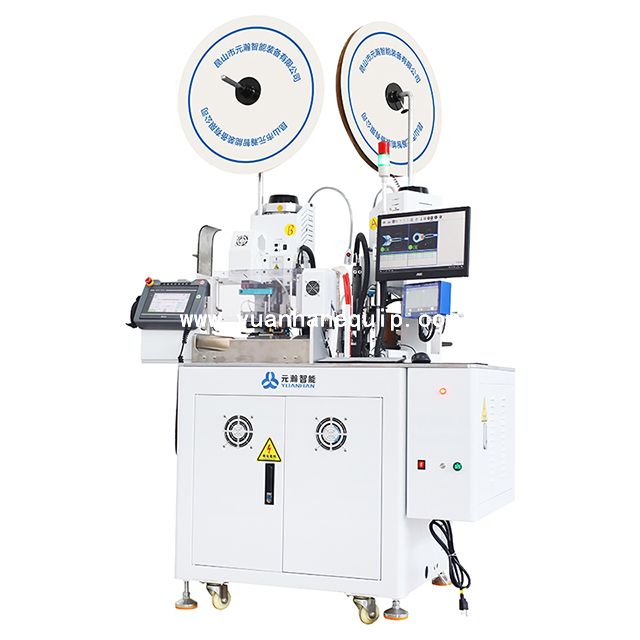

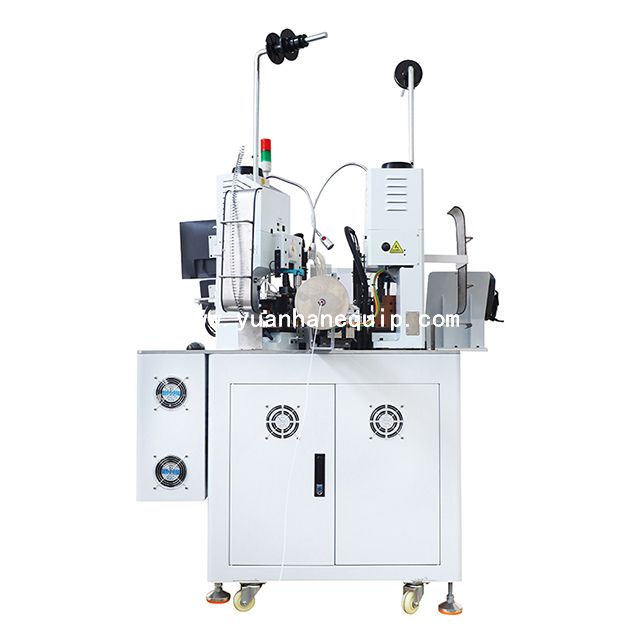

Hot Cutting Stripping and 2-end Crimping Machine

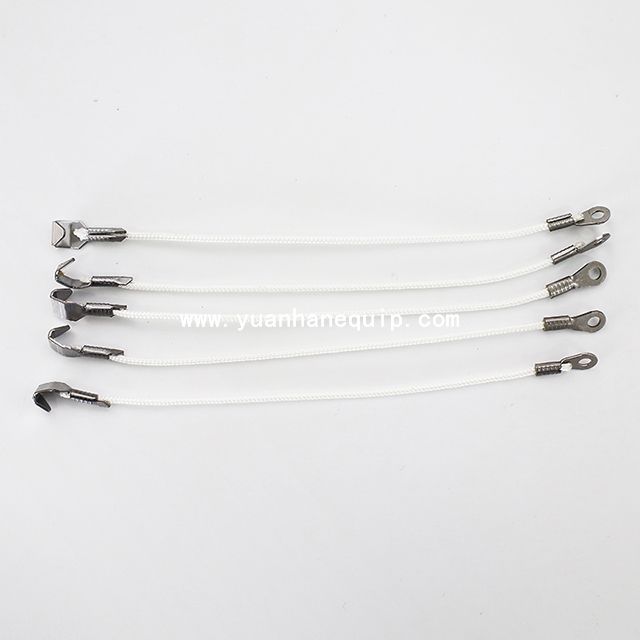

This machine is suitable for processing cloth braided wires. It can complete wire cutting, hot stripping and 2-end crimping automatically.

Model:	YH-SRB01
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

○ Function: cloth covered wire cutting, hot semi-stripping and two ends terminal crimping

○ Compact modular design, saving space

○ High-end and high-precision components ensure good quality of the machine

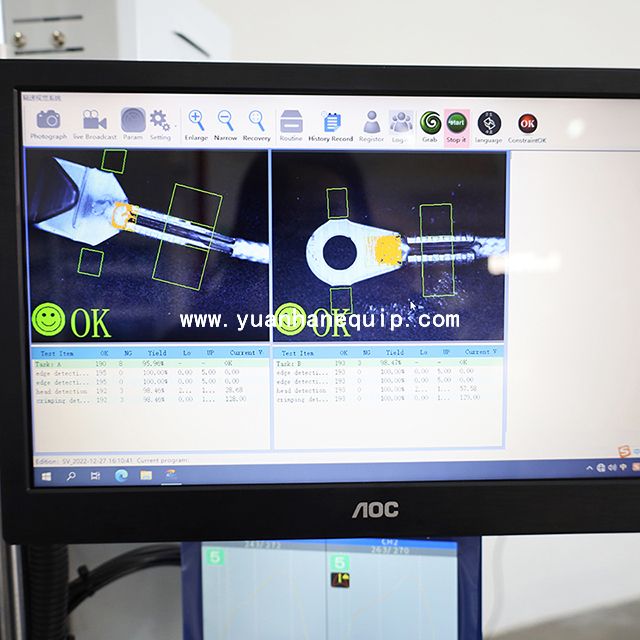

○ Computer touch screen, easy to operate

○ Fast speed and high quality, greatly saving labor

Model	YH-SRB01
Function	cloth covered wire cutting, hot semi-stripping and 2-end terminal crimping
Machine capacity	3800-7600 pieces / hour
Wire cutting length	45-999mm
Wire stripping length	0-10mm
Wire size	AWG18-28#
Tool material	Imported tungsten steel / high-speed net
Pneumatic accessories	Standard AirTAC
Air pressure	0.5-0.7MPA
Power	AC 220V
Dimensions	700(L)600(W)1500(H)mm(Not including packing)
Weight	About 240KG
