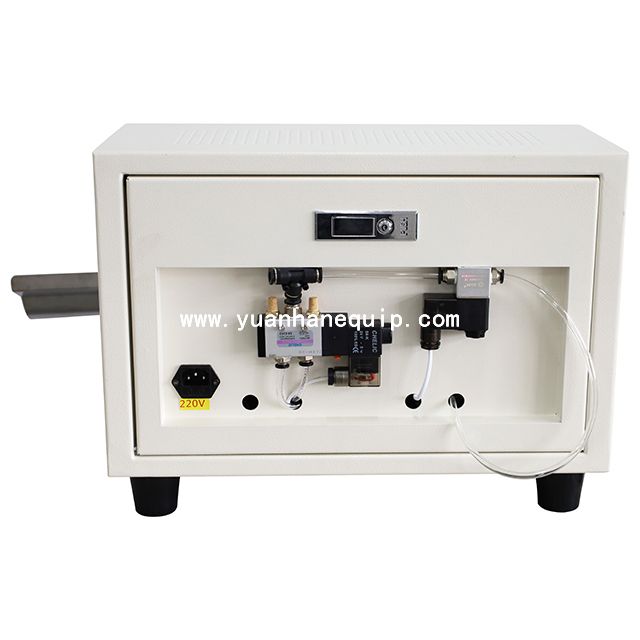

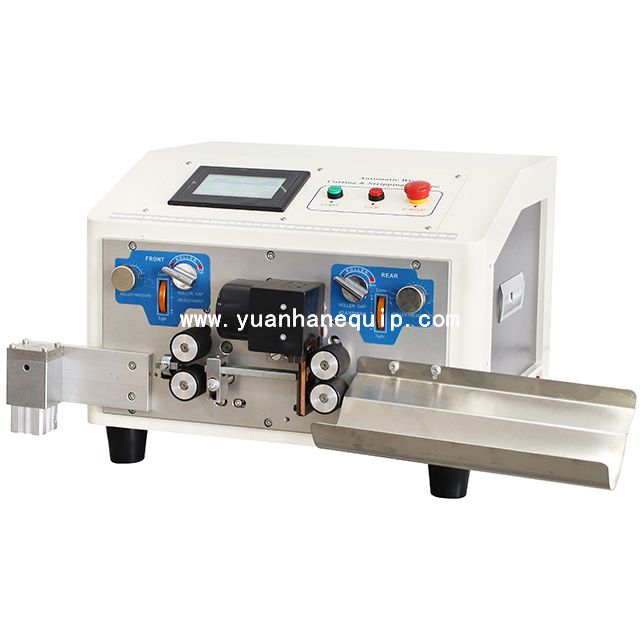

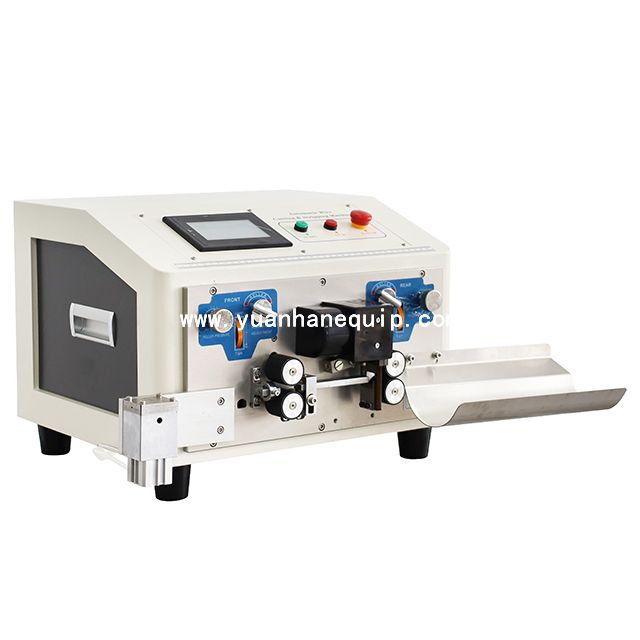

2-pin Flat Cable Cutting Stripping Splitting Machine

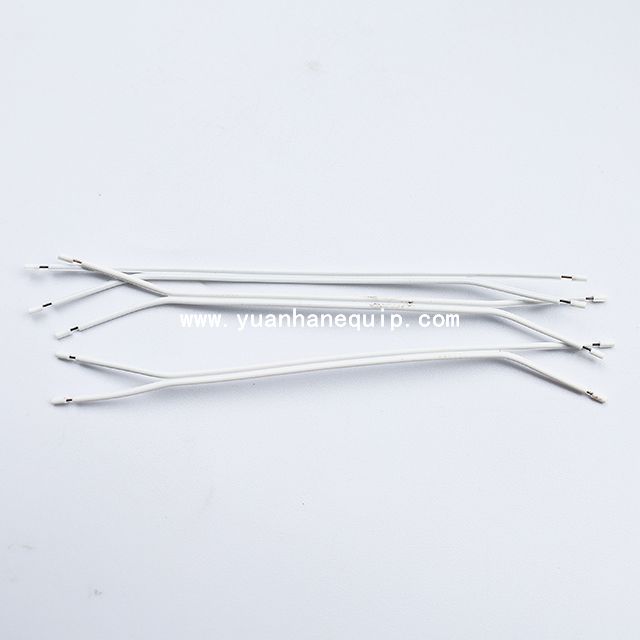

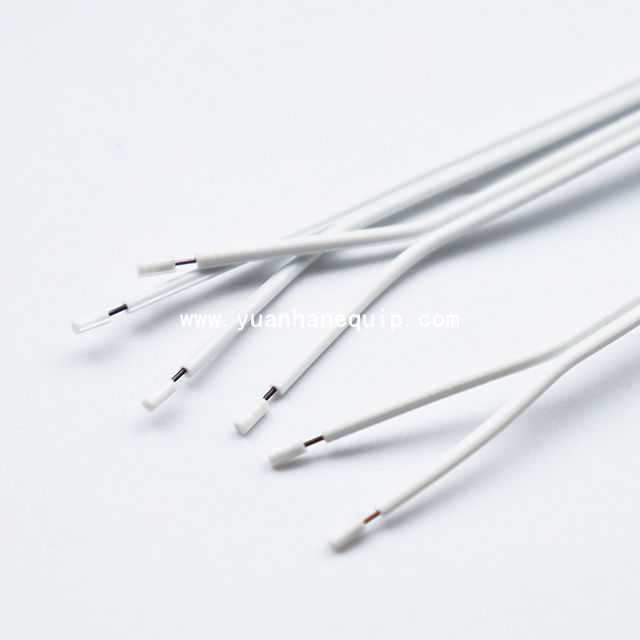

This is a fully automatic 2-pin flat cable cutting stripping and slitting machine. It is able to process of twin flat cables/parallel flat cables.

Model:	YH-802
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

○ Single-chip self-developed motion control board

○ 4.3 inch LCD touch screen

○ Low noise hybrid subdivision driver

○ One-key correction of wire length error

○ Unique appearance, sleek and precise design

○ The length of slitting can be adjusted

Model	YH-802
Function	wire cutting, double-end stripping and splitting
Stripping accuracy	0.01mm
Cable range	2p
Stripping length	head 0.1-30mm, tail 0.1-30mm
Capacity	1000-2000pcs/h
Blade material	imported tungsten steel/high speed steel
Power supply	AC220V50/60HZ
Dimensions	470mm450mm350mm
Weight	33.1kg
