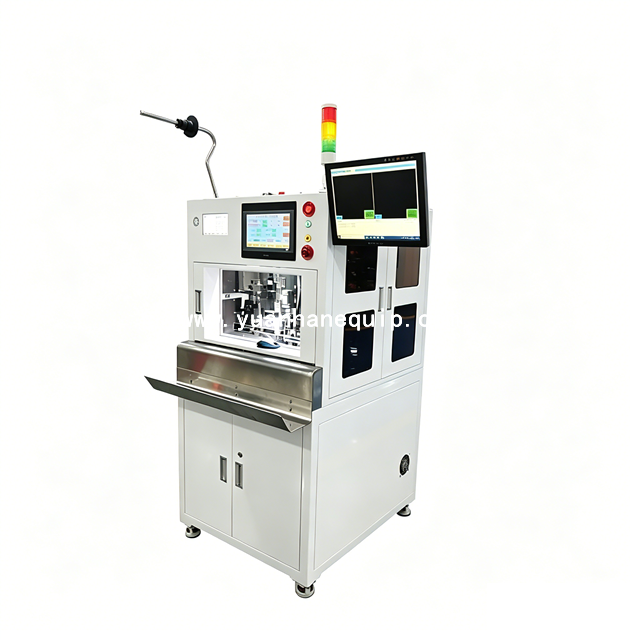

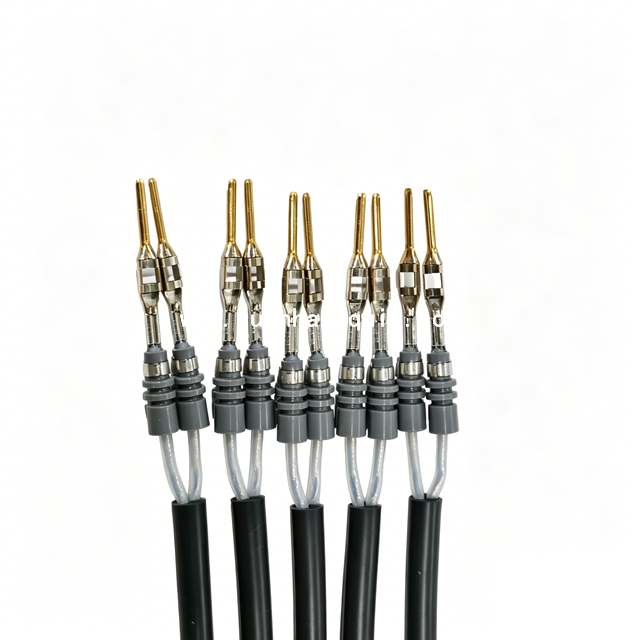

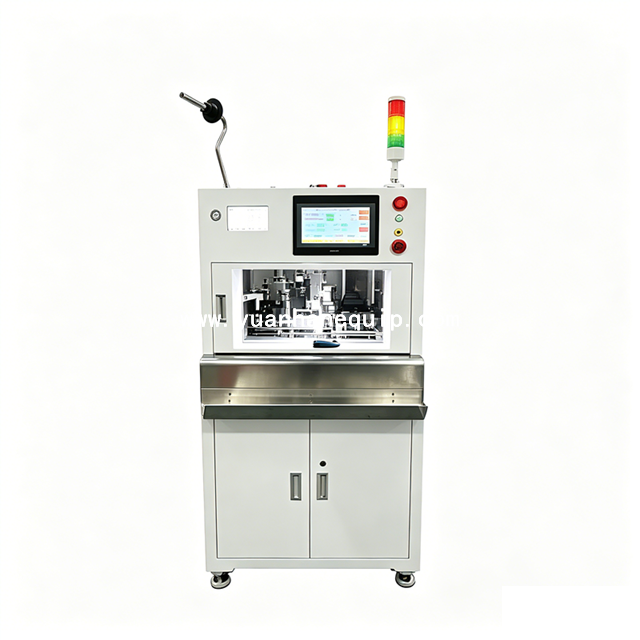

Semi-automatic machine for two-wire rubber seal insertion and terminal crimping. It combines two working procedures, runs steadily and delivers uniform processing results. Ideal for mass production of wire harnesses with reliable performance and simple operation.
|
Model:
|
|
|
Brand:
|
|
○ Integrates rubber seal inserting and terminal crimping for two wires in one station, saving production space and procedures.
○ Semi-automatic operation, simple to learn and easy to operate, effectively cutting labor costs.
○ Precise positioning mechanism ensures consistent crimping and seal installation quality.
○ Stable running performance, low failure rate and long service life.
○ Wide applicability, suitable for various wire harness processing requirements.
○ Compact structure, convenient for daily maintenance and adjustment.
|
Model |
YH-FS862 | |
|
Overall Dimensions |
L1100×W700×H 1460mm | |
|
Equipment Weight |
360Kg/unit |
|
|
Working Air Pressure |
0.4 - 0.8Mpa |
|
|
Working Environment |
0°C - 50°C |
|
|
Working Voltage |
220V±10V |
|
|
Total Power |
2500w |
|
|
Wire Length |
100 - 1000mm |
|
|
Wire Type |
Single wire/Double wire |
|
|
Wire Stripping Length |
1 - 10mm |
|
|
Wire Head Processing Length |
Between 2 - 10mm |
|
|
Inner Wire Diameter Size |
Between 0.8 - 3mm |
|
|
Beat |
1200 - 1800Pcs/hour |
|
|
Yield Rate |
≈97% |
|
|
Riveting Precision |
±0.08mm (riveting position) |
|
|
Detection Precision |
±0.02mm (CCD self - inspection precision) |
|
