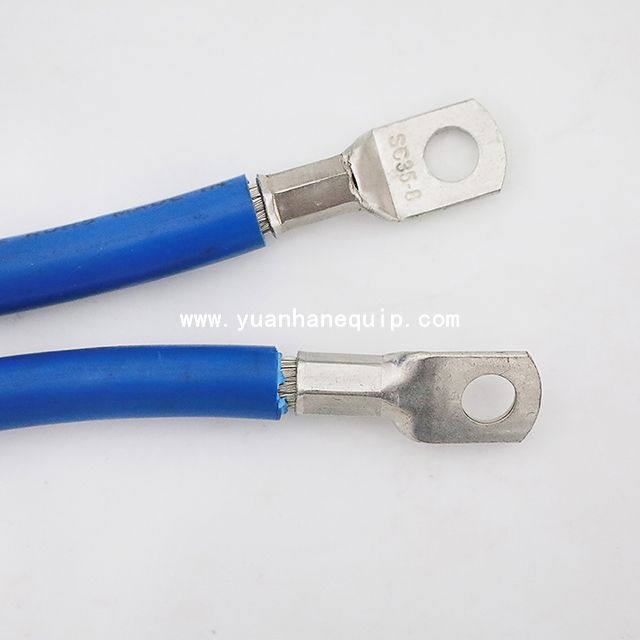

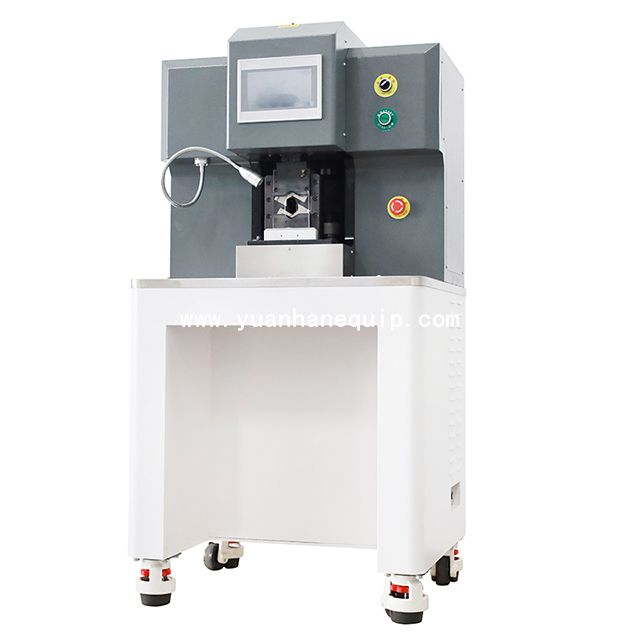

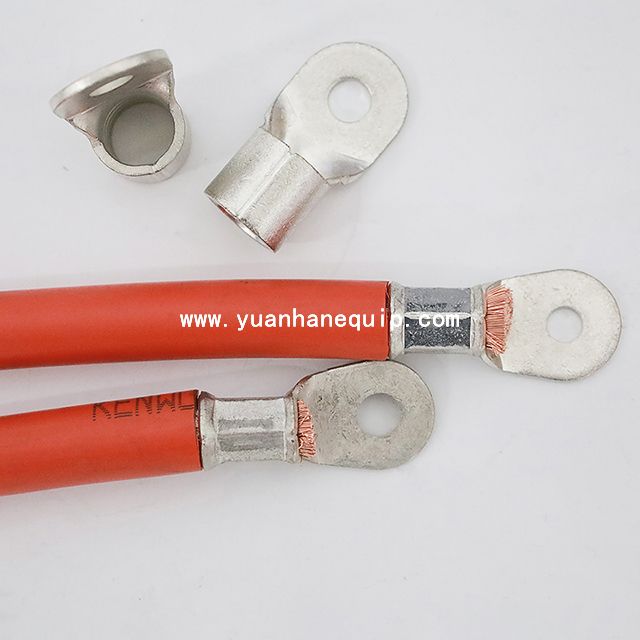

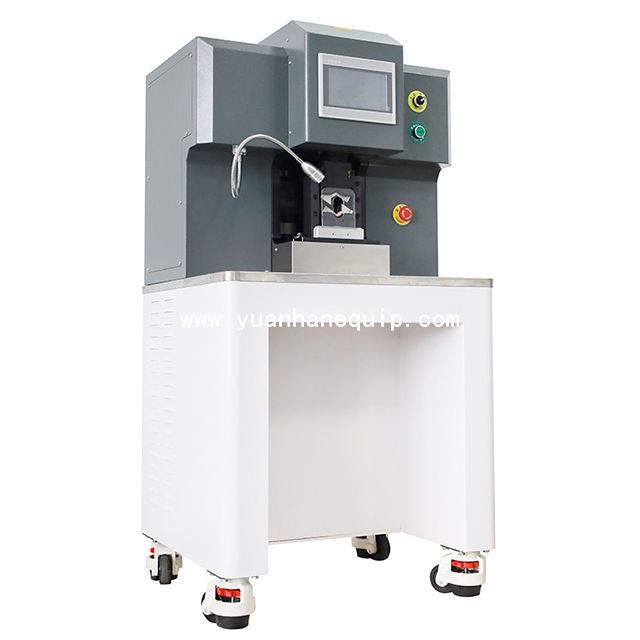

This is a semi-automatic servo motor driven 35T cable lugs crimping machine. It is widely used in new energy wire harnesses, automotive charging piles, energy storage wire harnesses and other wire harness processing industries.
|
Model:
|
|
|
Brand:
|
|
○ This machine uses a 2.2KW servo motor with a high-precision Taiwan Hiwin screw rod. While the machine outputs 35 tons of pressure, it meets the high-precision wire harness crimping requirements.
○ The machine is easy to operate and has a fully digital touch screen. After the crimping parameters are preset, the crimping data can be retrieved according to the crimping product model for crimping.
○ This machine is widely used in new energy wire harnesses, automotive charging piles, energy storage wire harnesses and other wire harness processing industries.
| Model | YH-SF35T |
| Power supply voltage | 220V 50HZ |
| Servo motor | 2.2KW (power) servo system |
| Screw rod | Taiwan Hiwin screw rod |
| Operation mode | 7-inch touch screen control to adjust the crimping height and call the work order |

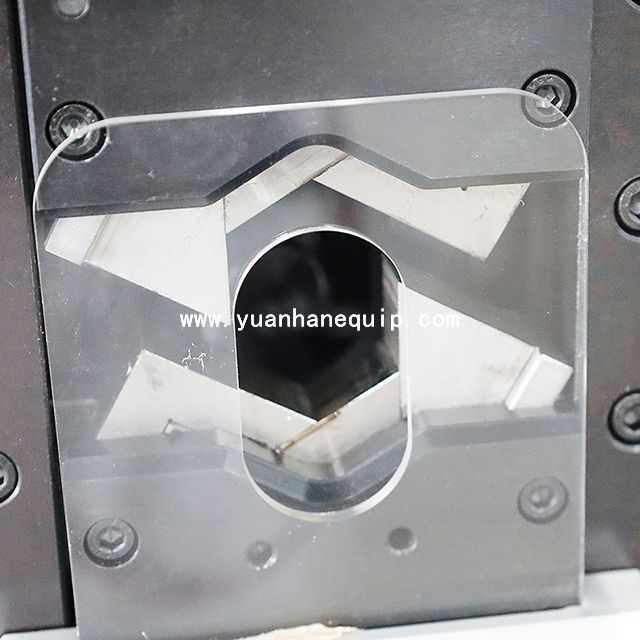

| Applicable molds | six-sided molds, four-sided molds, M-type knife molds |
| Machine stroke | 40 strokes (adjustable) |
| Crimping accuracy | 0.05 mm (5 wires) |
| Crimping size | standard 150 mm² molds, 35 tons crimping force, can press 240 mm² terminals |
| Display language | Chinese and English (switchable) |
| Equipment size | L700*W650*H1400 |
| Packing size | L720*W680*H1240 (export wooden box packaging) |
| Weight | empty machine including packaging (385KG) |
