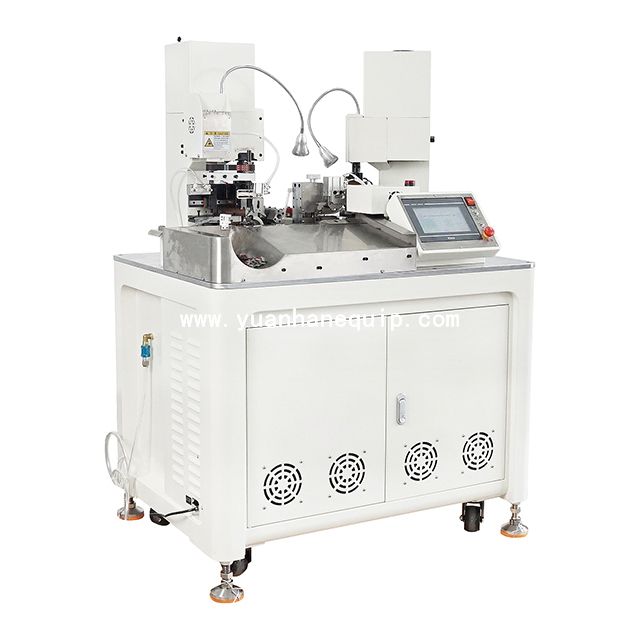

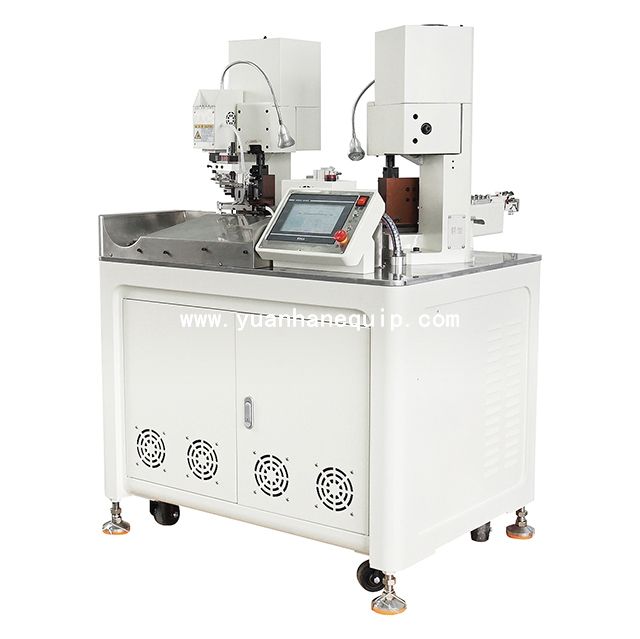

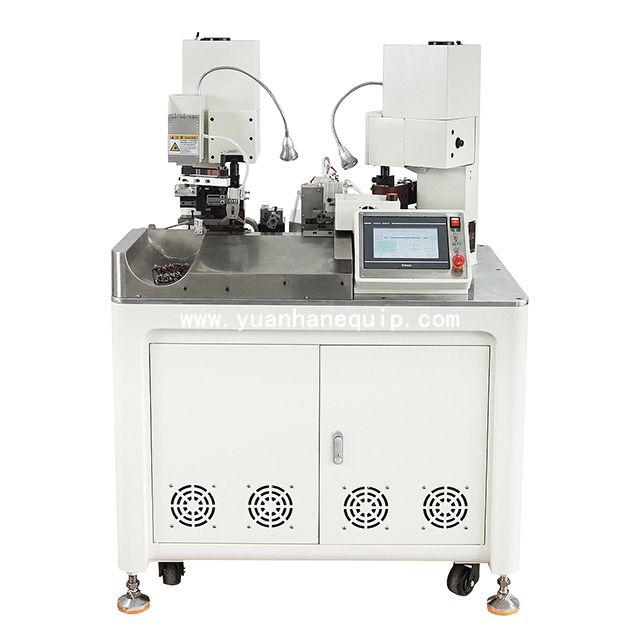

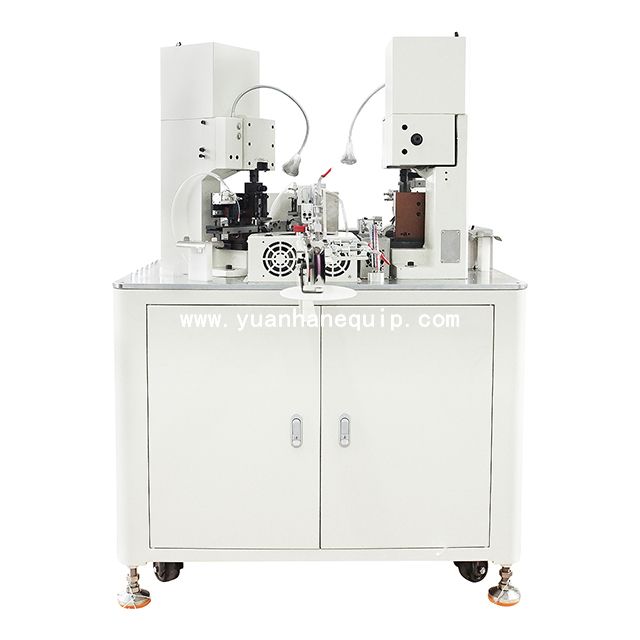

Automatic Dual-End Wire Crimping Machine

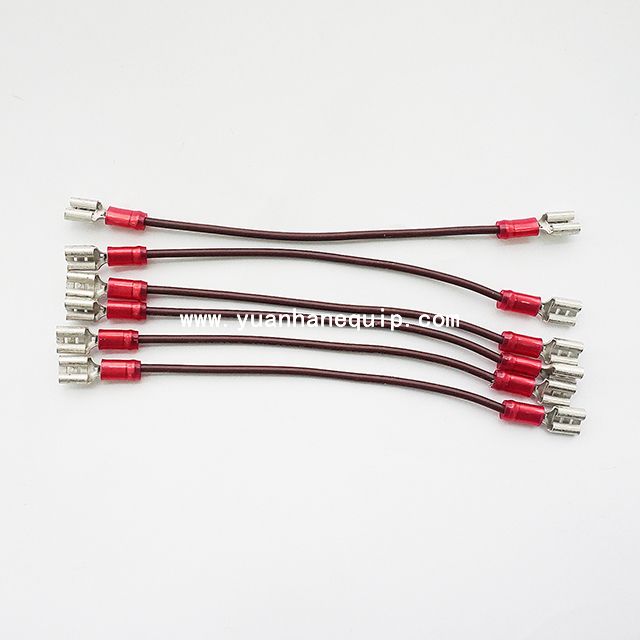

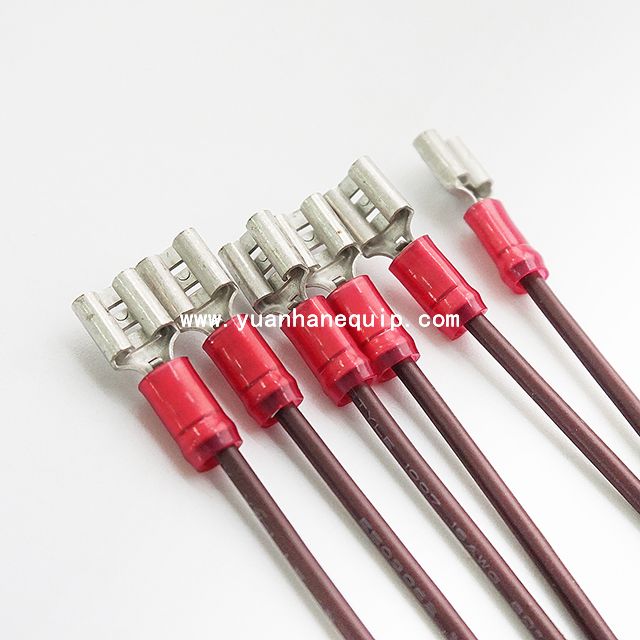

This is a fully automatic cable cutting stripping and dual-end terminal crimping machine. Applicable wire range: AWG14 - AWG28.

Model:
  • YH-ST02
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Function: Wire cutting, double-end twisting, single-end crimping, and double-end crimping.

○ Exquisite appearance, compact structure, space saving, beautiful design

○ Computer touch screen, easy to operate

○ Parts replacement is simple and fast, full digital troubleshooting, easy maintenance

○ Efficient stepper drive, high precision and fast drive

Model YH-ST02
Power supply AC220V/50/60HZ single phase
Capacity 1400 pieces/hour (length<300mm)
Wire range AWG14 - AWG28
Cutting length 65mm - 9999mm (special length can be customized)
Cutting accuracy 1mm+cutting length*0.2% or less
Stripping and twisting length 7mm - 12mm
Crimping capacity 2.0 tons (3.0T optional)
Air pressure 4 - 6kgf (clean and dry air is required)
Detection device optical fiber induction, detection of wire presence, detection of terminal crimping, blockage detection, low air pressure detection
Dimensions 700W x 800L x 1500H(mm)
Weight about 358kg
×
