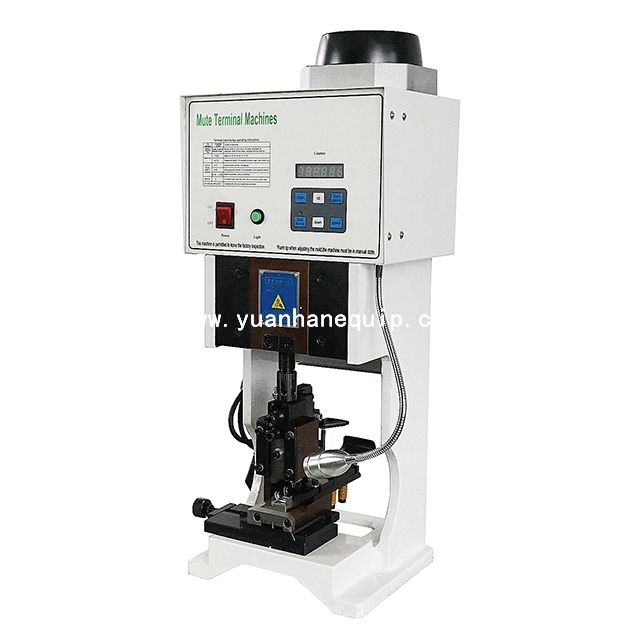

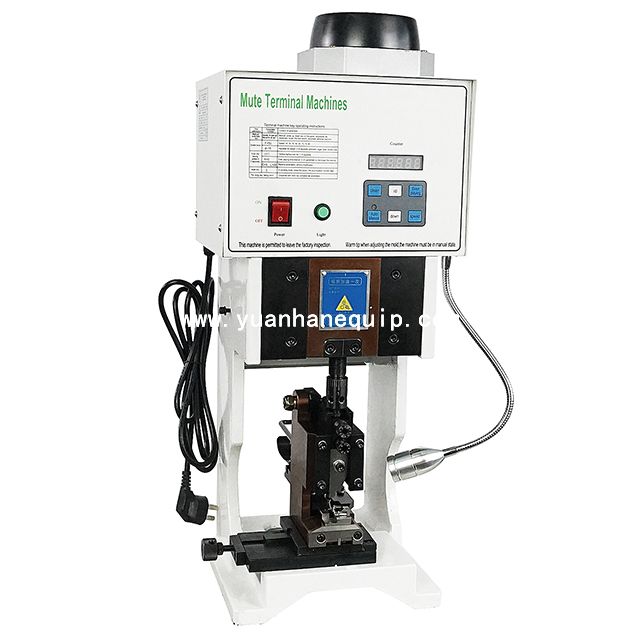

Automatic Flag Terminal Crimping Machine

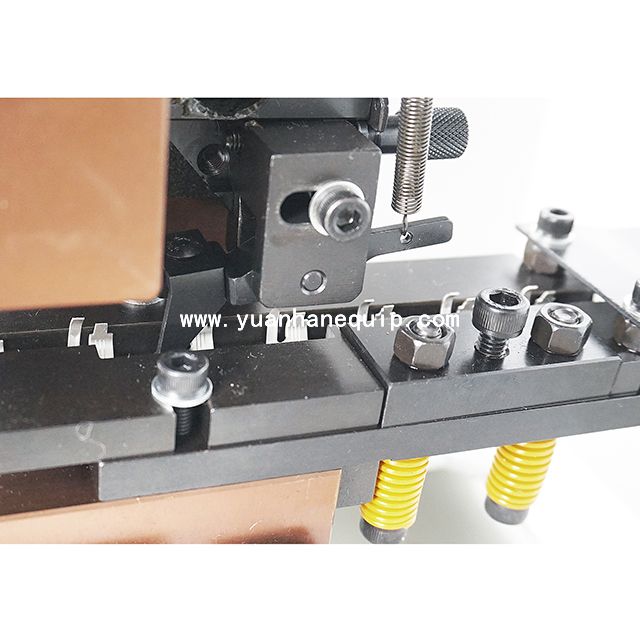

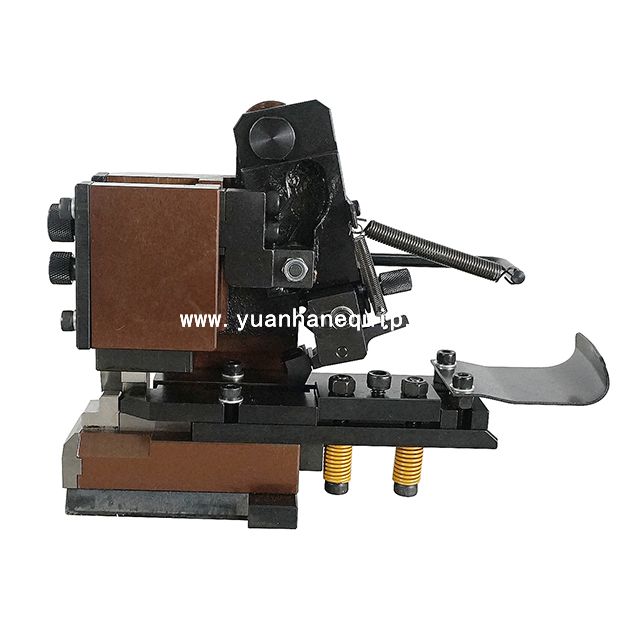

This a semi-auto flag terminal crimping machine with 3.0T crimping machine. It is compatible with vertical and horizontal applicators, and one machine is suitable for all terminal types by replacing the crimping applicator.

Model:
  • YH-3.0T
Brand:
  • Yuanhan
Share to:
Description
Specifications
  • Easy to change applicators, fast and time saving

  • Stable voltage, fast speed, high accuracy, low noise

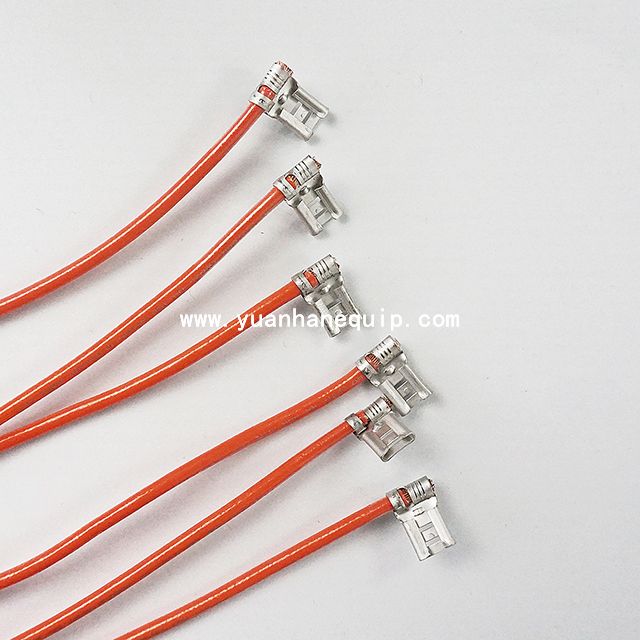

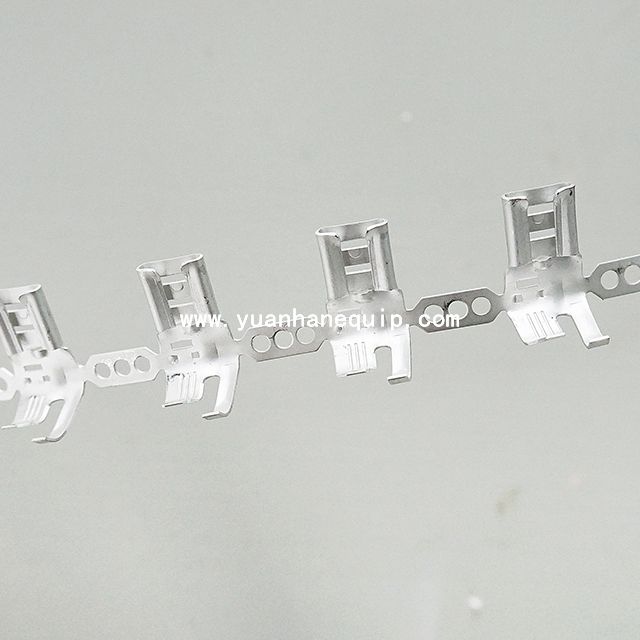

  • Suitable for crimping flag terminals, computer terminals, DC terminals, AC terminals, single grain terminals, and joint terminal

  • Suitable for OTP transverse mode, OTP positive mode, OTP reverse mode, and 2000# mold

  • Work times can be adjusted to 1-20 times, and the working interval can be adjusted as well

Model YH-1.5T YH-2.0T YH-3.0T YH-4.0T YH-8.0T
Output 1.5Ton 2.0Ton 3.0Ton 4.0Ton 8.0Ton
Nominal Pressure 1500KG 2000KG 3000KG 4000KG 8000KG
Frequency Power 550W 750W 1100W 2200W 3000W
Motor Power 550W 750W 1100W 1500W 3000W
Stroke 30mm (40mm is customizable)
Power Supply 220V/50Hz, 110V/60Hz
Net Weight (KG) 38 55 55 96 169
Dimensions (MM) 220*250*600 240*270*650 270*260*640 310*210*750 380*310*850
×
