Automatic KN95 Mask Edge Sealing MachineAutomatic KN95 Mask Edge Sealing Machine

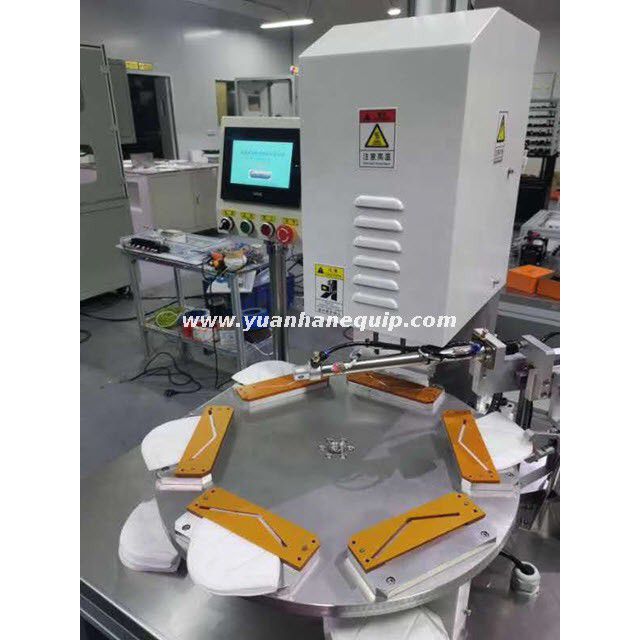

This KN95 mask edge sealing machine adopts 6-station automatic rotating platform, ultrasonic automatic welding technology, and the mask is automatically edge-sealed.

Model:
  • YH-KN95FB
Brand:
  • Yuanhan
Share to:
Features
Specifications

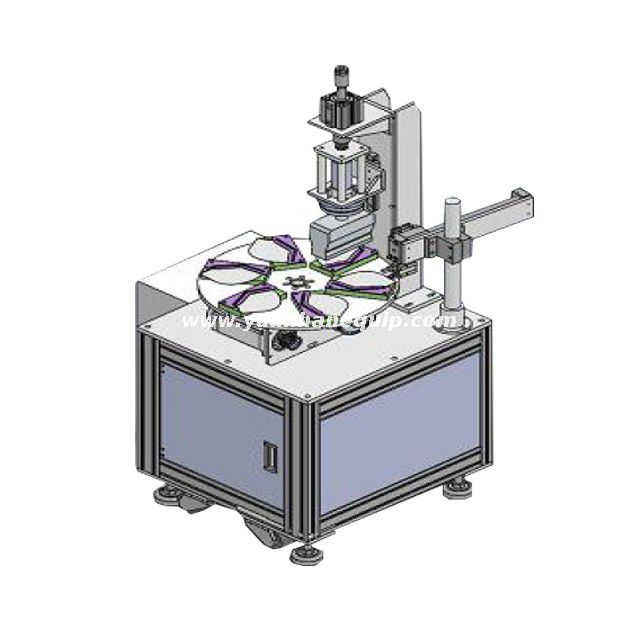

  • The equipment adopts 6-station automatic rotating platform, ultrasonic automatic welding technology, and the mask is automatically edge-sealed.

  • Manual feeding, ultrasonic welding and edge sealing

  • The welding process is completed automatically, the operation is convenient, and the yield is high.

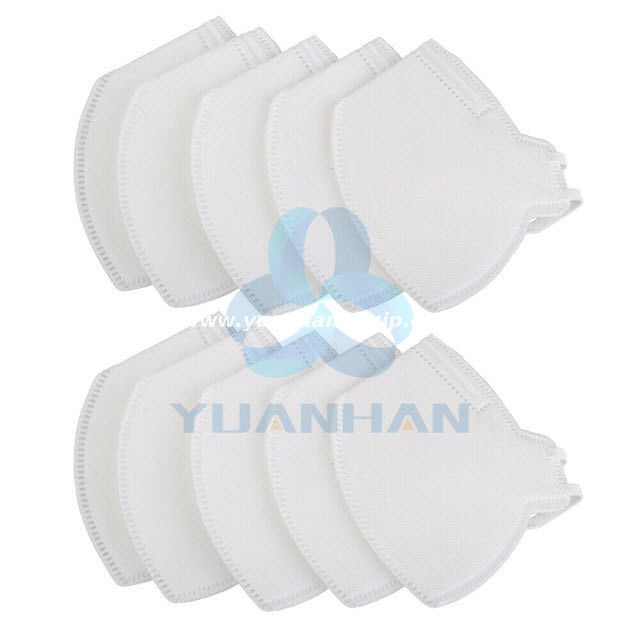

  • The positioning jig can be quickly replaced to adapt to the production of various types of butterfly shape KN95 masks.

ModelYH-KN95FB
Working power220VAC±5%50HZ
Rated power3.5KW
Compressed air pressure0.6Mpa -0.7Mpa
Working environmenttemperature 10-35, temperature 5-35% HR, no dust (cleanness not less than 100,000 grade)
Production efficiency25-30PCS / min
Weight
about 100KG
Dimensions1,200mm (L) X 800mm (W) X 1,800mm (H)



×
