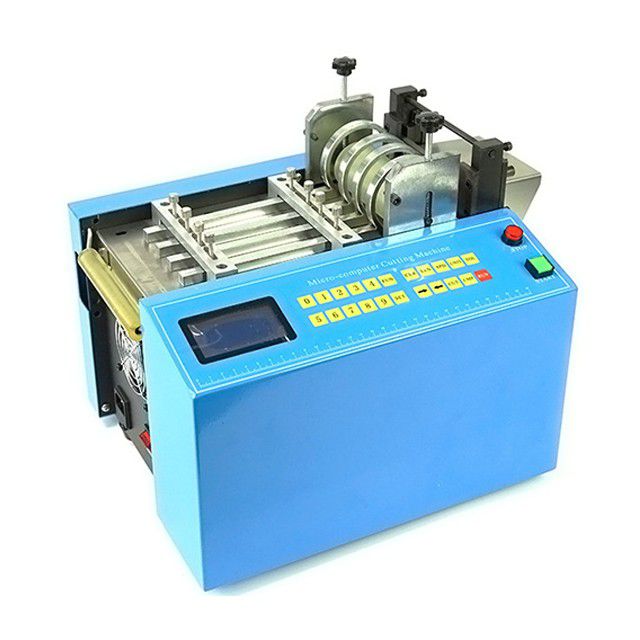

Automatic KN95 Mask Nose Bridge Clips Cutting Machine

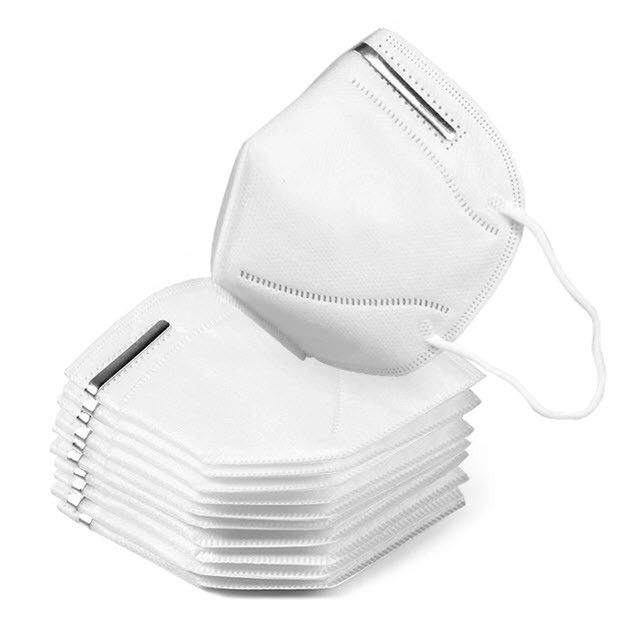

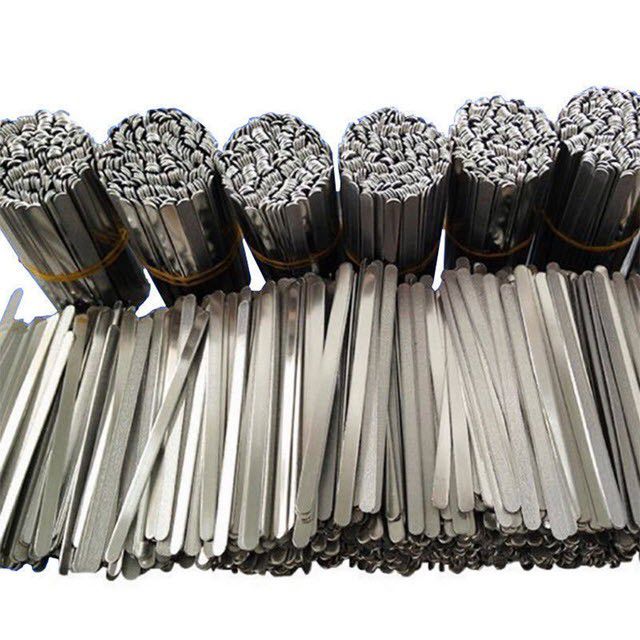

This fully automatic cutting machine is designed for cutting different kinds of materials like KN95 mask nose clips, hoses and tubes, wire ropes and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, etc.

Model:
  • ZCUT-120S
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • High efficiency and high accuracy: up to 150 times per minute;

  • Tolerance: +/- 0.5% of cutting length;

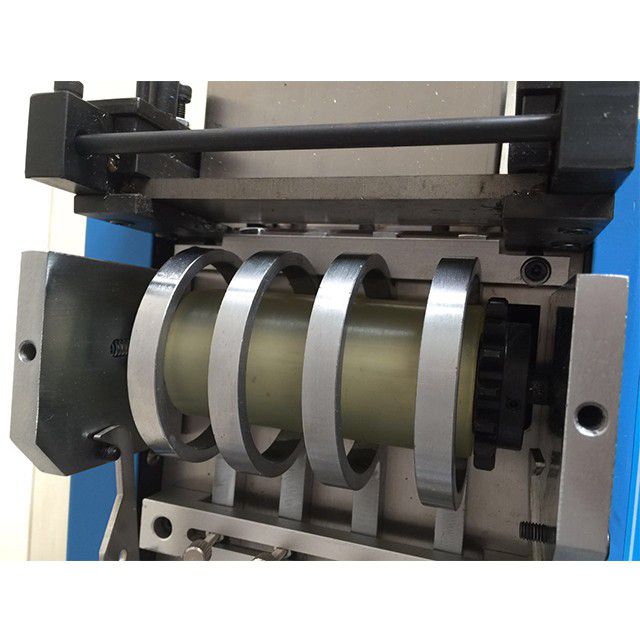

  • Cutting type: Cold cutting with a durable cold knife;

  • Suitable for cutting different kinds of materials like KN95 mask nose clips, hoses and tubes, wire ropes and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, etc.

  • Automatic operation: It works automatically only by setting length and quantity;

  • Automatic stopper: It stops automatically if materials run out during operation;

  • Memory function: the previously set length, quantity and speed will not be erased even if power off & on;

  • We supply different models to fit your requests.

ModelZCUT-100SZCUT-120SZCUT-160SZCUT-200SZCUT-300S

Cutting length

(mm)

1mm-99999mm 1mm-99999mm 1mm-99999mm 1mm-99999mm 1mm-99999mm
Cutting accuracy (mm)0.1mm0.1mm0.1mm0.1mm0.1mm
Max cutting width (mm)1-100mm 1-120mm 1-160mm 1-200mm 1-300mm
Cutting speed(p/min) 150150150150150
Knife max temperature (C)cold knife cold knife cold knife cold knife cold knife
Voltage/frequency(V/Hz)110V/220V50/60110V/220V50/60110V/220V50/60110V/220V50/60110V/220V50/60
Rating Power(W) 500W750W1100W1300W1500W

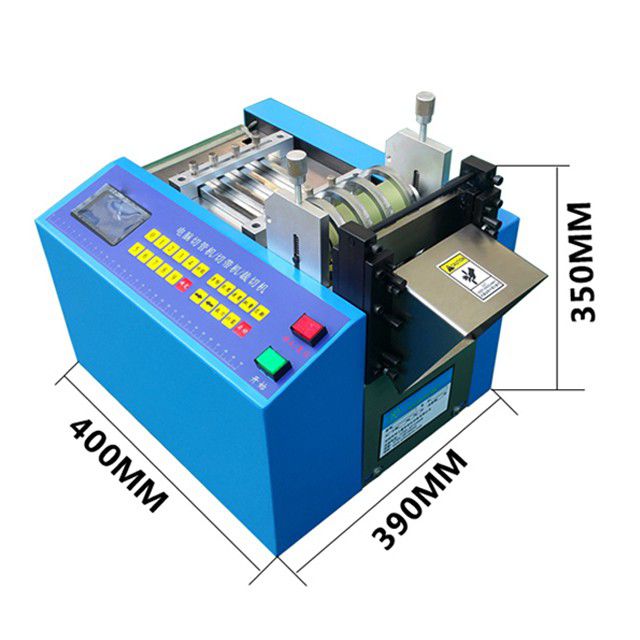

Size(mm)

(LxWxH)

430×300×480430×330×480(430×380×480430×400×480430×510×480
Weight(NW)30kg32kg34kg36kg40kg


×
