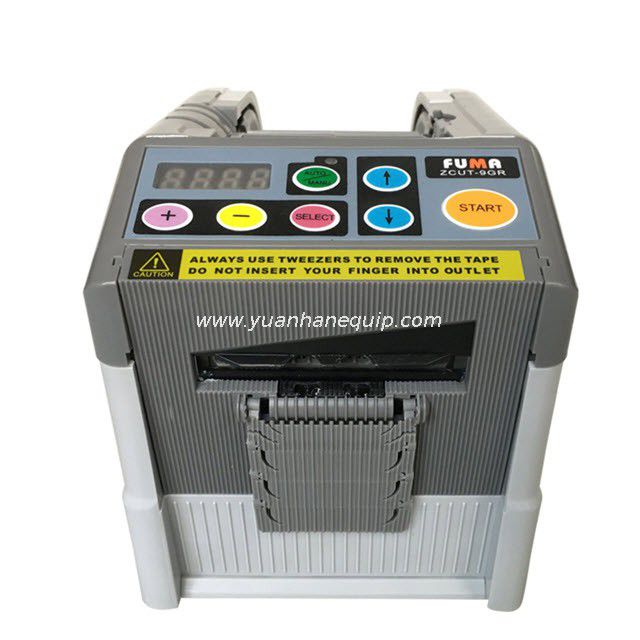

ZCUT-9GR is an automatic tape dispenser. It is suitable for cutting of scotch tape, high temperature tape, textured paper tape, acetate tape, glass cloth, double-sided tape, Nomex tape, filament tape, electric tape, etc.
Model:
|
|
Brand:
|
|
○ Cabinet type without hanger, any type of tape reel can be used.
○ Any size of tapes fit without bobbins.
○ Cutting length : 5mm - 999mm.
○ Can cut protective film, copper foil, aluminum foil, insulating materials, etc.
○ With memory function, six different lengths can be set.
○ The film or tape can be fixed by using flexible tape support.
○ Features preset and cycle counter functions.
○ Two rolls of tape can be cut at the same time.
○ Dual photoelectric sensor.
○ Built-in tweezers, oil and separator.

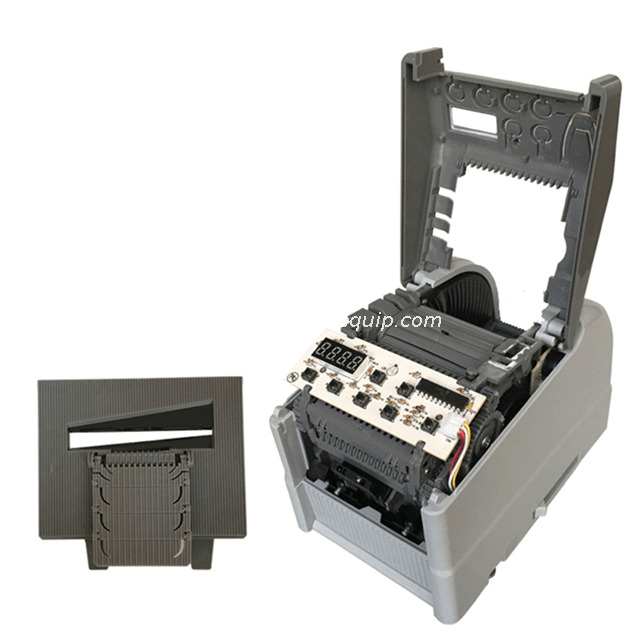

○ The back cover can be opened manually, easy to maintain

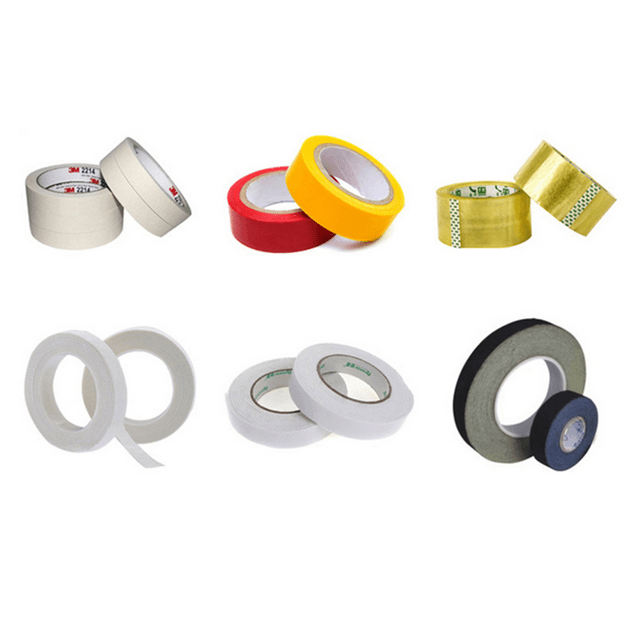

○ Application: scotch tape, high temperature tape, textured paper tape, acetate tape, glass cloth, double-sided tape, Nomex tape, filament tape, electric tape, etc.
Model | ZCUT-9GR |
Cutting length | 5-999mm |
Cutting width | 6-60mm |
Max. OD of Roll | more than 300mm |
Body Material | Anti-Static ABS |
Power supply | AC220/110V 50/60Hz 18W |
Dimension | 116mm*140mm*213mm |
Weight | 2.5kg |
