Kunshan Yuanhan Electronic Equipment Co., Ltd.

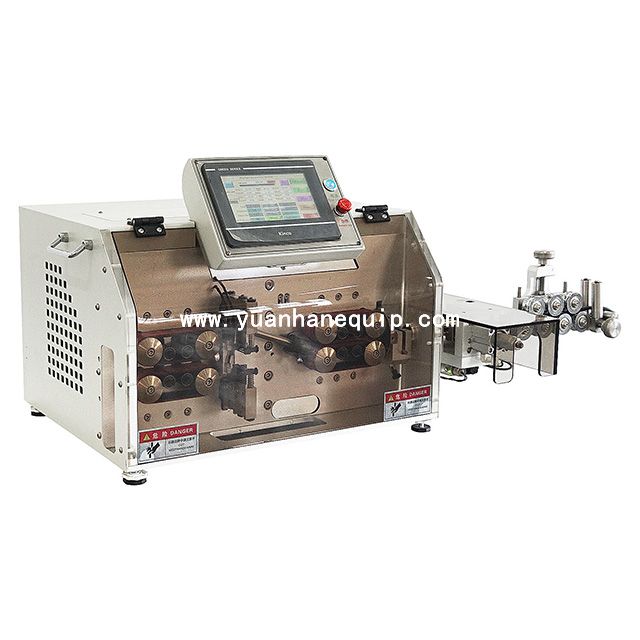

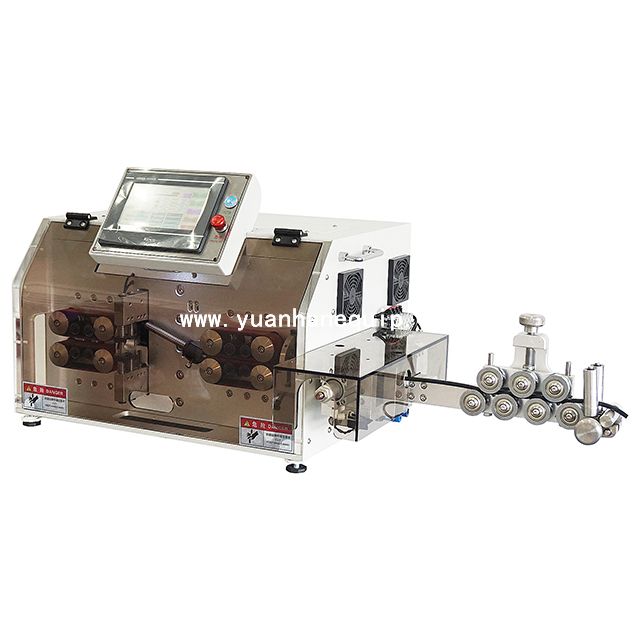

Automatic Wire Middle Stripping Machine

This is a fully automatic cable cutting and middle stripping machine. It is able to peel off insulation from single core and multi-core sheathed cables. Processing wire size: 1-30mm2.

Model:
  • YH-8030Z
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Function: cable cutting and stripping with middle section stripping feature

○ Applicable wire sizes: 1-30 square mm

○ Strip outer sheath of single conductor cables or multi-conductor cables

○ Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)

○ Belt feeding wires, no embossing and scratches

Model YH-8030Z
Display 7-inch true color touch screen
Applicable wire sizes 1-30 square mm
Cutting length 1mm-99,999.99mm
Cutting tolerance within 0.002*L (L=cutting length)
Stripping length

wire head full stripping: 1-190mm, wire head half-stripping:1-9999mm
wire tail full stripping: 1-80mm, wire tail half-stripping: 1-9999mm

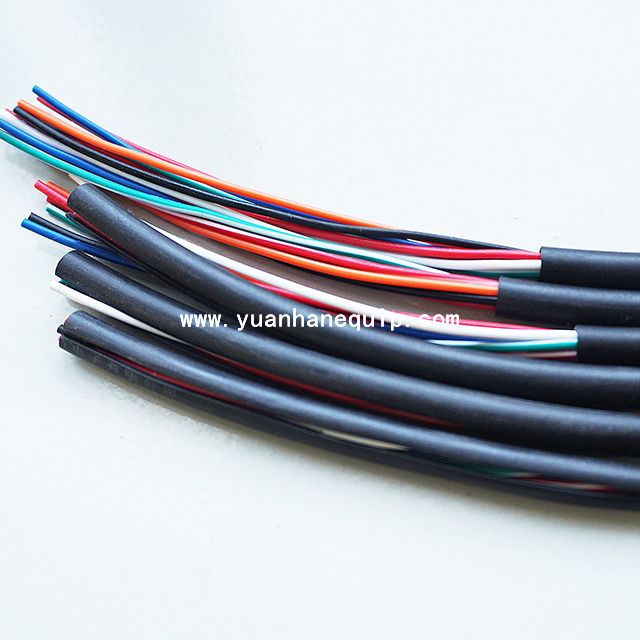

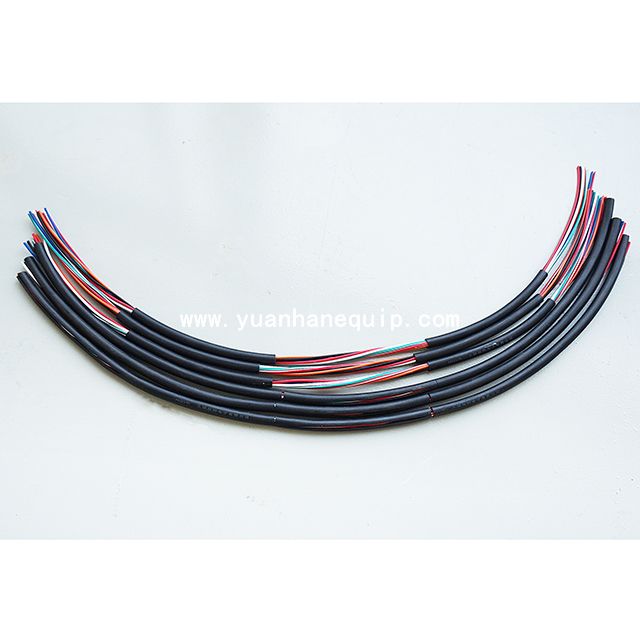

Middle stripping

Multi-section stripping, any interval, any length of stripping, up to 32 segments
Multi-section stripping, the interval of each segment is the same, the length of the stripping is the same, the number of segments is not limited

Max. diameter of guiding pipe Φ16

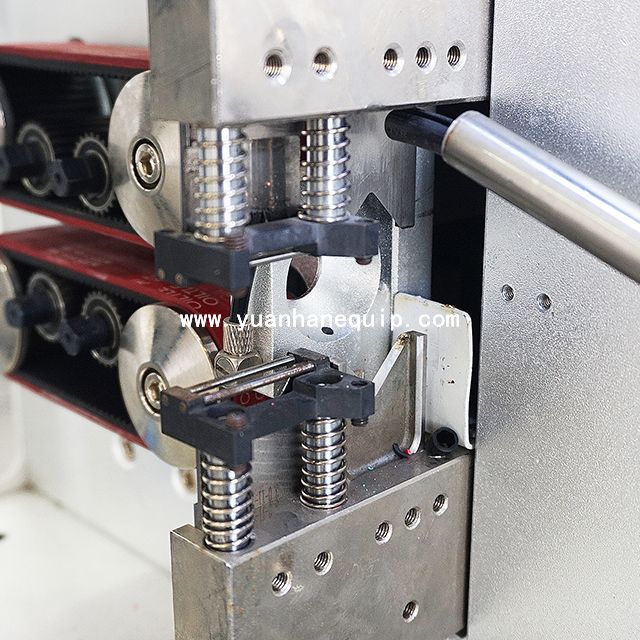

Blade material high-quality imported high-speed steel
Productivity 2,000 pcs/hour (depending on the length and size of the wire)
Drive mode 16-wheel drive (silent hybrid stepping motor, servo tool post)
Wire feeding method belt feeding, no embossing and no scratches on the cable
Remarks The machine can be customized for processing special cables, and the sample cable should be sent to us for test.
×
