Barrel Copper Tube Connector Crimping MachineBarrel Copper Tube Connector Crimping Machine

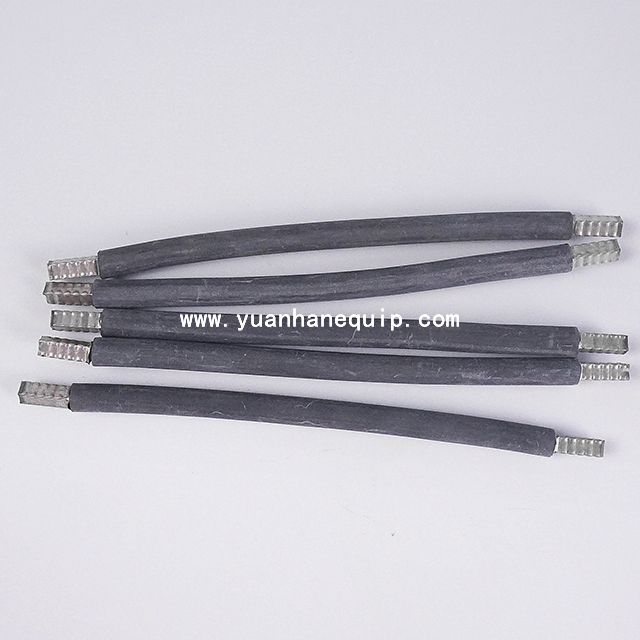

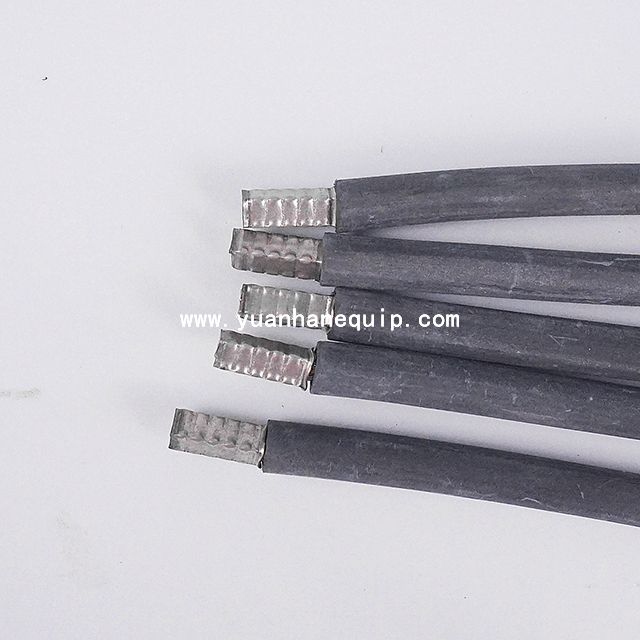

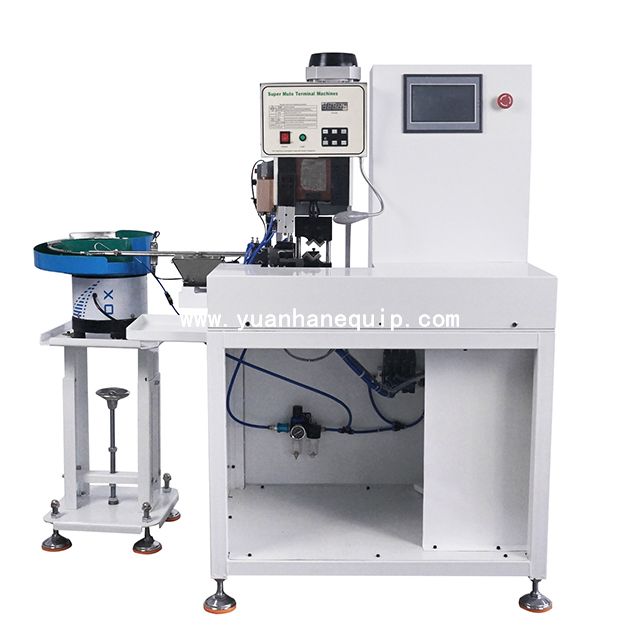

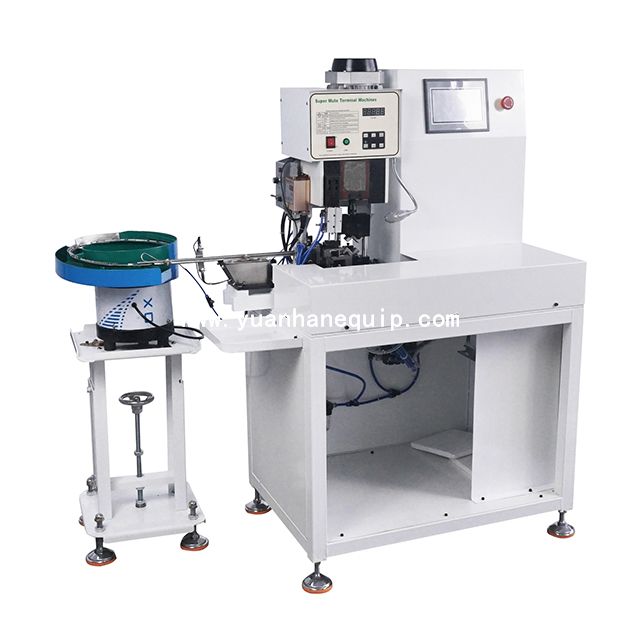

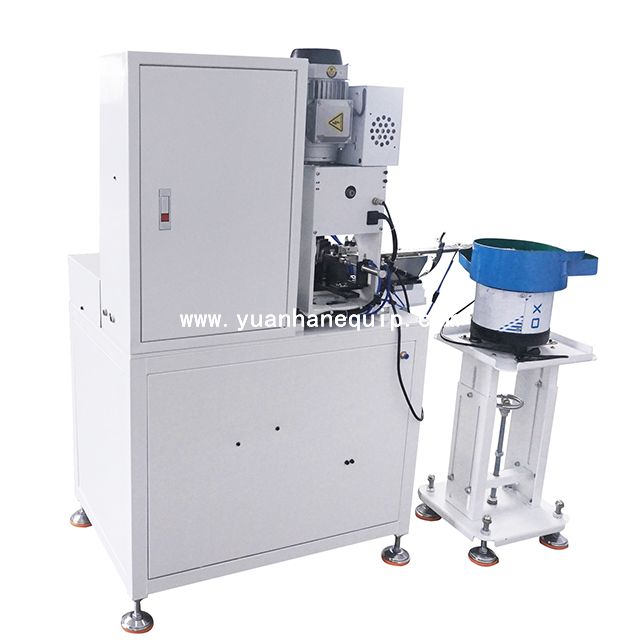

This is a semi-automatic cable connector crimping machine. It is suitable for crimping loose piece barrel copper tube connectors with vibration plate feeding. The operating speed is comparable to that of the reel terminals, saving labor and cost, and having more cost-effective advantages.

Model:
  • YH-ZDP02
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Based on the silent terminal machine, using cassette molds, easy and convenient to disassemble;

○ Microcomputer chip control, humanized program design, safe and reliable operation;

○ Replace expensive chain terminals and use more economical loose terminals;

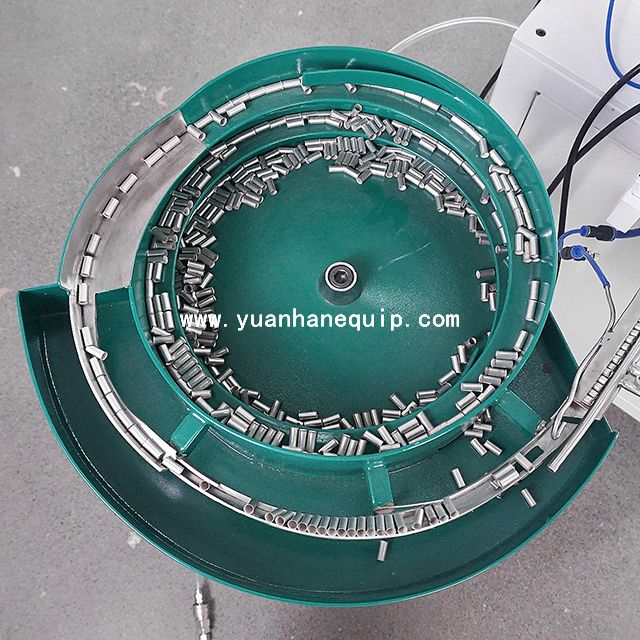

○ Centrifugal vibration feeding, frequency conversion speed regulation, precise positioning of cylinder, unified riveting standard;

○ The operating speed is comparable to that of the chain terminals, saving labor and cost, and having more cost-effective advantages;

○ When necessary, it can be used as a separate silent terminal machine, suitable for 800#, 2000# straight and horizontal applicators.

○ Manual operation part

Manually put the terminal into the vibration plate

Manually put the wire into the terminal to be crimped

○ Machine running part

Automatically arrange and feed the terminals

Automatically feed the terminal into the designated die(The feeding speed of regular terminals is 60~70 pcs per minute. The speed is 3000-4000 pcs per hour. Note: special terminals are excluded)

When ready, start the crimp switch, the pressing is completed automatically.

Model YH-ZDP02
Dimensions Conventional 500*860*1360 (mm); Special slide rail type: 500*1050*1360 (mm)
Power supply AC 220V/50Hz
Weight about 140KG-170KG
Power consumption Motor: 250W;  LED light: 220V 1W; Vibration plate: 120W
Crimping capacity 20Kn
Stroke of slider 35mm (40mm)
Crimping frequency 120 times/min
Closing height 26mm; Closing height adjustment 10mm
×
