Kunshan Yuanhan Electronic Equipment Co., Ltd.

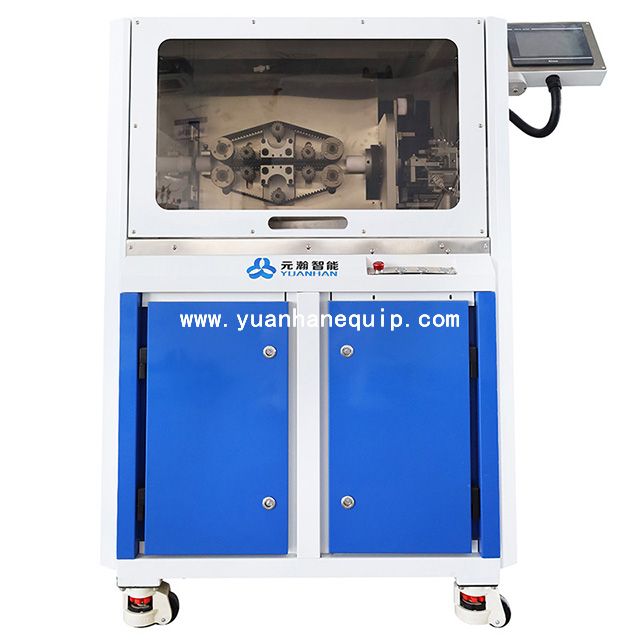

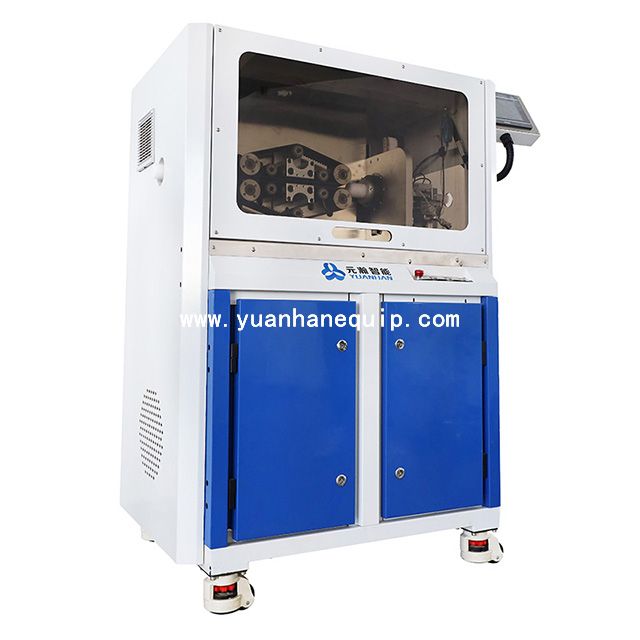

Nylon Braided Tube Cutting and Taping Machine

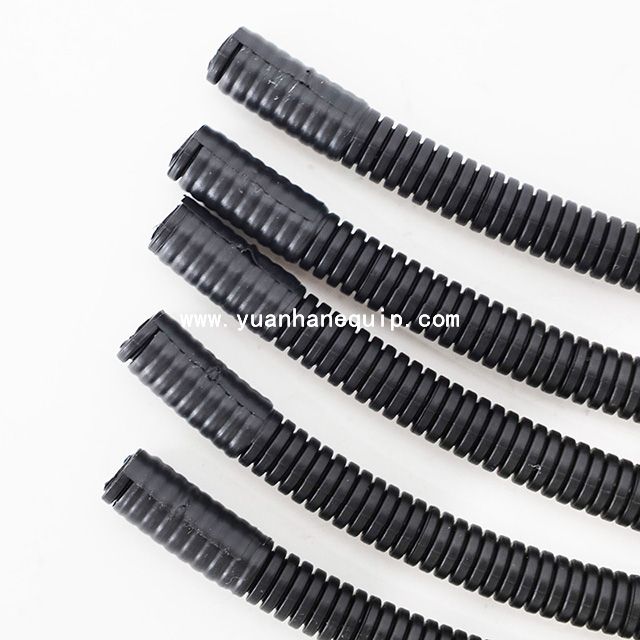

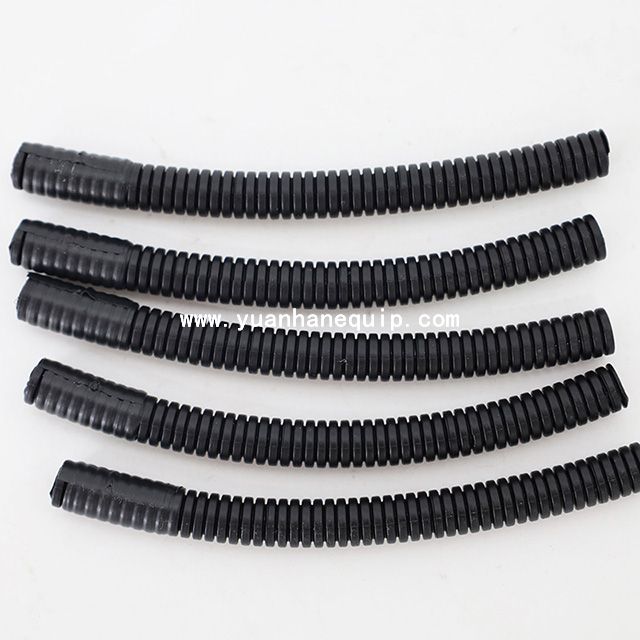

This nylon braided tube cutting and taping machine is mainly used for cutting nylon braided tube and metal braided tube. After cutting, the machine automatically wrapped the tube ends with adhesive tape to prevent loose edges.

Model:
  • YH-BW5608
Brand:
  • Yuanhan
Share to:
Features
Technical Data

○ Function: cut nylon braided tube and metal braided tube while wrapping the tube end with tape.

○ The cutting effect is flat and smooth.

Model YH-BW5608
Number of winding turns can be set
Tape width 10-20mm

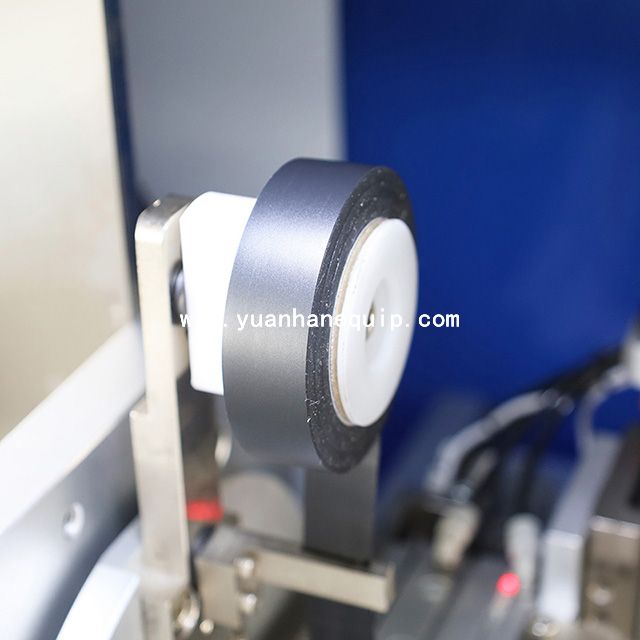

Tape type non-elastic adhesive tape
Winding diameter OD 8mm-30mm
Feeding method crawler feeding
Cutter stroke 85mm
Cutting speed 650-700 pieces/hour (length=800mm)
Tube type nylon braided tube, metal braided tube
On-line cutting support on-line cutting
Cutting effect smooth, no burr
Power 220V, 50Hz, 1.8KW
Air pressure 0.6Mpa
Dimensions L1700x W600x H1500 (without protrusions)
Weight about 380KG





×
