Cable Braids Cutting & Folding Back MachineCable Braids Cutting & Folding Back Machine

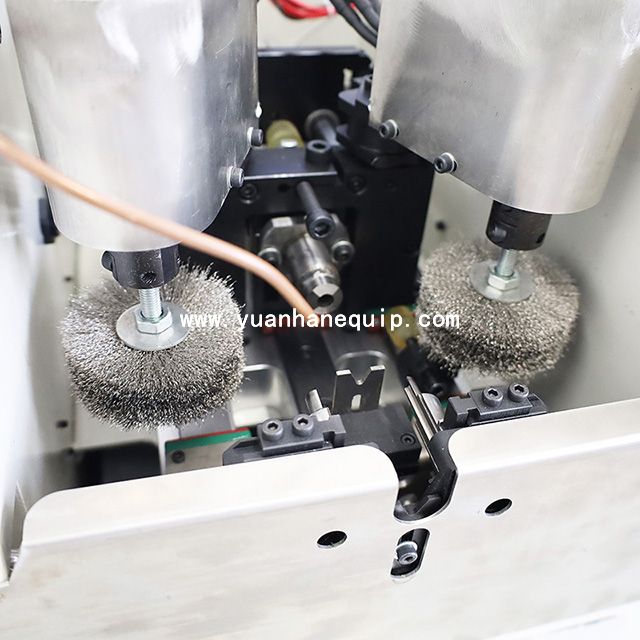

This is a semi automatic cable shield processing machine. It automatically brushes, folds back and cuts wire braids with an outer diameter (O.D.) from 3mm to 9mm.

  • YH-CTB01
  • Yuanhan
Share to:

○ Function: cable shielding brushing, cutting and folding back

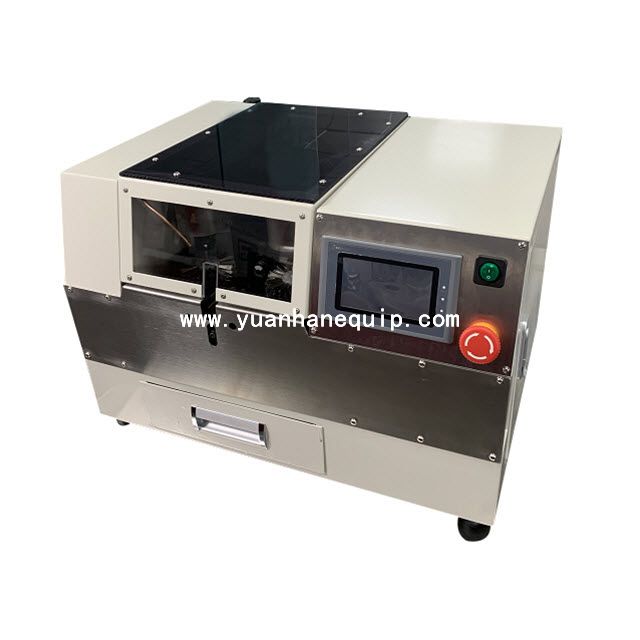

○ High-definition digital touch screen control, equipped with protective cover, easy to operate and safe

○ Suitable for mobile phone fast charging data cable, shielded network cable, signal transmission shielded cable, etc.

○ Shield folding back length: 3mm, 5mm, 6mm, 8mm

○ Foot switch control and comes with a waste receiving box to avoid the splash of waste

Model YH-CTB01
Voltage 220V 60HZ
Air pressure 0.4-0.6M Pa
Power 600W
Applicable wire diameter OD3.0-9.0mm
Stripping length 8-35mm
Shield remaining length 3-10mm
Work efficiency 700-1000pcs/hour
Dimensions L580*W500*H400mm
Consumables cuttings blades and brushes
