This copper busbar heat shrink tube heater is dedicated to insulating copper, aluminum and electrical busbars. Widely used for heat shrink tube forming on high/low voltage switchgears, distribution boxes, new energy and electrical assemblies, it replaces manual hot air guns to deliver even, efficient, standardized shrinking, boosting busbar insulation quality and production output.
|
Model:
|
|
|
Brand:
|
|
○ Dedicated automatic heating machine for copper & aluminum busbar heat shrink insulation
○ Fits high/low voltage switchgears, distribution cabinets & new energy electrical equipment
○ Replaces inefficient manual hot air gun operation
○ Uniform heating for consistent, standardized shrinking effect
○ Greatly improves busbar insulation quality & production efficiency
|
Model |

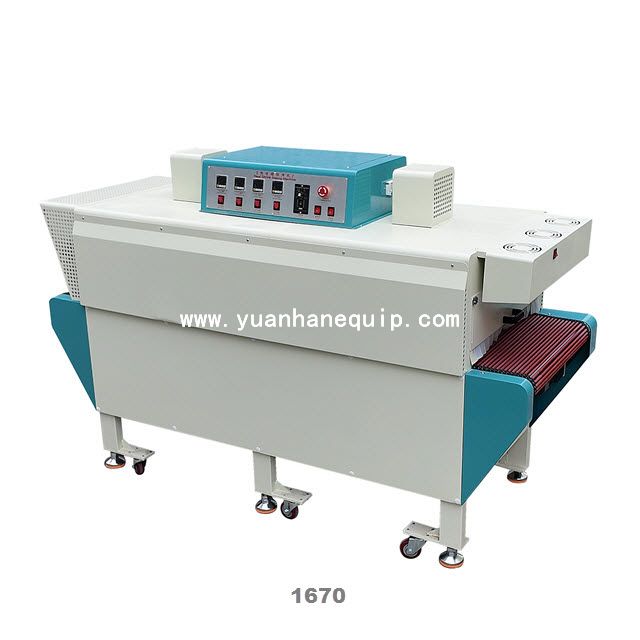

YH-1670 |

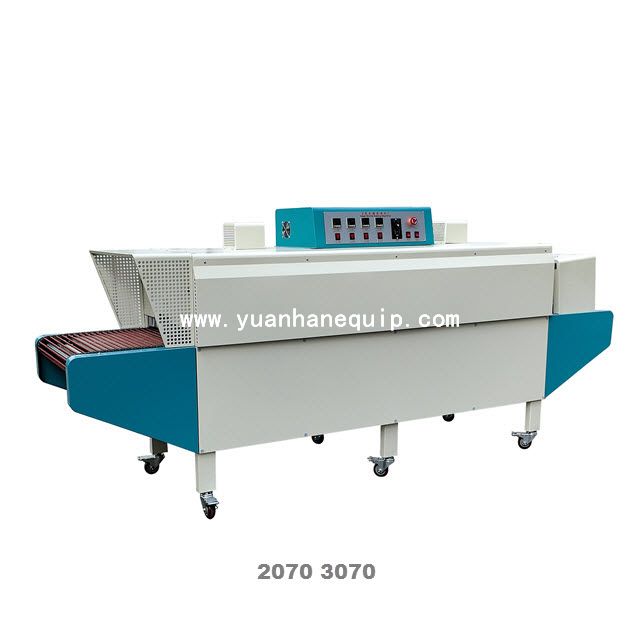

YH-2070 |
YH-3070 |
|
Dimensions |
L2000 × W700 × H1250 (mm) |
L3000 × W700 × H1250 (mm) |
L4000 × W700 × H1250 (mm) |
|
Box size |
L1600 × W700 × H330 (mm) |
L2000 × W700 × H330 (mm) |
L3000 × W700 × H330 (mm) |
|
Heating space |
L1600 × W620 × H200 (mm) |
L2000 × W620 × H200 (mm) |
L3000 × W620 × H200 (mm) |
|
Weight |
200kg |
200kg |
260kg |
|
Conveying speed |
0–6m/min |
0–6m/min |
0–6m/min |
|
Mechanical power |
22KW |
22KW |
33KW |
|
Conveying capacity |
100kg |
100kg |
100kg |
|
Material of conveyor belt |
Chain |
Chain |
Chain |
|
Heating temperature |
0–300℃ |
0–300℃ |
0–300℃ |
|
Heating method |
Dual-side heating with 4 sets of temperature controllers (2 groups) |
Dual-side heating with 4 sets of temperature controllers (2 groups) |
Dual-side heating with 6 sets of temperature controllers (3 groups) |
|
Heating tube |
Thermal Radiation Heating Tube |
Thermal Radiation Heating Tube |
Thermal Radiation Heating Tube |
|
Hot air fan |
Equipped |
Equipped |
Equipped |
|
Heat dissipation device |
Equipped |
Equipped |
Equipped |
|
Power supply |
AC 380V 50HZ |
AC 380V 50HZ |
AC 380V 50HZ |
