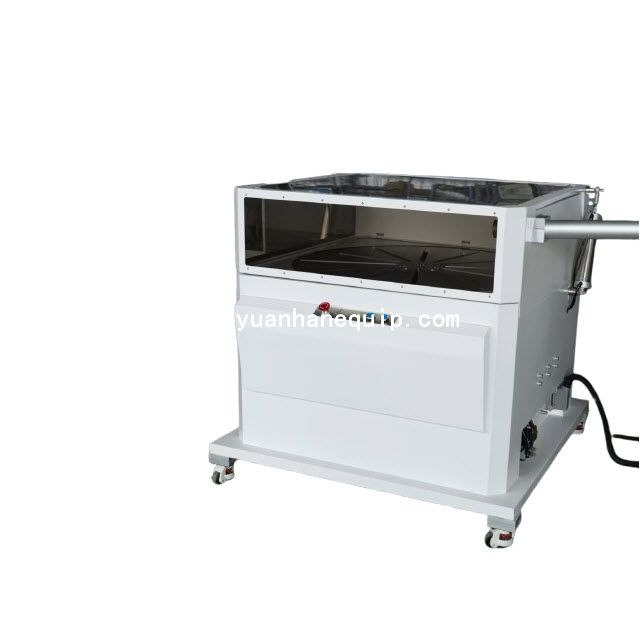

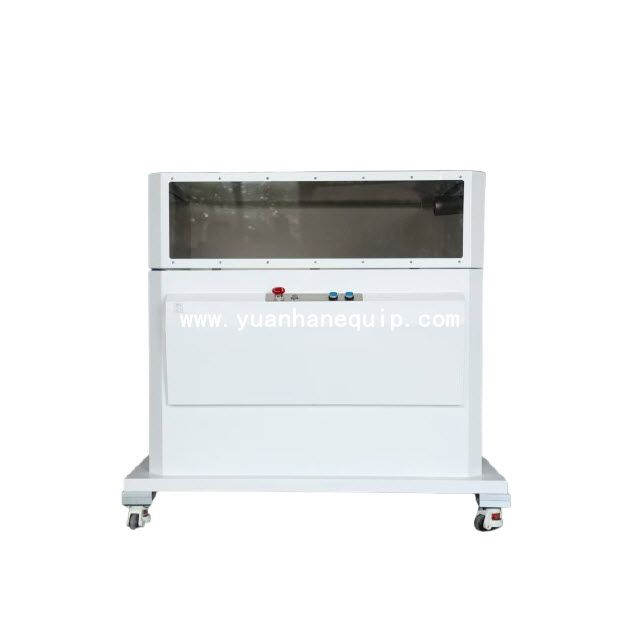

This automatic wire coiling machine can be used with our fully automatic wire cutting and stripping machine. It is suitable for winding long wires into big coils without additional collecting devices.
|
Model:
|
|
|
Brand:
|
|
○ This wire coiling machine can be used with our fully automatic wire cutting and stripping machine.
○ It is suitable for winding long wires into big coils without additional collecting devices.
○ The equipment is set to single-cycle mode and used with a foot switch.
○ Step on the foot switch once, or press the start button, the safety cover falls, and after the equipment runs once in a single cycle, the safety cover opens, and the processed and curled products are picked up manually and run again.
○ The running speed is automatically synchronized. The faster the equipment is set, the faster the winding mechanism follows. Different ratios can be set digitally to achieve the purpose of adjusting the winding size.
| Model | YH-SXJ1001 |
| Function | wire take - up and coiling |
| Control method | host-following control |
| Diameter of take-up reel | 1000mm |
| Coiling diameter | 200 - 960mm |
| Wire reel load - bearing | 30KG |
| Coiling speed | 2.5M/s |
| Driving method | servo motor |
| Number of take-up reels | One |
| Working method | single cycle |
| Take-up completion detection | None |
| Safety device | pneumatic safety door |
| Overall dimensions | 1061*1061*1015 |
