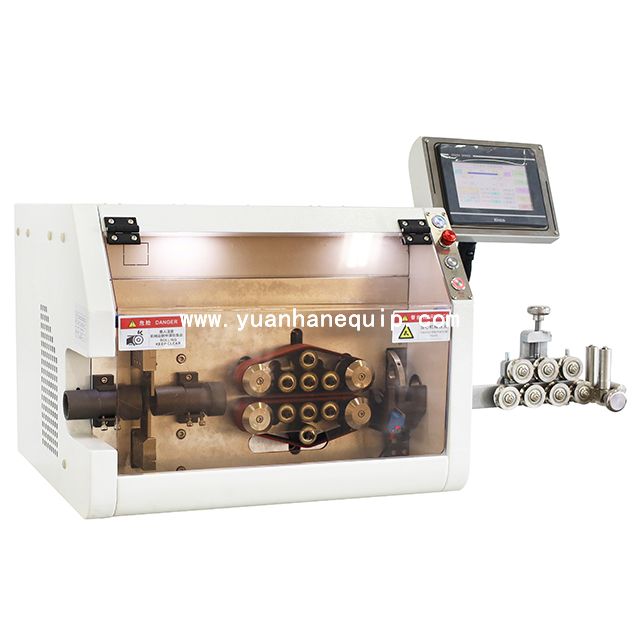

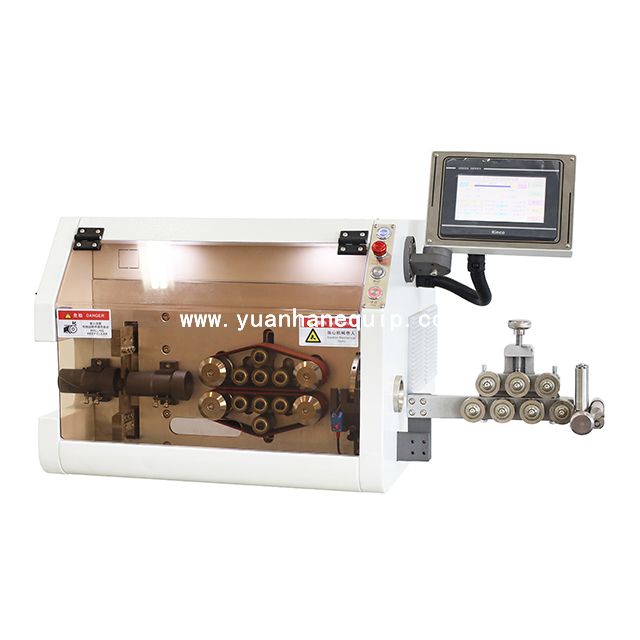

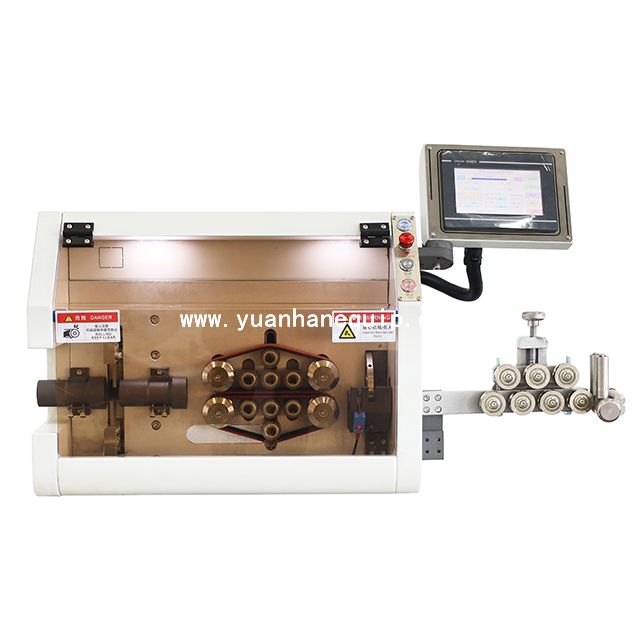

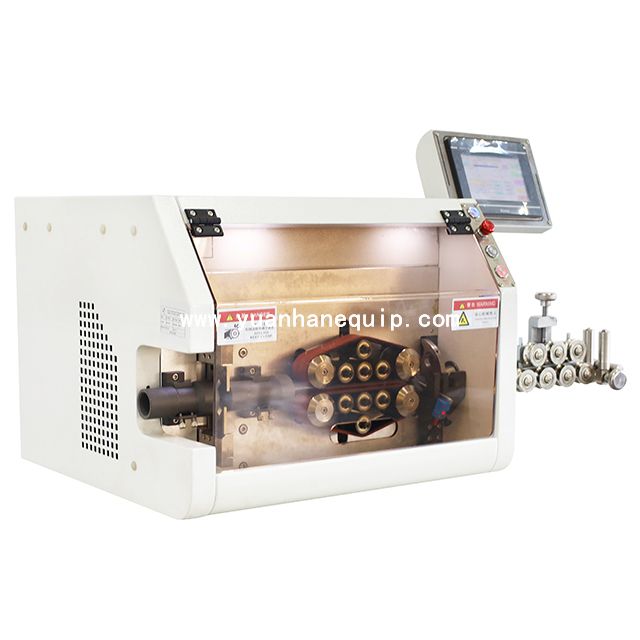

Automatic Cable Cutting Machine

Our automatic wire and cable cutters are programmable, easy to use, adjustable and portable, giving you a fast return on your investment.

Model:	YH-150Q
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

○ Applicable wire sizes: up to 150mm²

○ Belt feeding cables, no embossing and scratches

○ Uses specific axial positioning and advanced tool holders, improving accuracy and production rate

○ Optional auxiliary equipment: automatic wire feeder, wire collector, etc.

○ Full servo motor equipment, upgraded configuration.

Model	YH-150Q
Cable size	Up to 150mm²
Cutting Length	1-99999.99mm
Cutting tolerance	≤(0.002*L) mm L=cutting length
Guiding pipe diameter	Φ33mm(maximum)
Production rate	1800pcs/h (based on wire size)
Display screen	7 inch touch screen
Drive method	32 wheels drive
Wire feed method	Belt feeding wire, no indentation on cable.
Power supply	110/220VAC, 50/60Hz
Power	6900W
Dimensions	80x70x62cm
Full load current	30A (min.18A allowed)
Air pressure	0.5-0.8 Mpa (Clean air source)
Weight	147kg
