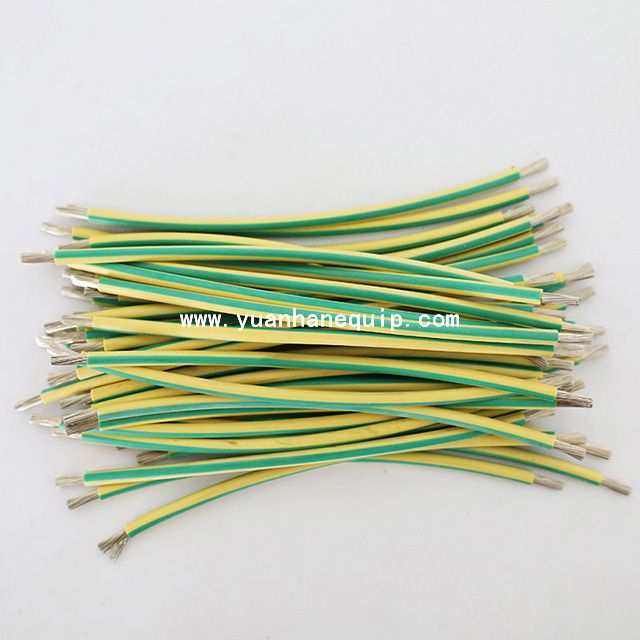

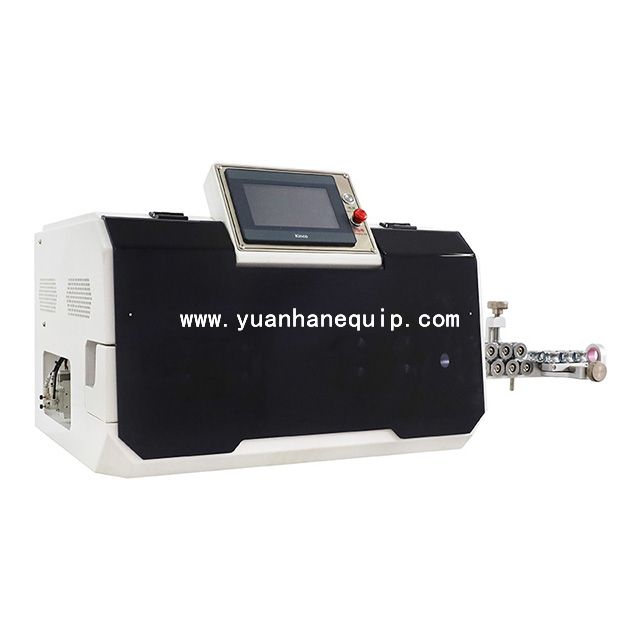

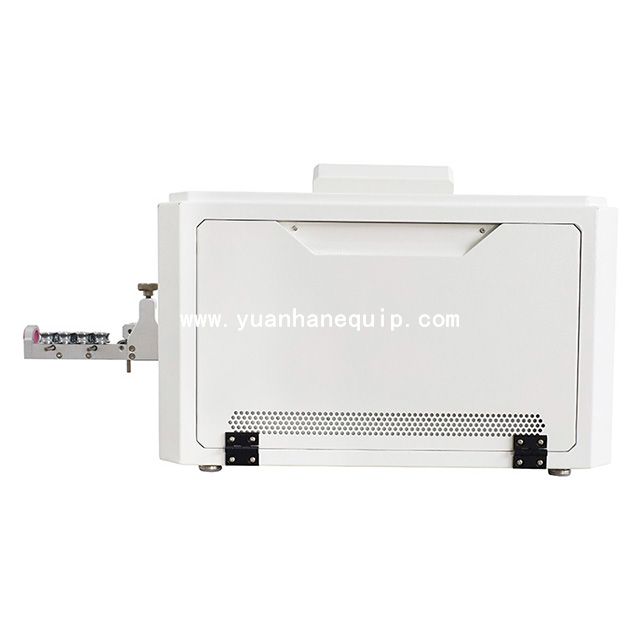

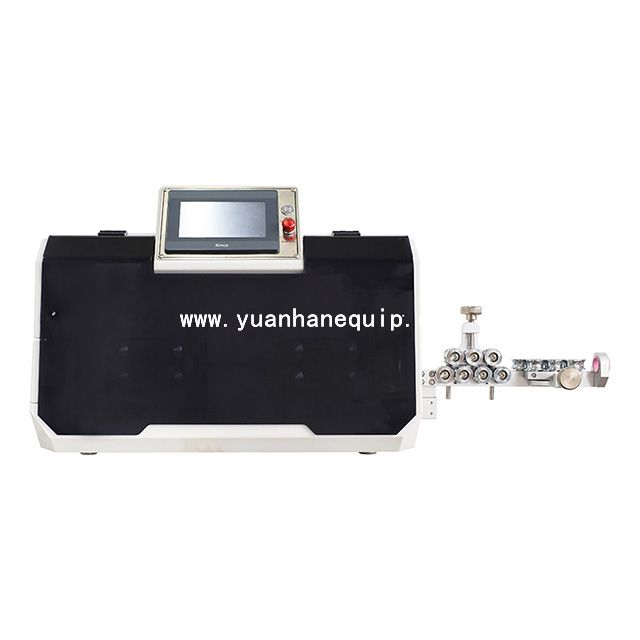

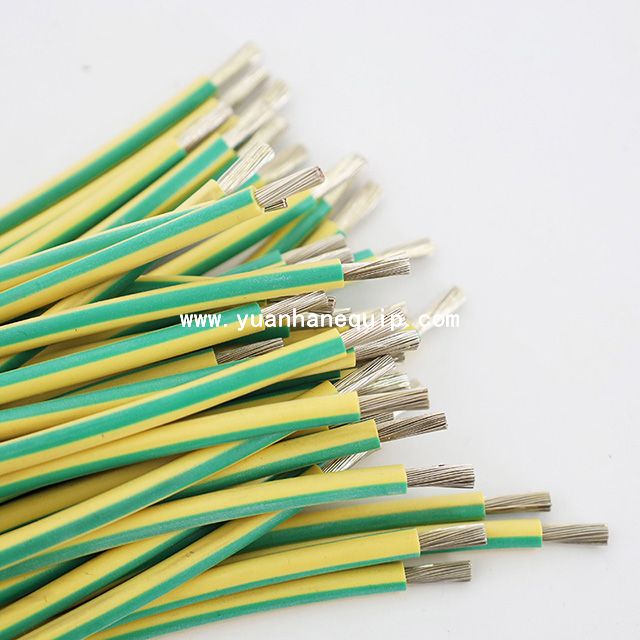

With its advanced automation capabilities, this cutting and stripping machine eliminates the need for manual intervention, streamlining your production process and maximizing productivity. Its cutting-edge technology guarantees consistent and precise cuts, while the stripping function effortlessly removes insulation materials, leaving you with perfectly prepared cables.
Model:
|
|
Brand:
|
|
○ Function: cable cutting and stripping
○ Optional: MES system, Internet of Things system, fixed-point coding function, middle stripping function, external auxiliary equipment alarm;
○ User-friendly system with intuitive operation via 7” color touchscreen;
○ Modular interface, easy to link accessories and peripheral equipment;
○ Modular design, can be upgraded in the future;
○ Various accessory options to customize the system. Special cable processing, non-standard customization.
Model | YH-603 |
Display | 7-inch man-machine interface |
Function | cable cutting, outer jacket and inner conductor stripping |
Wire type | single core wire, multi-core cable, sheathed cable, PVC cable, etc. |
Processing range | 0.75 - 30 mm2 |
Cutting length | 1mm-999999.99mm |
Cutting tolerance | within 0.002*L (L=cutting length) |
Stripping length |
side A full stripping: 1-200mm, side A half stripping: 1-1500mm side B full stripping: 1-100mm, side B half stripping: 1-300mm |
Max. diameter of guiding pipe | Φ18 |
Tool material | high speed steel |
Productivity | 3500 PCS/hour, (sheathed wire 900pcs/H) according to the length and size of the wire |
Drive mode | 16-wheel drive (feeding stepper motor, tool post servo motor); servo motor feeding optional |
Wire feeding method | belt feeding, no embossing and no scratches on the cable |
Lifting operation mode | digital adjustment of the height of the pinch roller |
Power supply | AC220V 50/60Hz; 110V 50/60Hz optional |
Air source | 0.5Mpa clean air source |
Dimensions | 68*48*55cm (L*W*H) |
Weight | 95kg |
