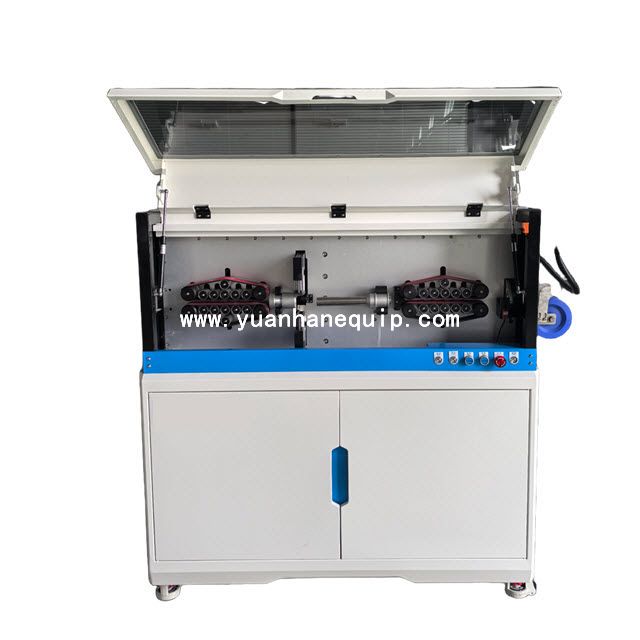

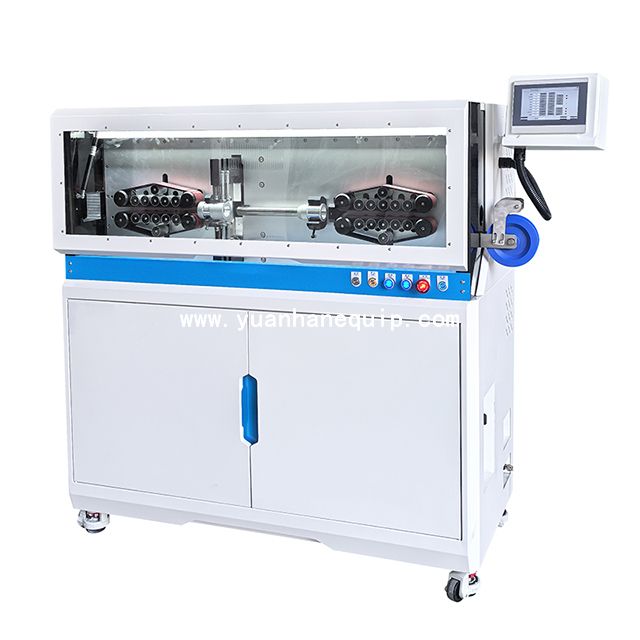

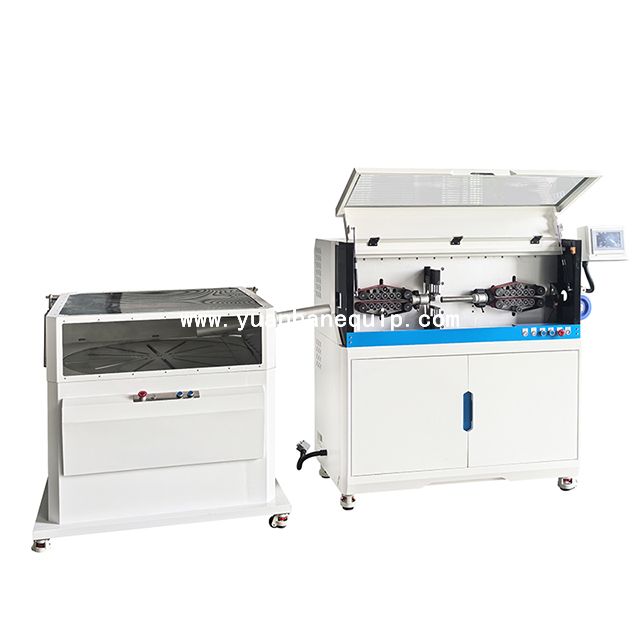

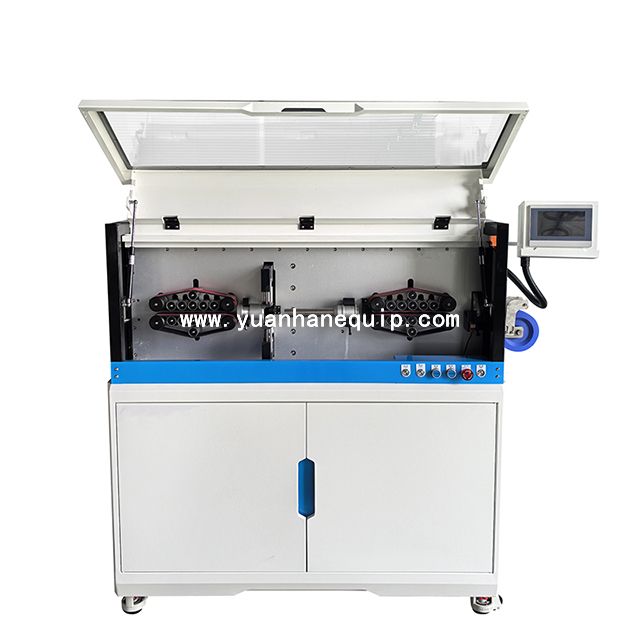

Our coaxial cable and new energy cable cutting and stripping machine is equipped with advanced technology to ensure accurate cutting and stripping of coaxial cables and new energy cables. Its high-speed performance and user-friendly interface make it the perfect solution for industries requiring reliable cable processing.
|
Model:
|
|
|
Brand:
|
|
○ The coaxial cable and new energy cable cutting and stripping machine boasts a range of features, including customizable cutting lengths, precise stripping depths, and automatic wire feeding. Its robust construction and durable components guarantee long-lasting performance, even in demanding production environments.
○ With safety features such as emergency stop buttons and overload protection, this machine prioritizes operator safety while maximizing productivity. Its compact design and easy-to-use controls make it suitable for both small-scale operations and large-scale manufacturing facilities.
○ Optional: MES system, Internet of Things system, fixed-point coding function, middle stripping function, external auxiliary equipment alarm.
|
Model |
YH-630L |
YH-630LH |
|
Display Mode |
Touch human-machine interface |
|
|
Function |
Single-core wire, multi-core cable, shielded cable, fully automatic fixed-length cutting and stripping |
1. Single-core wire, multi-core cable, shielded cable, fully automatic fixed-length cutting and stripping 2. Stripping the insulation of core wires |
|
Wire Type |
Single-core wire, multi-core cable, shielded cable, etc. |
|
|
Processing range |
10--300mm² |
|
|
Cutting length |
10mm-999999.99mm |
|
|
Minimum stripping length |
Total length - front stripping length - rear stripping length > 150mm |
|
|
Cutting tolerance |
Within 0.002*L (L=cutting length) |
|
|
Stripping length |
Front stripping: 1 - 300mm (all wire ends removed) |
|
|
Rear stripping: 1 - 300mm (all wire tails are stripped) |
||
|
Maximum diameter of guiding pipe |
Φ38 |
|
|
Lifting wheel method |
Stepper motor lifting wheel |
|
|
Swing guiding pipe method |
Motor swing guide |
|
|
Tool material |
High quality imported high speed steel |
|
|
Productivity (times/hour) |
1000PCS/hour (depending on the length and size of the line) |
|
|
Drive mode |
Wire feeding: 28 wheels, each group is independently driven Tool holder: servo plus screw |
Wire feeding: 28 wheels, each group is independently driven Tool holder: double servo plus double screw |
|
Wire feeding method |
Belt feeding, no embossing or scratching on the cable. (With stripping and pressurizing function) |
|
|
Lifting operation mode |
Digitally adjustable pressure roller height |
|
|
Power supply |
AC220V 50/60Hz; Roptional 110V 50/60Hz |
|
|
Gas source |
0.5-0.8Mpa clean air source |
|
|
Dimensions (length*width*height) |
1220*650*1400 |
|
|
Net weight |
350KG |
380KG |
