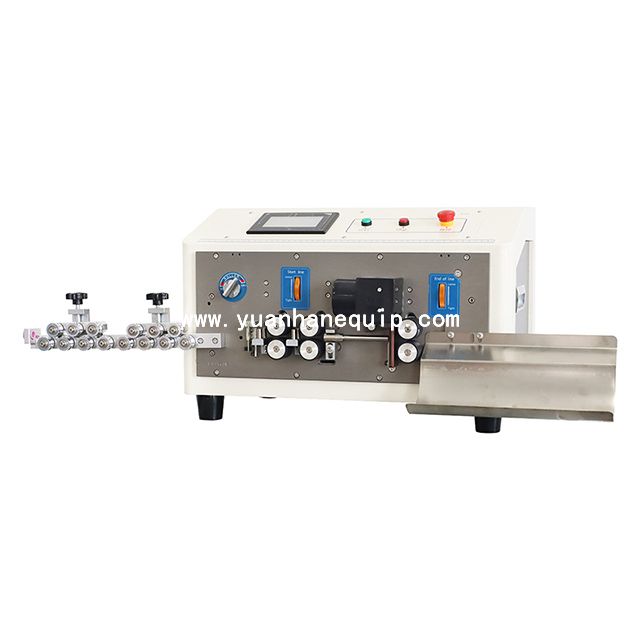

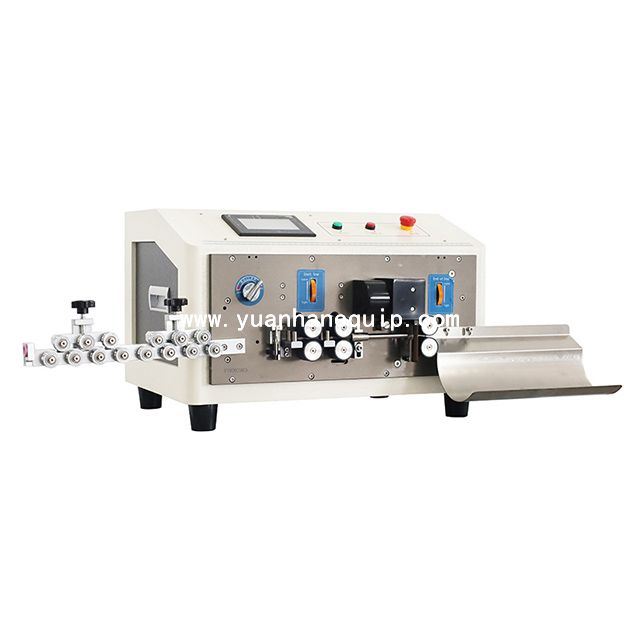

Fully Automatic Cable Cutting and Stripping Machine

This fully automatic cable cutting and sheath stripping machine is able to peel outer skin of single core and multi-core sheathed cables.

Model:	YH-B906
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

○ Applicable wire types: multi-strand copper wire, sheathed cable, etc.
○ Display mode: 4.3 inch LCD touch screen

Model	YH-B906

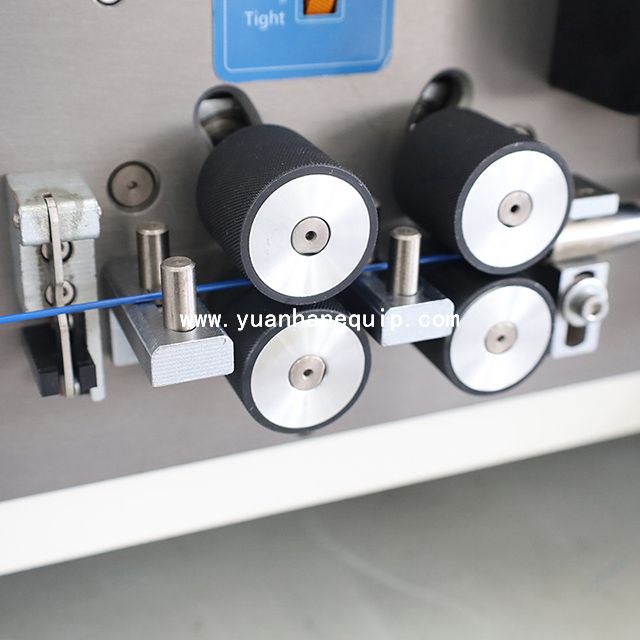

Drive mode	6-wheel drive, synchronous belt double pressure wire feeding
Applicable wire size	BVR φ1-12mm
Blade material	imported high-speed steel
Max. guiding pipe diameter	ø12mm
Working voltage	220V/50Hz
Cutting length	0-100 meters
Rated power	880W
Stripping length	wire head: 0.1-250mm, wire tail: 0.1-70mm
Weight	36.5 kg
Cutting tolerance	±(0.002mm*L) (L = cutting length)
Stripping speed	1,000-2,000pcs/H
