1-50mm2 Cable Cutting and Stripping Machine
1-50mm2 Cable Cutting and Stripping Machine
1-50mm2 Cable Cutting and Stripping Machine
1-50mm2 Cable Cutting and Stripping Machine
1-50mm2 Cable Cutting and Stripping Machine

1-50mm2 Cable Cutting and Stripping Machine1-50mm2 Cable Cutting and Stripping Machine

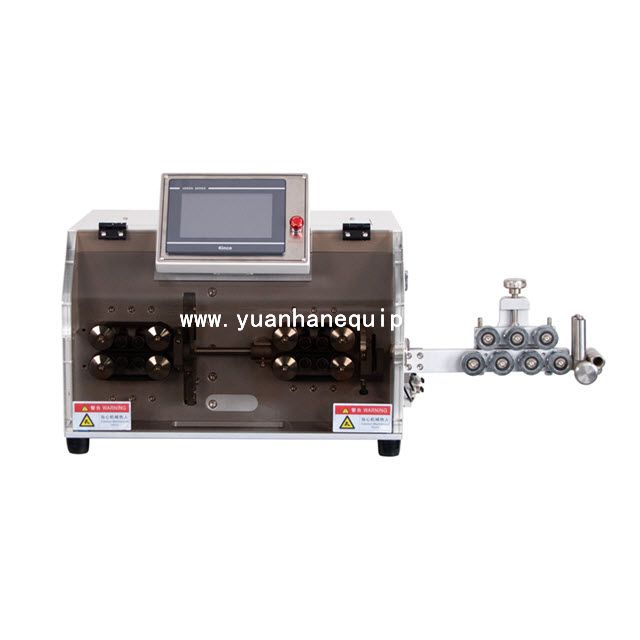

This fully automatic cable cutting and stripping machine is able to peel off outer skin of single core and multi-core sheathed cables. The applicable wire sizes range from 1-50 square mm.

Model:
  • YH-8050
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

○ Function: cutting and stripping

○ Applicable wire sizes: 1-50mm2

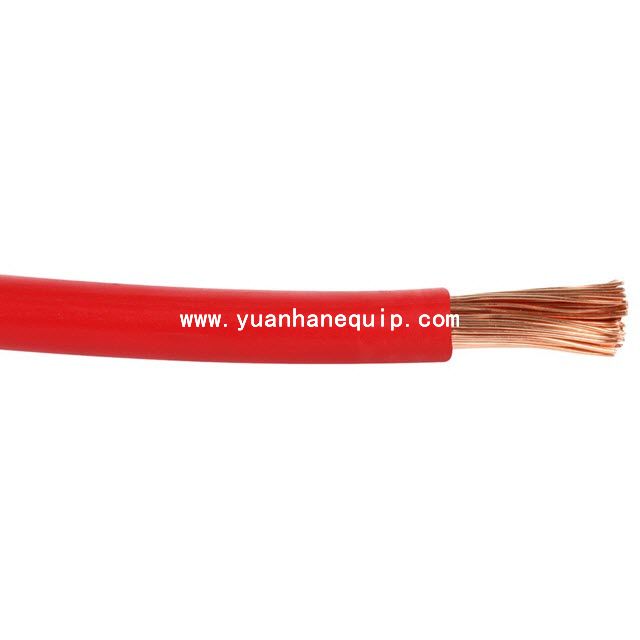

○ Strip outer sheath of single conductor cables or multi-conductor cables

○ Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)

○ Belt feeding wires, no embossing and scratches

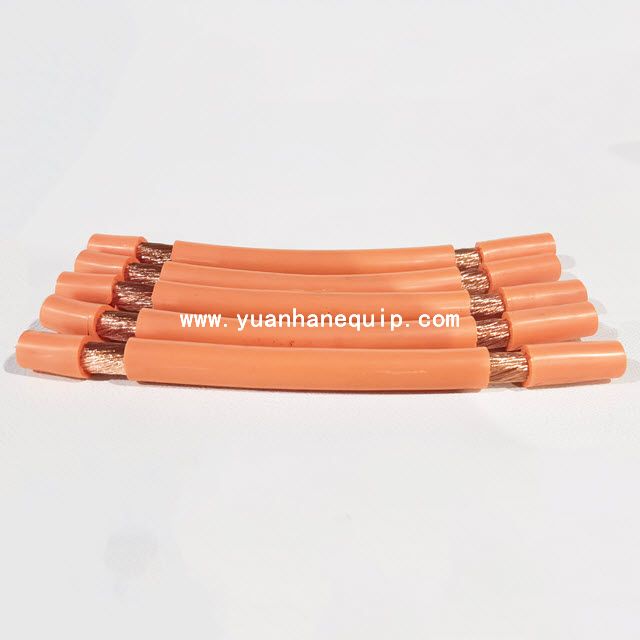

○ Head end full stripping: 1-190mm, head end semi-stripping: 1-1500mm

○ Tail end full stripping 1-80mm, tail end semi-stripping: 1-500mm

Model YH-8050
Display 7-inch true color touch screen
Function automatic cutting and stripping
Wire type sheathed cables, PVC cables, etc.
Wire range 1-50mm2
Cutting length 1mm-99999.99mm
Cutting tolerance within 0.002*L (L=cutting length)
Stripping length

Head end full stripping: 1-190mm, head end semi-stripping: 1-1500mm

Tail end full stripping 1-80mm, tail end semi-stripping: 1-500mm

Guiding pipe Φ20 (max. diameter)
Tool material high quality imported high speed steel
Productivity 2000 PCS/hour (depending on the length and size of the wire)
Drive mode 16-wheel drive (silent hybrid stepping motor, servo tool holder)
Wire feeding method belt feeding, no embossing and no scratches on the cable
Remarks The machine can be customized for processing special cables, and the sample cable should be sent to us for test.
