Our active pay-off stand is designed to efficiently feed cable during wire processing operations. This stand features a sturdy construction and adjustable height to accommodate various spool sizes. The active cable feeder ensures a smooth and continuous wire feeding process, reducing downtime and increasing productivity.
|
Model:
|
|
|
Brand:
|
|

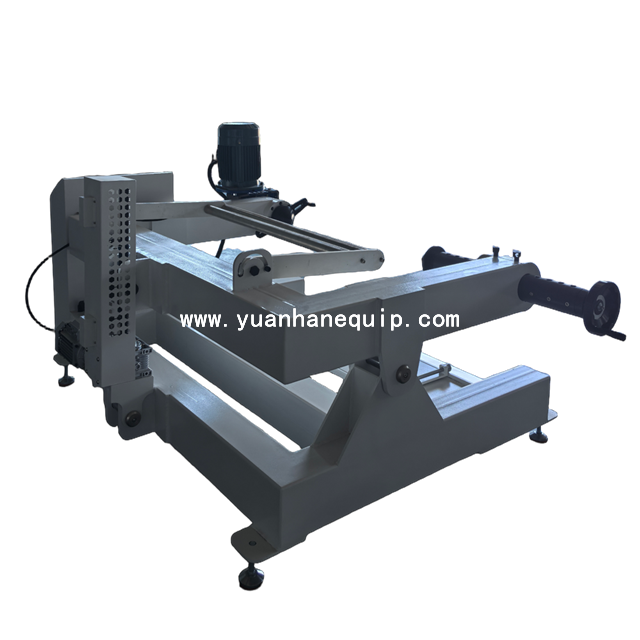

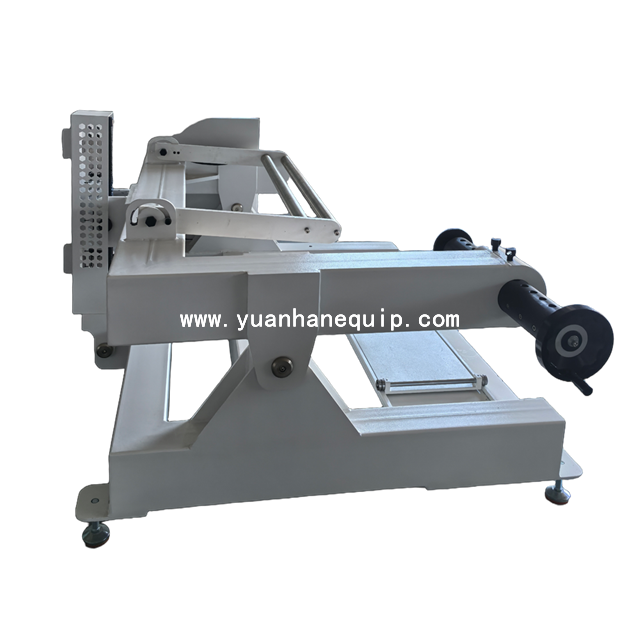

Active pay-off machine YH-F1100
○ Main frame material : Made of high-quality carbon steel, sheet metal bending and welding , with a firm structure and beautiful appearance.
○ Pay-off power: 5 kw domestic brand reduction motor with vector inverter, inverter controls pay-off speed , maximum pay-off speed is 200 m/min, maximum wire diameter is 40 mm .
○ Cable reel lifting: electric lifting .
○ Applicable wire drum range : diameter 400-2000 mm ( customers need to provide specific wire drum size )
Outer diameter of wire drum ( )*outer width ( )
○ Reel width : 500-1100 mm.
○ The maximum weight of the pay-off reel that can be loaded is 2500Kg .
○ Induction method: The inverter has stepless speed regulation, which is automatically adjusted according to the pull-up height of the storage wheel, without manual intervention.

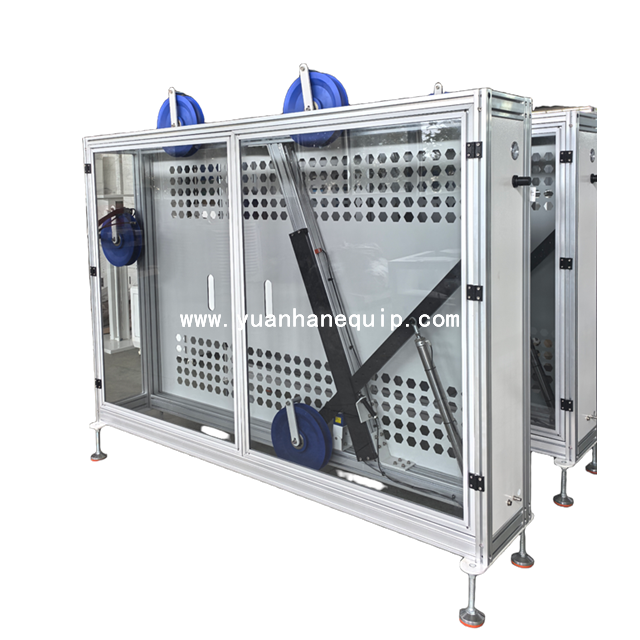

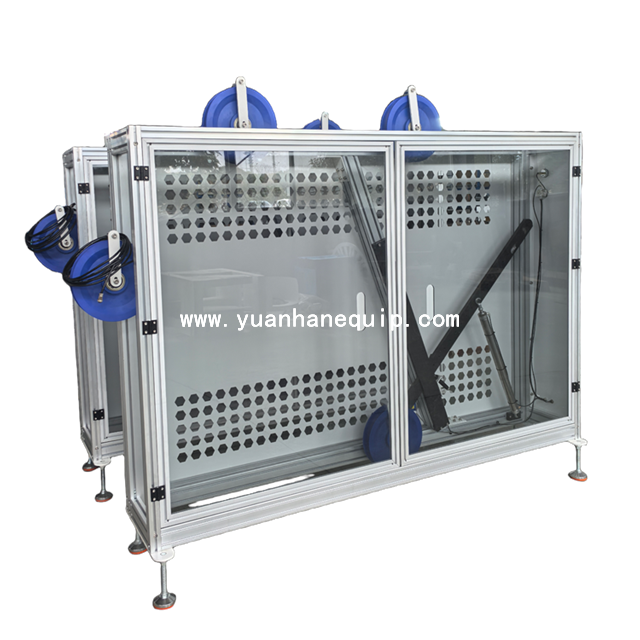

Closed wire storage machine YH-FC2000
○ Tension wheel: The tension wheel is divided into an upper fixed wheel group and a lower moving wheel group. The diameter of the tension wheel is 300 mm .
○ Speed feedback: When the computer wire stripping machine is working, the tension wheel moves accordingly, and the potentiometer is driven to rotate by pulling the wire. The potentiometer will feedback the signal to the inverter to control the speed of the pay-off motor, thereby controlling the pay-off speed to be synchronized with the computer wire stripping machine ( Tip: When the host and pay-off machine are used together, the online signal line needs to be installed ) .
○Tension adjustment: Adjust the cylinder pressure to adjust the tension .
Note:
Three-phase five-wire power supply 380V±10, 50/60Hz.
The random power cord is: three-phase five-wire 2.5 meters long.
|
Model |
YH-F1100/YH-FC2000 |
|
Drive mode |
Three-phase motor + reducer |
|
Rated speed |
1450 |
|
Maximum speed |
2200 |
|
Outer diameter of wire drum |
600-1500 |
|
Through hole diameter |
60-140 |
|
Reel Width/ Height |
1100/1200 |
|
Installation |
Double clamp top |
|
Wire Type |
Wooden or plastic cylinder |
|
Placement |
Clamp top |
|
Speed mode |
Adaptive stepless speed regulation |
|
Maximum load |
2500Kg |
|
Motor power |
5KW |
|
Maximum diameter |
50mm |
|
Dimensions |
2250*1900*1400 |
|
Packing size |
2400*2000*1200 |
