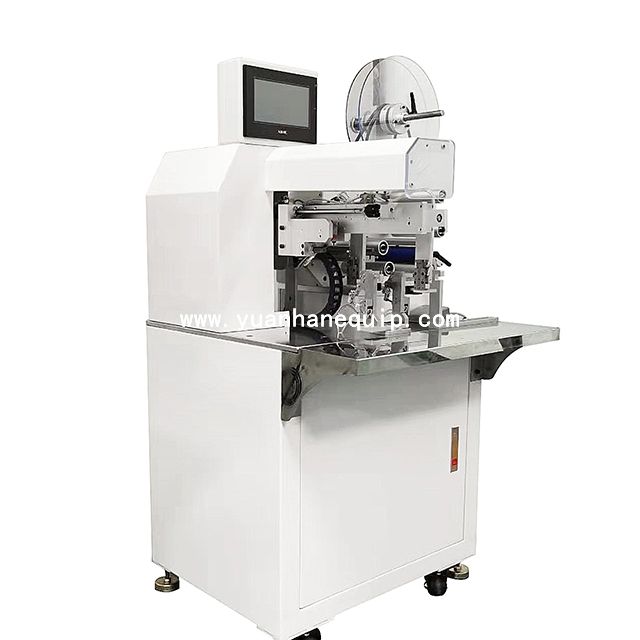

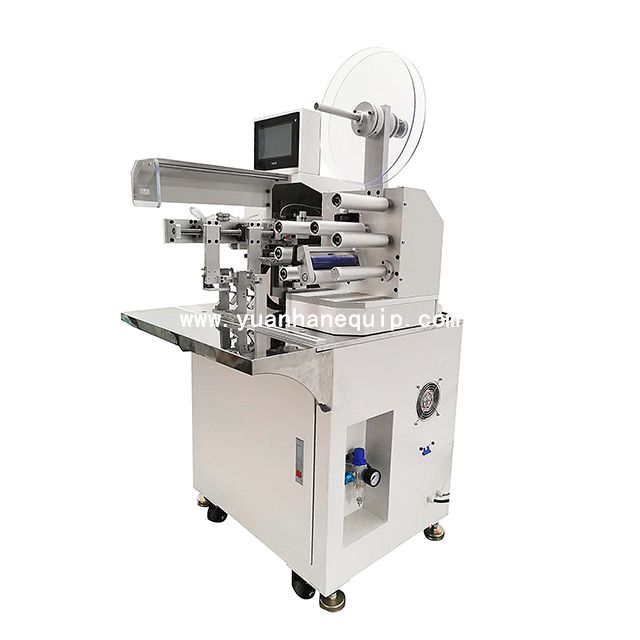

Cable Half-folding Labeling Machine

This is a high-precision flag label applicator machine, which perfectly solves the problem that large-size labels and some special material labels are prone to bubbles, and is suitable for customers who have strict requirements on labeling operations.

Model:
  • YH-ZDTB
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ It can be connected to the automatic production line, add online code scanning, CCD visual inspection, ERP/MES system, etc.

○ Wide range of applications, applicable to wire and cable, tubular and long strip products of different specifications.

○ The labeling efficiency is high, and the material can be automatically cut, saving several times of labor.

○ The labeling precision is high, and the error can be controlled within 0.2mm.

○ Labels of different shapes and sizes can be easily and neatly folded in half.

○ The machine comes with an online deviation correction system, which can correct the deviation of the label in real time to ensure the labeling accuracy.

Model YH-ZDTB
Wire diameter >0.1mm
Applicable labels

length:5-130mm

width:5-50mm

Labeling accuracy about ±0.2mm
Production capacity about 1000-1300 pieces/hour
Voltage 220V/110V
Frequency 50HZ/60HZ
Air pressure 0.4-0.6Mpa
Power 650W
Weight 160KG
Machine size 730L*650W*1350H (mm)







×
