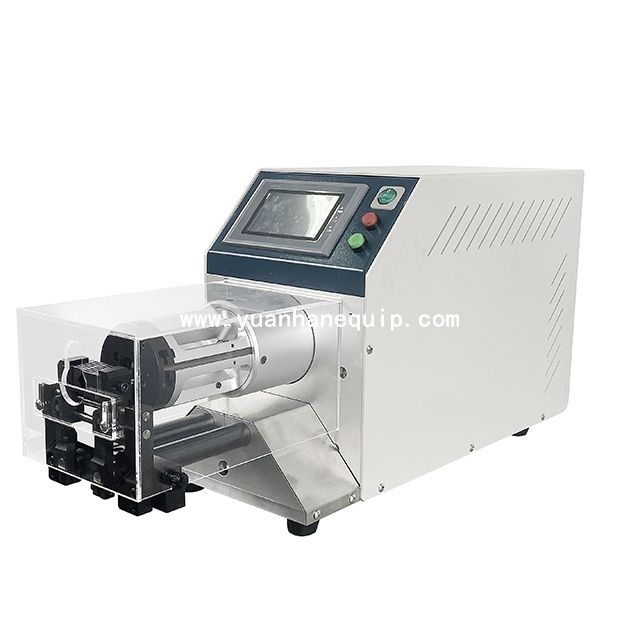

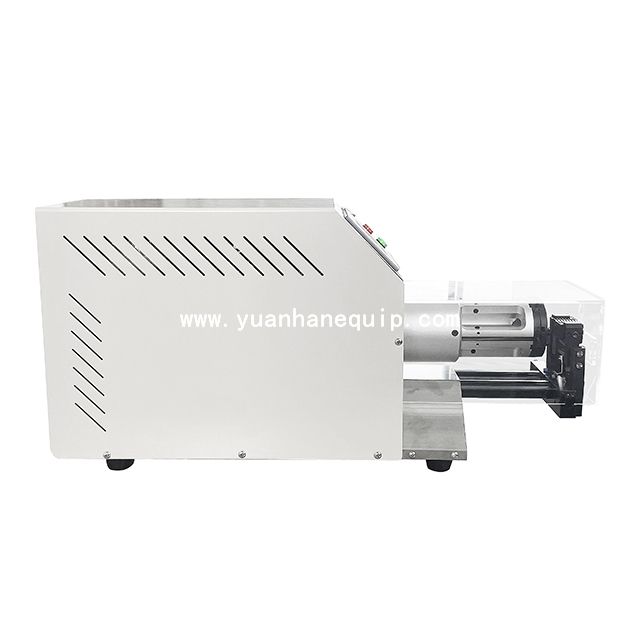

This semi-automatic coaxial wire stripping machine can strip up to 9 layers, and the maximum processing cable diameter is 18mm. The blade adopts imported Swiss tungsten steel, and the precision of the cutting is ensured by 15 high-precision grinding processes with a knife edge finish of 0.0005 mm.
|
Model:
|
|
|
Brand:
|
|
○This semi-automatic coaxial wire stripping machine can strip up to 9 layers
○The color touch screen control system makes it easy to set up various functions, and can save 50 sets of data
○Three working modes: automatic peeling, manual peeling, and foot switch operation peeling
○The transmission is driven by Japanese NSK ball bearings and wire rods to keep the motion accuracy within 0.08 mm
○The host control system adopts Japan OMRON high-precision PLC multi-point control system, and the performance is more stable

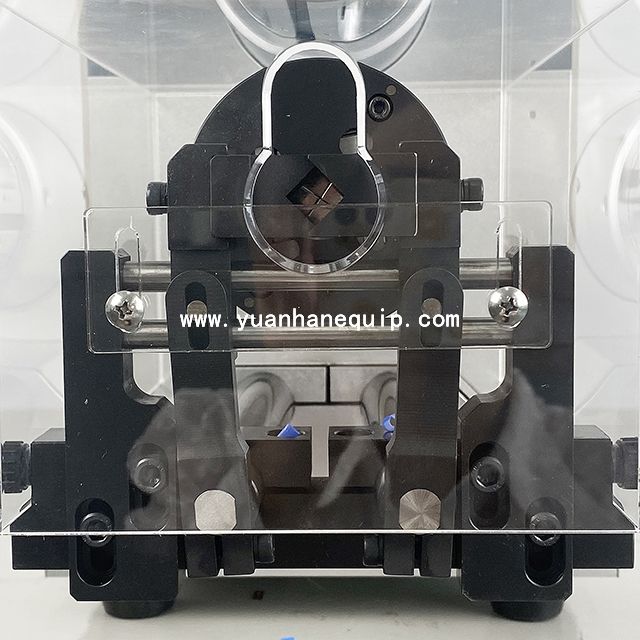

○The coaxial cable stripping machine uses a specific concentric positioning device, so that the user does not need to retrieve the center when changing the tool
○The blade adopts imported Swiss tungsten steel, and the precision of the cutting is ensured by 15 high-precision grinding processes with a knife edge finish of 0.0005 mm
| Model | YH-8608 |
| Display Mode | Touch Screen |

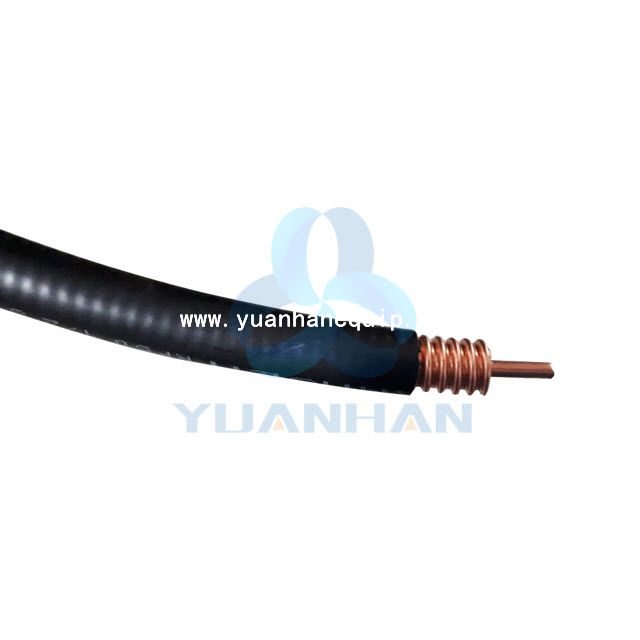

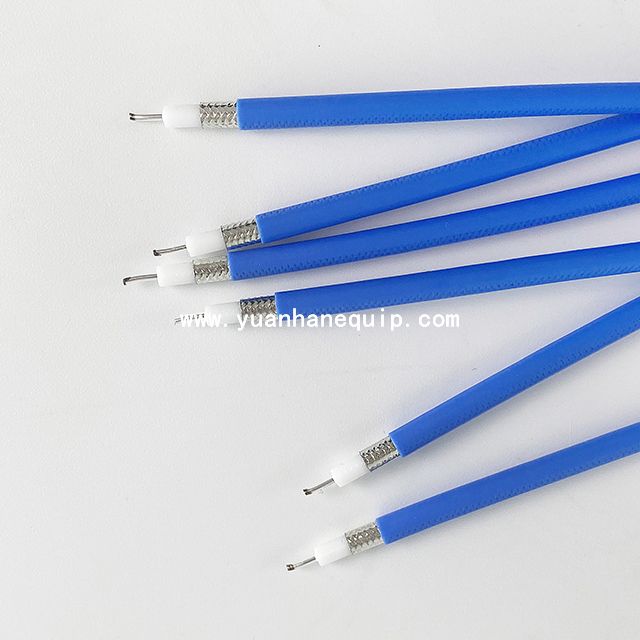

| Applicable Wire | Coaxial Cable, Corrugated Pipe Cable, New Energy Cable |
| Display Interface | Chinese-English LCD |
| Maximum Stripping Length | 0-90mm |
| Cutting Wire Diameter Range | 1.5-18mm |
| Stripping Length Setting Unit | 0.01mm |
| Cutting Depth Setting Unit | 0.01mm |
| Maximum Stripping Layers | 9 Layers |
| Stripping Method | 4-piece Rotary Blade |
| Driving Method | Motor & Ball Screw Drive |
| Working Power Supply | AC220V/110V 50/60HZ |
| Power | 600W |
| Overall Dimensions | 720*230*350mm |
| Weight | 42kg |
| Production Efficiency | 400-800 Pcs/h (Depends on the Wire Type) |
| Blade Material | Imported Tungsten Steel |
| Working Environment | -5 to 45 Degrees Celsius, Dry and Vibration-free Workbench Surface |
| Storage Capacity | 99 Sets of Processing Parameter Data |
