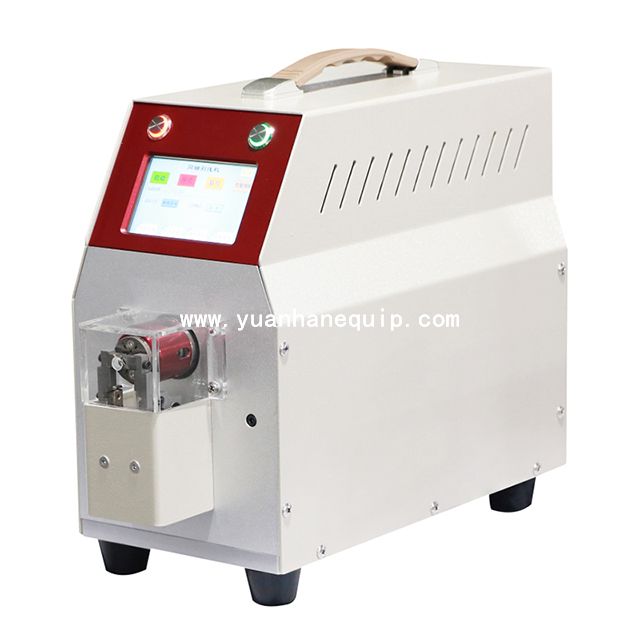

This machine is suitable for the stripping processing of ultra-fine flexible coaxial wire harnesses in the communication and medical industries, featuring neat and precise stripping ports without damaging the conductor.
|
Model:
|
|
|
Brand:
|
|
○ Equipped with a human-machine interface, it is simple and easy to operate. It can strip up to 6 layers and store up to 99 sets of processing data.
○ Adopting a rotary cutter head, the design of three rotating blades and three wire-protecting blades, along with its exquisite structure, further improves the stability of wire stripping and the service life of the blades.
○ The machine can automatically absorb and collect wire skin waste. With a compact overall structure, it can be used with automatic machines.
| Model | YH-1208 |
| Applicable Wires | coaxial cables, ultra-fine medical wires, etc. |
| Max. Stripping Length | 0–20 mm |
| Stripping Length Setting Unit | 0.01 mm |
| Cutting Wire Diameter Range | 0.4–1.8 mm |
| Cutting Depth Setting Unit | 0.01 mm |
| Max. Stripping Layers | 6 layers |
| Display | Touch screen |
| Display Interface | Chinese & English LCD, 85 mm × 50 mm |
| Power Supply | AC 220 V / 110 V, 50 / 60 Hz |
| Power | 300 W |
| Number of Blades | 3 pcs |
| Number of Wire Guards | 3 pcs |
| Dimensions | 310 × 160 × 280 mm |
| Net Weight | 18 KG |
| Driving Mode | Lead screw motor drive |
| Blade Material | Imported tungsten steel |
| Insulation Waste | Automatic suction and collection |
| Working Environment | -5–45 °C, dry and vibration-free workbench |
| Storage Capacity | 99 sets of processing parameters |
| Production Efficiency | 750–1150 Pcs/h (depending on wire type) |
