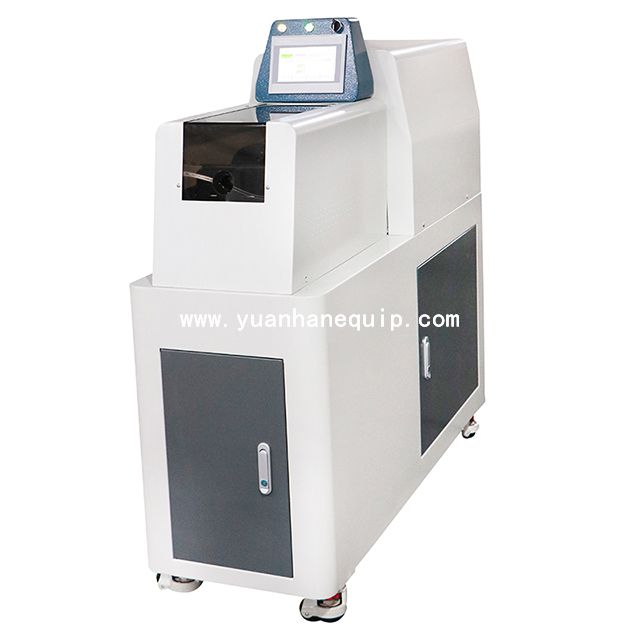

This semi-automatic coaxial cable stripping machine is specially designed for stripping extra‑thick new energy cables with high-precision stripping requirements.
|
Model:
|
|
|
Brand:
|
|
○ Cables processed by this machine feature neat, clean stripping ends without damage to the inner layers.
○ Equipped with a waste collection system and a material placement device, it is highly suitable for standardized and streamlined production.
| Model | YH-3030 |
|
Item |
Specification |
|
Operation |
7-inch Touch Screen |
|
Max. Stripping Length |
0–300 mm |
|
Cutting Wire Diameter Range |
3–30 mm |
|
Stripping Length Setting Unit |
0.01 mm |
|
Cutting Depth Setting Unit |
0.01 mm |
|
Max. Stripping Layers |
9 layers |
|
Number of Blades |
4 pieces |
|
Electrical Configuration |
Full Servo Motors |
|
Starting Method |
Foot pedal or Push button |
|
Storage Programs |
100 sets |
|
Power Supply |
AC 220V/110V, 50/60 Hz |
|
Power |
Approx. 2 KW |
|
Dimensions (L×W×H) |
1375 × 475 × 1365 mm |
|
Weight |
240 kg |
|
Production Efficiency |
200–500 Pcs/h (depending on wire material) |
|
MES System |
Physical interface for MES connection available |
