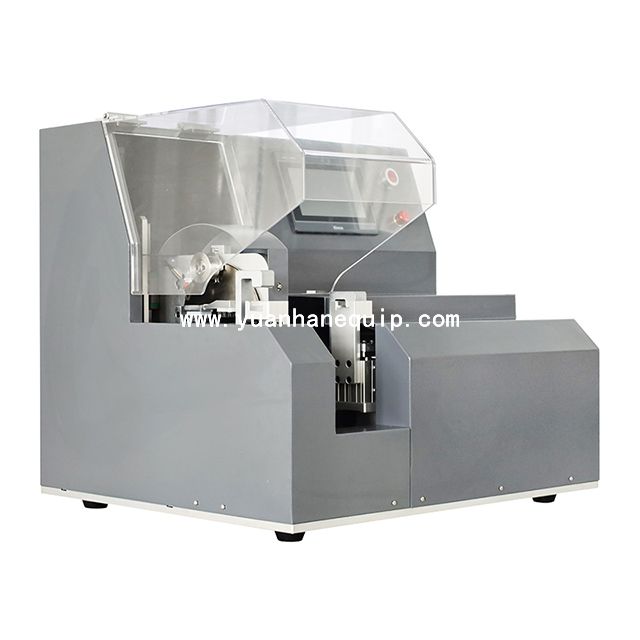

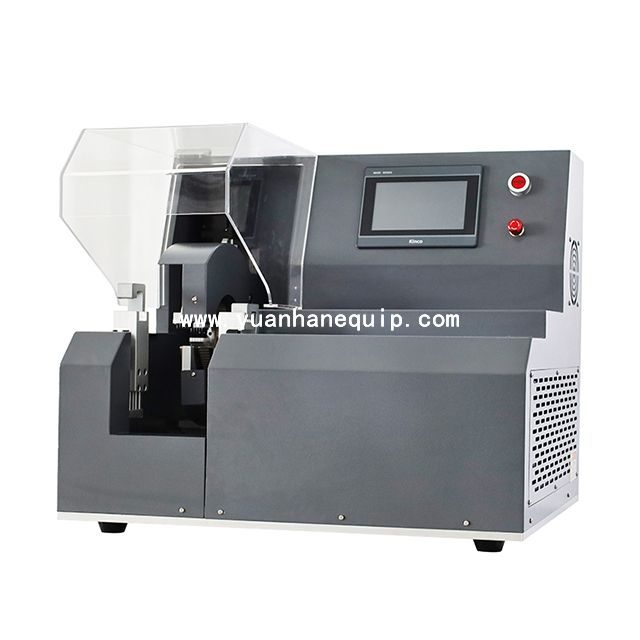

Our copper busbar tape wrapping machine is designed to efficiently and accurately wrap copper busbars with ease. This machine is equipped with advanced features that allow for spot taping as well as short distance continuous taping, providing versatility and precision in your wrapping process.
|
Model:
|
|
|
Brand:
|
|
○ Our copper busbar tape wrapping machine is designed to efficiently and accurately wrap copper busbars with ease. This machine is equipped with advanced features that allow for spot taping as well as short distance continuous taping, providing versatility and precision in your wrapping process.

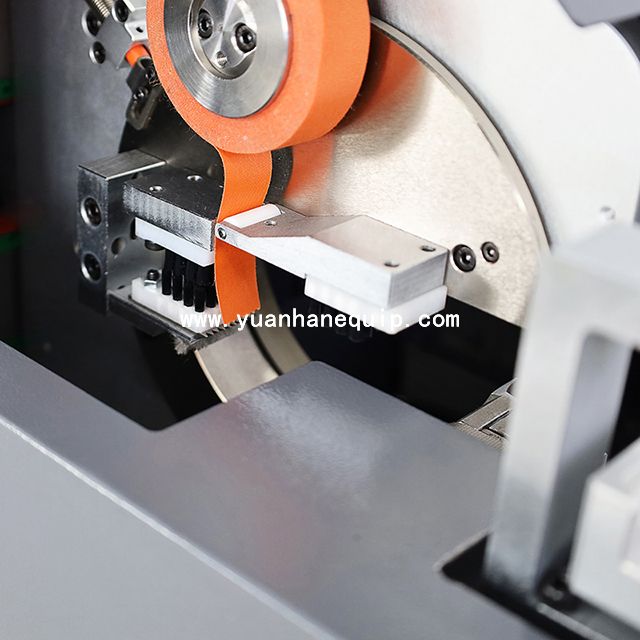

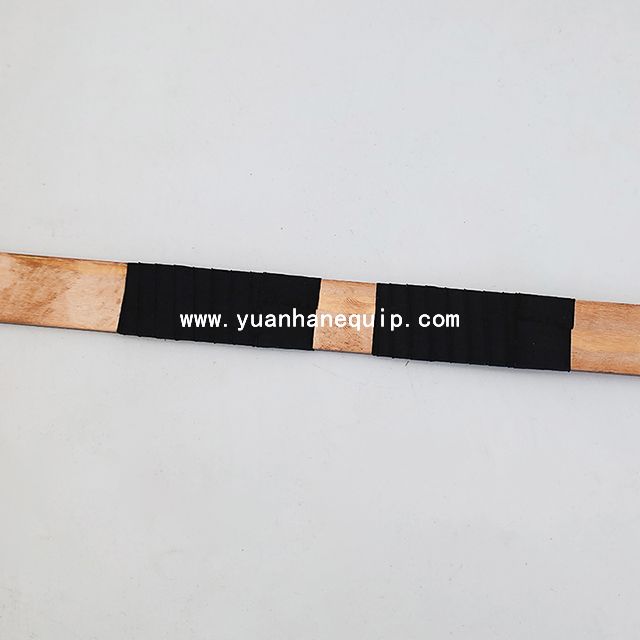

○ The spot taping feature allows for targeted application of tape on specific areas of the busbar, ensuring thorough coverage and protection. Additionally, the short distance continuous taping capability enables seamless wrapping of consecutive sections of the busbar, resulting in a smooth and uniform finish.
○ Our copper busbar tape wrapping machine is built with durability and reliability in mind, making it a valuable asset for any industrial or manufacturing setting. With its user-friendly interface and intuitive controls, operators can easily adjust settings and monitor the wrapping process for optimal results.
|
Model |
YH-TP305 |
|
Taping method |
Spot taping plus short distance continuous taping |
|
Working environment |
0~40℃(ambient temperature) |
|
Applicable air pressure |
0.4 MPa - 0.6 MPa |
|
Power supply |
two-phase, AC220V, 50HZ |
|
Power |
400W |
|
Working efficiency |
6s |
|
Tape material |
PVC, cloth tape, acetate cloth tape, etc. |
|
Winding position accuracy |
within ±2 |
|
Winding overlap |
within ±1.5 |
|
The length of the workpiece |
≥120mm |
|
The diameter of the workpiece |
6mm-28mm |
|
Tape width range |
≤40mm |
|
The outer diameter of the tape |
≤105mm |
|
Distance from the end position |
≥30mm |
|
Dimensions |
600mm x 650mm x 560mm (LxWxH) |
|
Weight |
70 KG |
