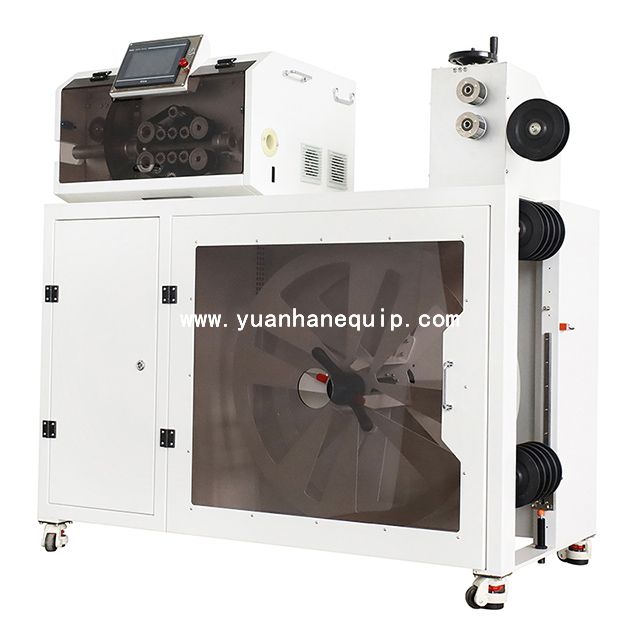

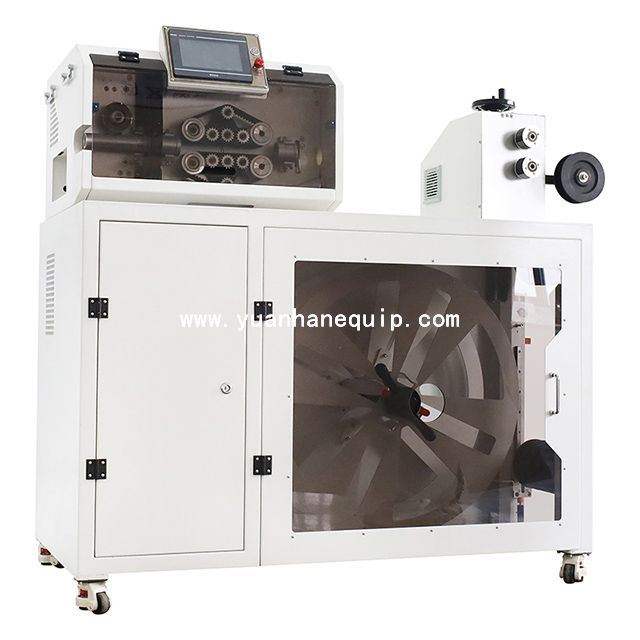

High-speed Corrugated Tube Cutting MachineHigh-speed Corrugated Tube Cutting Machine

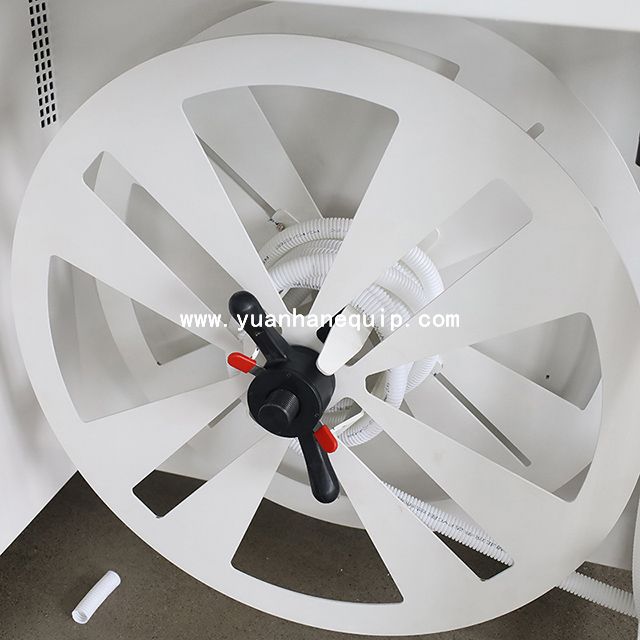

This machine is suitable for fixed-length cutting and high-speed flying cutting of corrugated pipes, PVC pipes, heat-shrinkable pipes, and other thin-walled pipes. It is equipped with integrated discharging function and pre-feeding function.

Model:
  • YH-FQ535FY
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

○ Optional: MES system, Internet of Things system, fixed-point inkjet function, external auxiliary equipment alarm;

○ User-friendly system, intuitive operation via 7'' color touch screen;

○ Modular interface, convenient for linking accessories and peripheral equipment;

○ Modular design, future upgradeable;

○ Accept non-standard customization.

Model YH-FQ535FY
Display mode 7-inch man-machine interface
Processing range φ4 — 32mm
Cutting length 1mm-999999.99mm
Cutting tolerance within 0.003*L (L=cutting length)
Maximum diameter allowed to pass Φ35
Feeding range 120-750mm
Productivity 100,000 pieces/hour (depending on the length and size of the tube)
Drive mode 10-wheel drive; optional servo motor

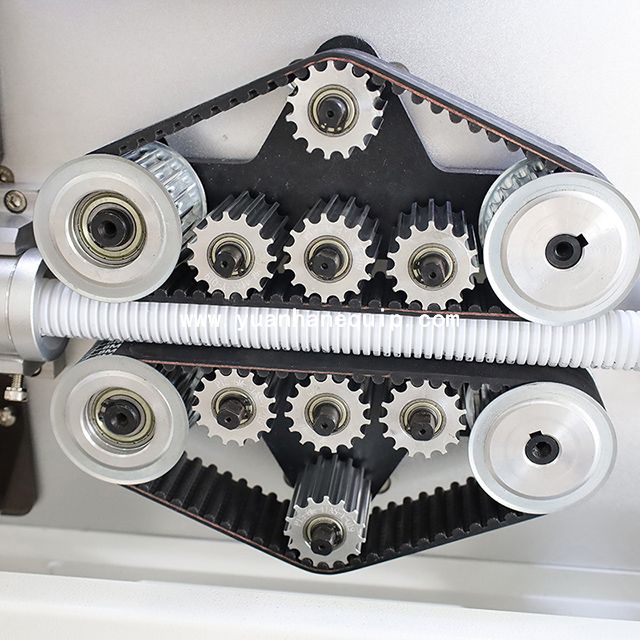

Feeding method belt feeding, no embossing or scratches on the pipe
Lifting operation mode digitally adjust the height of the pressure roller
Power supply AC220V 50/60Hz; optional 110V 50/60Hz
Air source no air source required
Dimensions  (L*W*H) 1550*650*1400mm
Net weight 260 kg
