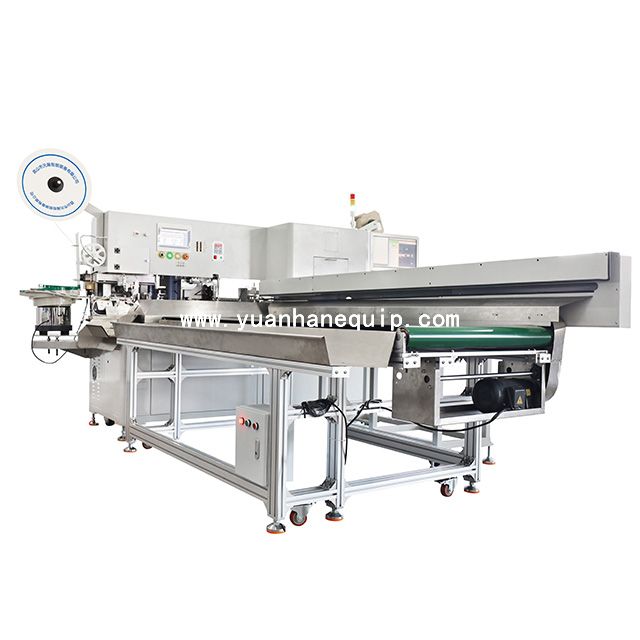

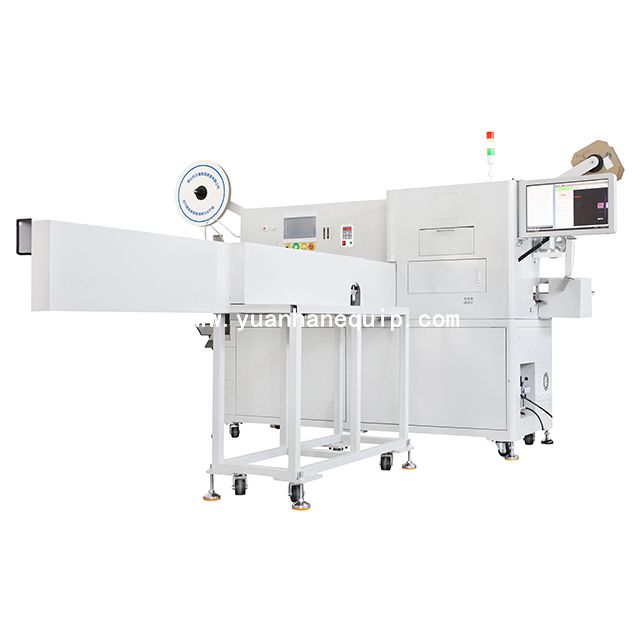

This dual-side crimping & single-side housing connector inserting machine streamlines wire processing with full automation: it handles cutting, stripping, and terminal crimping for one end of the wire, while the opposite end undergoes automated cutting, stripping, terminal crimping, and precise housing connector insertion—all in a single, continuous workflow.
|
Model:
|
|
|
Brand:
|
|
○ This equipment is a high-efficiency automated solution designed for wire processing workflows. It integrates multi-step operations into a single, seamless process:
One wire end: Automatically completes cutting, stripping, and terminal crimping.
The other wire end: Automatically performs cutting, stripping, terminal crimping, and precise housing connector insertion.
○ By replacing manual and fragmented processing, it minimizes human error, boosts production efficiency, and ensures consistent quality across wire assemblies.
|
Model |
YH-CJKA601 |
|
Power Supply |
AC220V |
|
Maximum Power |
4.8KW |
|
Air Pressure |
0.4-0.6MPa |
|
Machine Weight |
About 750kg |
|
Overall Dimensions |
1950L * 1600W * 1800H (Excluding wire feeder and vibratory bowl) |
|
Feeding Method |
Vibratory bowl for automatic housing feeding; |
|
Functions |
Terminal stripping & crimping (End A); |
|
Processing Range |
AWG18-AWG24 or AWG24-AWG30; |
|
Processing Length (Exposed wire length after housing insertion) |
40mm ≤ L ≤ 980mm (Contact on-duty sales for special requirements) |
|
Wire Cutting Precision |
0.5mm + 0.2% of cutting length |
|
Stripping Length |
Max. 10.0mm (End A); Max. 6.0mm (End B) |
|
Crimping Capacity |
2T |
|
Maximum Pin Count |
20 pins per single row; Max. 3 rows |
|
Maximum Wire Colors |
8 colors (Customization available for more colors) |
|
Housing Dimensions |
MAX: 402118 (Max. height of top row pin center: 14.5mm); MIN: 563mm; Pitch: 1.0-4.2mm |
|
Maximum Operating Speed |
1.4s/piece (for 200mm wire length); 1.5s/piece (for 600mm wire length); And so on (Automatic housing change & feeding time: 0.6s after completing one finished product; Actual output may vary slightly depending on materials and requirements) |
|
Inspection Devices |
CCD visual inspection for terminal appearance; Terminal presence detection; Pull test after housing insertion; Housing presence detection; Reject rate threshold configurable |
|
Standard Components |
8-axis reel-type universal wire feeder |
|
Standard Configuration |
Dual-channel terminal crimp force monitoring system |
|
Standard Configuration |
Single-lens CCD visual inspection system |
