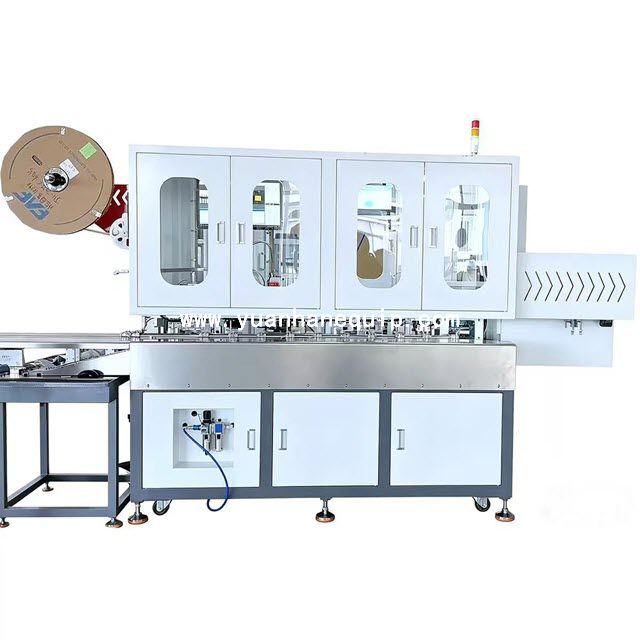

This high-efficiency automatic machine is engineered for precision processing of multi-core sheathed wires, integrating all core operations—cutting, stripping, terminal crimping, and housing insertion—into one continuous workflow. It is ideal for high-volume production of wire harnesses in automotive, consumer electronics, and industrial applications.
|
Model:
|
|
|
Brand:
|
|
○ Equipped with servo motor-driven crimping mechanisms paired with reducers, it solves the challenge of crimping multi-core sheathed wires, achieving stable high-speed production up to 900 units/hour.
○ Built-in CCD vision and pressure monitoring systems automatically sort good and defective products, ejecting defects at dedicated stations to ensure consistent quality and reduce rework.
○ Uses a jig-based material handling system for precise positioning and parallel processing at all stations. Supports multi-person simultaneous wire loading, fully utilizing the machine’s maximum production capacity.
○ Robust engineering and low overall defect rate (≤2%) ensure long-term stable operation, minimizing downtime and maintenance costs.
| Model | YH-HTCJK25 |
|
Core Functions |
Automatic heating straightening, cutting, stripping, terminal crimping, housing insertion |
|
Min. Strand Length |
≥ 20 mm |
|
Wire Gauge Range |
AWG#20–#32 |
|
Core Wire Count |
2–15 PIN |
|
Crimp Pitch |
0.8–8.0 mm |
|
Power Supply |
AC220V, 50/60Hz, 5.5KW |
|
Machine Weight |
1200 KG |
|
Dimensions |
L2630 × W1200 × H1980 mm |
|
Inspection Systems |
Jig/terminal presence check, CCD color sequence & stripping inspection, crimp pressure monitoring, CCD terminal appearance & housing insertion verification, air pressure detection |
|
Production Capacity |
600–800 units/hour (up to 900 units/hour max; subject to manual wire loading speed) |
|
Defect Rate |
≤ 2% (overall) |
