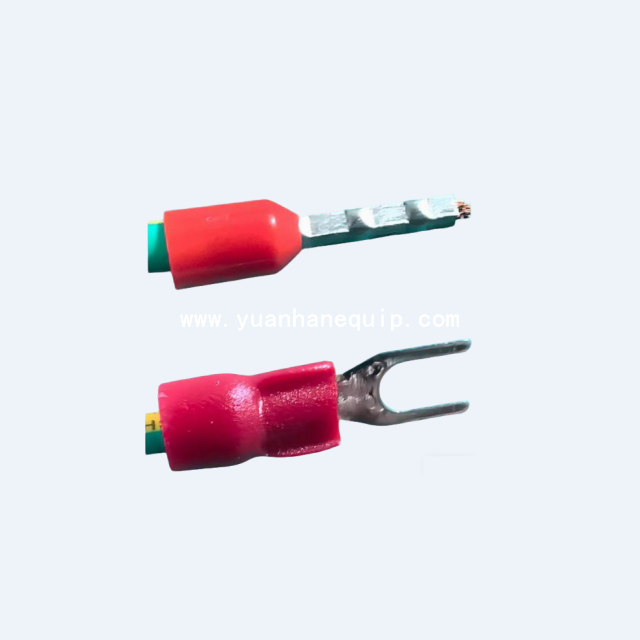

Our die-free electric terminal crimping machine is an innovative solution to the pain points of traditional tools. It demonstrates irreplaceable advantages, especially when crimping SV pre-insulated terminals and European-style tubular terminals.
|
Model:
|
|
|
Brand:
|
|
○ Multi-model compatibility, no die changes required, higher efficiency: This machine features a built-in adaptive crimping mechanism, eliminating the need for die changes. It easily handles various sizes of SV pre-insulated terminals (such as common sizes like SV1.25, SV2.5, and SV4.0) as well as European tubular terminals (such as VE1.0, VE2.5, and VE6.0). Whether switching from thin-wire terminals to thick-wire terminals, or from pre-insulated terminals to tubular terminals, simply insert the terminals and wires, start the machine, and crimp. This eliminates the tedious process of removing, installing, and calibrating traditional dies, reducing batch changeover time by over 30% and significantly improving overall crimping efficiency.
○ Electric drive for effortless, wrist-friendly operation: Utilizing a high-quality motor, the crimping force is stable, eliminating the need for manual operation. Operators simply place the terminals and wires, start the machine, and crimp with precision. Say goodbye to the pain associated with traditional manual crimping pliers. Even after working for 8 hours straight, your hands remain comfortable, effectively protecting your wrist joints and reducing the risk of occupational strain injuries, making long-term batch crimping easier.
○ High crimping precision and low defect rate: A built-in adaptive pressure adjustment system automatically adjusts the optimal crimping force based on the terminal type, ensuring that each crimped terminal meets the tensile strength requirements of standards such as GB/T 9327-2008 and IEC 60512-16-4 (for example, a consistently high tensile force of ≥73N for SV terminals with a 0.5mm² conductor). This prevents uneven crimping force, which can lead to either a loose crimp (which can easily cause the terminal to fall off) or an overtight crimp (which can damage the conductor), keeping the defect rate below 0.1%.
○ Easy to operate and quick to learn: The machine's simple design and clear buttons and indicators allow beginners to master the operation in just 5 minutes. Safety features ensure safe operation, eliminating the need for specialized training and lowering the barrier to entry.
|
Model |
YH-MHMH01 |
|
Overall Dimension (Width * Height * Depth) |
186*336*325
|
|
Net Weight |
20kg |
|
Output Force |
2T |
|
Standard Crimping Dies (Different Dies Can Be Replaced) |
SV1.25; SV2; SV3.5; SV5.5 |
|
Standard Quadrilateral Crimping Dies |
European Tubular Terminals within 6mm² |
|
Power Source |
Electric |
|
Power Requirement |
AC220V; 50Hz; 2.5A |
|
Crimping Speed |
Max: Cycle/0.2s Min: Cycle/1s |
