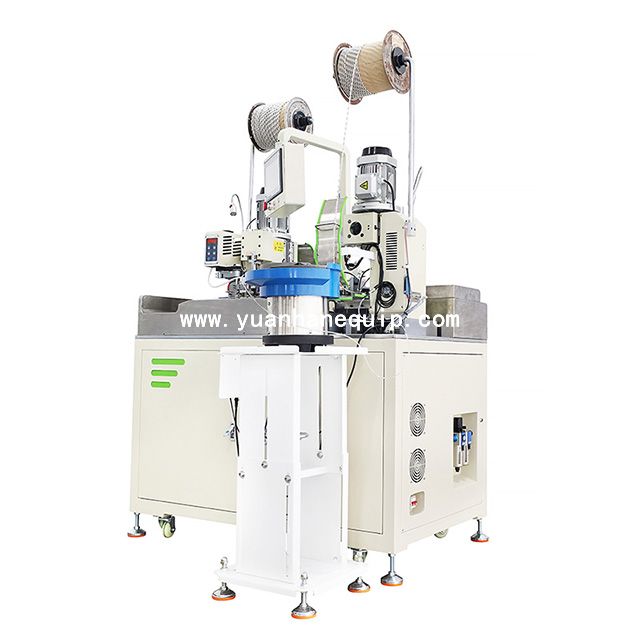

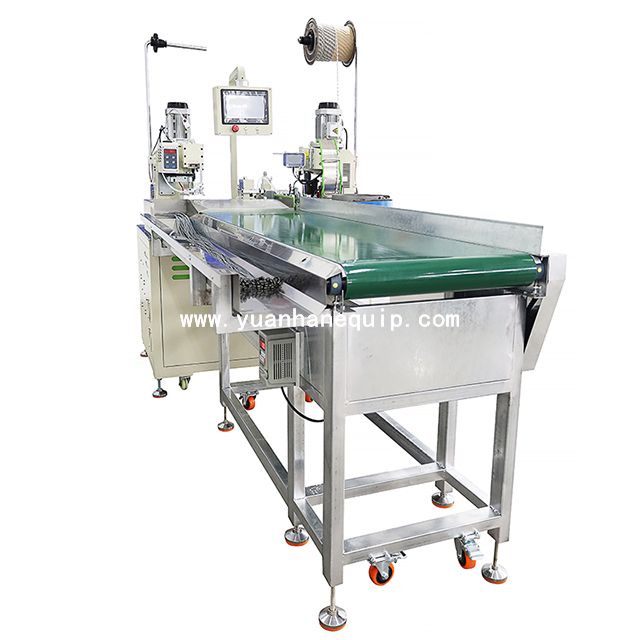

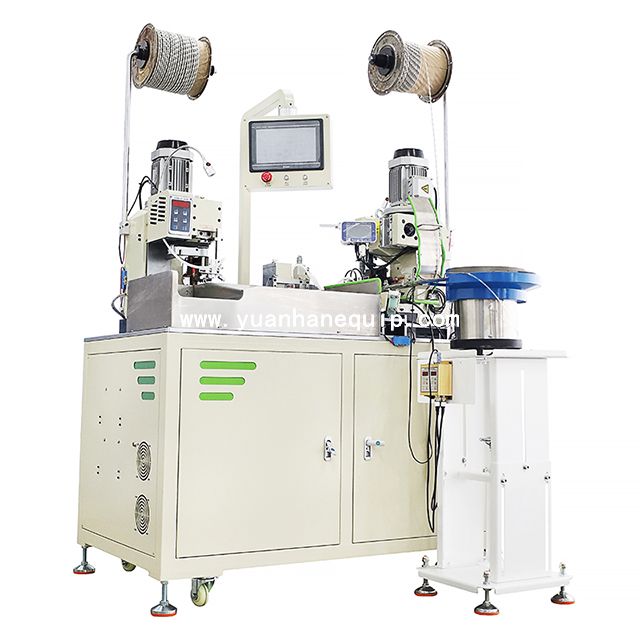

Cable Two Ends Crimping and One End Plastic Sleeves Assembly MachineCable Two Ends Crimping and One End Plastic Sleeves Assembly Machine

Our cable two ends crimping and single end plastic sleeve insertion machine is engineered to effortlessly crimp both ends of cables while seamlessly inserting plastic sleeves on a single end, ensuring flawless and secure connections every time.

Model:
  • YH-CHT1850
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Equipped with state-of-the-art technology, this machine boasts a range of exceptional features. Its intuitive interface allows for easy operation, minimizing the learning curve and maximizing productivity. The machine's robust construction ensures durability and longevity, making it a reliable investment for your business.

○ Our cable two ends crimping and single end plastic sleeve insertion machine offers unparalleled precision and accuracy. With adjustable settings, you can effortlessly customize the crimping and insertion process to meet your specific requirements. This flexibility guarantees consistent and high-quality results, reducing the need for rework and enhancing overall efficiency.

○ Safety is paramount, and our machine prioritizes it. With built-in safety mechanisms, including emergency stop buttons and protective shields, operators can work confidently, knowing that their well-being is safeguarded. This attention to safety not only protects your workforce but also minimizes downtime due to accidents or injuries.

○ Designed for versatility, our cable two ends crimping and single end plastic sleeve insertion machine accommodates various cable sizes and types. From small-scale projects to large-scale production, this machine adapts to your needs, ensuring compatibility and efficiency across the board.

Model YH-CHT1850
Production capacity 3000pcs/hour(length=600mm)
Applicable wire diameter AWG12#-AWG32#
Processing length leaving wire insulation in the middle 18mm-600mm
Stripping length 0.1mm-18mm ideal range
Cutting error Correctable
Crimping capacity 2.0 Ton
Detection device Knot detection, crimping detection, missing wire detection, air pressure detection
Auxiliary device Waste paper winding device +  material strip cutting device
Power supply AC220V single phase 8A
Weight About 450kg
Dimensions Length 1340mm*width 850mm*height 1700mm









×
