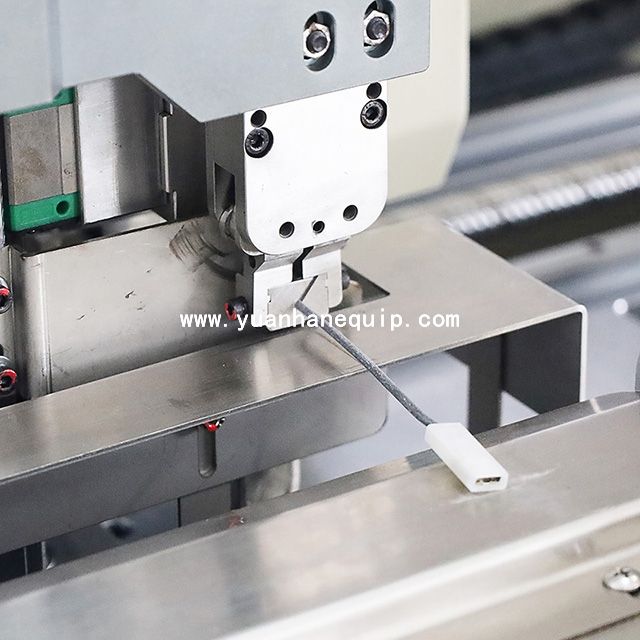

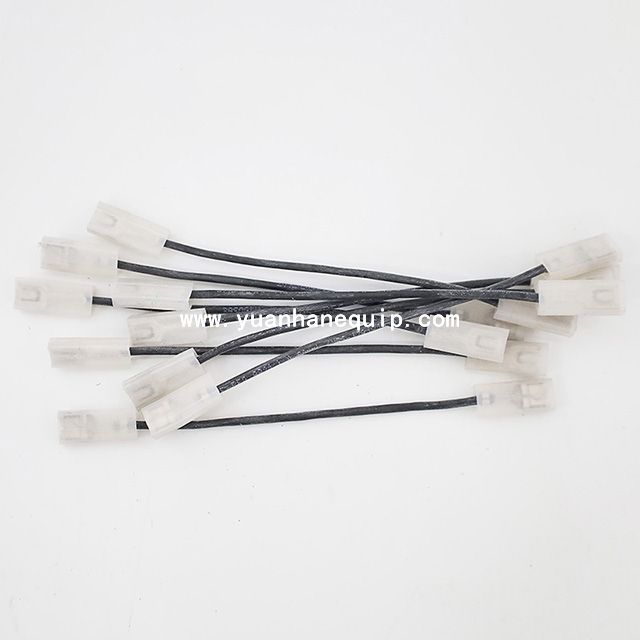

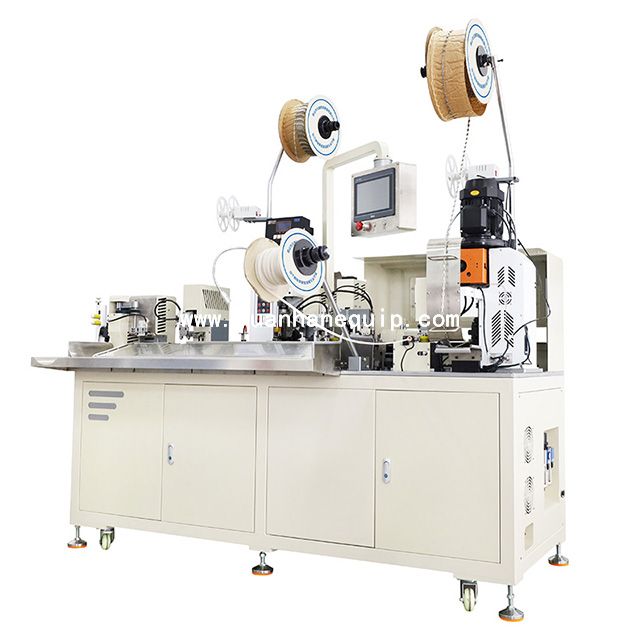

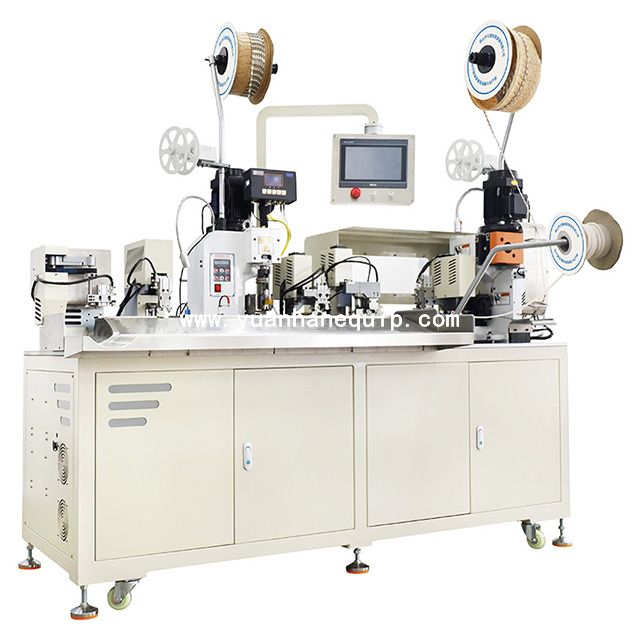

Our cable two sides crimping and protective sleeves inserting machine is a versatile and efficient solution for all your cable assembly needs. This machine is designed to crimp both sides of a cable simultaneously, ensuring a secure and reliable connection every time. Additionally, it is equipped with a protective sleeves inserting feature, which helps to protect the cable from damage and wear.
|
Model:
|
|
|
Brand:
|
|
○ This machine is built with high-quality materials and precision engineering, ensuring durability and long-lasting performance. Its user-friendly interface makes it easy to operate, while its advanced technology ensures accurate and consistent crimping and sleeve insertion.
○ Whether you are working with small or large cables, our cable two sides crimping and protective sleeves inserting machine is the perfect choice for any production environment.
| Model |
YH-CHTST01 |
| Wire specification | 0.3-6mm² |
| Cutting length | 40mm-9999mm (set value 0.1mm unit |
| Stripping length | 1-15mm (stripping length can be customized) |
| Crimping force | 2.0T-4.0T (customizable) |
| Crimping stroke | 30mm (40mm stroke can be customized) |
| Applicable mold | universal OTP mold |
| Detection device | Air pressure detection/wire detection/sheath detection/crimped terminal detection (Pressure management optional) (Visual optional) |
| Control method | Single chip microcomputer control |
| Function | wire cutting, single (double) end stripping, single (double) end crimping, single (double) end sleeves inserting |
| Efficiency | 1200-2000 (customized models are based on actual production capacity) |
| Compressed air | not less than 0.55MPa |
| Power supply | single-phase AC220V50/60Hz32A |
| Dimensions | Length 1100*Width 900*Height 1800 (mm) (excluding protrusions) |
