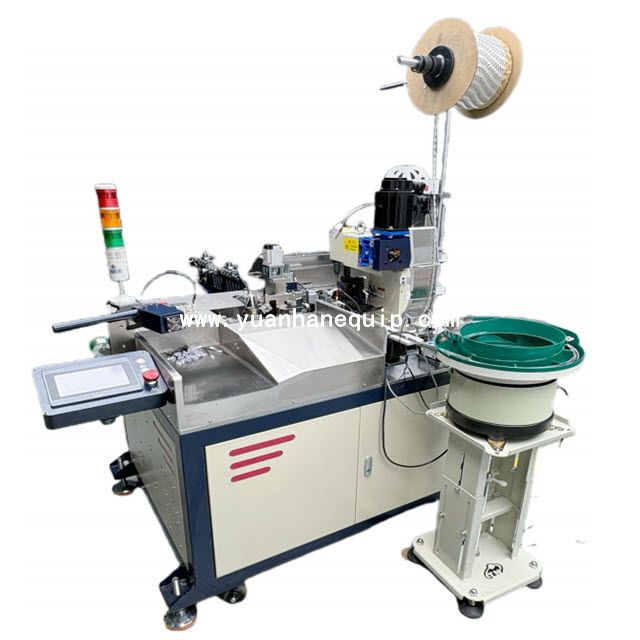

The wire single end crimping protective sleeves inserting and tinning machine is a versatile and efficient tool designed for use in various industrial applications. This machine is equipped with advanced features that make it easy to crimp, insert protective sleeves, and tin the ends of wires with precision and accuracy.
|
Model:
|
|
|
Brand:
|
|
○ With a sturdy construction and reliable performance, this machine is capable of handling a wide range of wire sizes and types. The crimping function ensures a secure connection between the wire and the protective sleeve, while the tinning feature adds a layer of protection to prevent corrosion and ensure long-lasting durability.
○ The wire single end crimping protective sleeves inserting and tinning machine is easy to operate, with user-friendly controls and adjustable settings for optimal performance. Its compact design makes it suitable for use in tight spaces, while its high-speed operation ensures quick and efficient processing of wires.
○ Whether you are working in the automotive, electronics, or manufacturing industry, this machine is a valuable addition to your production line. Trust in the quality and reliability of the wire single end crimping protective sleeves inserting and tinning machine to streamline your wire processing operations and deliver consistent results every time.
|
Model |
YH-CHTZX01 |
|
Wire Cutting Specification |
0.3 - 4 mm² (Customization required for loose terminals) |
|
Wire Cutting Length |
40mm - 9999mm (Set value in 0.1mm unit) (Customizable for shorter length) |
|
Stripping Length |
1mm - 15mm (Customizable stripping length) |
|
Crimping Force |
2T - 3T (Customizable) (Optional for servo terminal machine) |
|
Crimping Stroke |
30mm (40mm stroke customizable) |
|
Tubing Length |
12mm - 35mm |
|
Tubing Diameter |
φ2.5mm - φ7.0mm |
|
Applicable Die |
Universal OTP die |
|
Detection Device |
Air pressure detection / Detection of presence/absence of wire / Detection of presence/absence of sheath / Detection of presence/absence of uncrimped terminal (Optional for pressure management) (Optional for vision) |
|
Control Method |
Motion control card |
|
Function |
Wire cutting, single (double) -end stripping, single -end crimping, single -end tubing, single -end twisting and tinning |
|
Efficiency |
1600 - 2000 (For customized models, actual production capacity shall prevail) |
|
Compressed Air |
Not less than 0.55MPa |
|
Power Supply |
Single -phase AC220V - 50/60Hz 32A |
|
Overall Dimensions |
Length 1100 x Width 900 x Height 1800(mm) (Excluding protrusions) |
