Kunshan Yuanhan Electronic Equipment Co., Ltd.

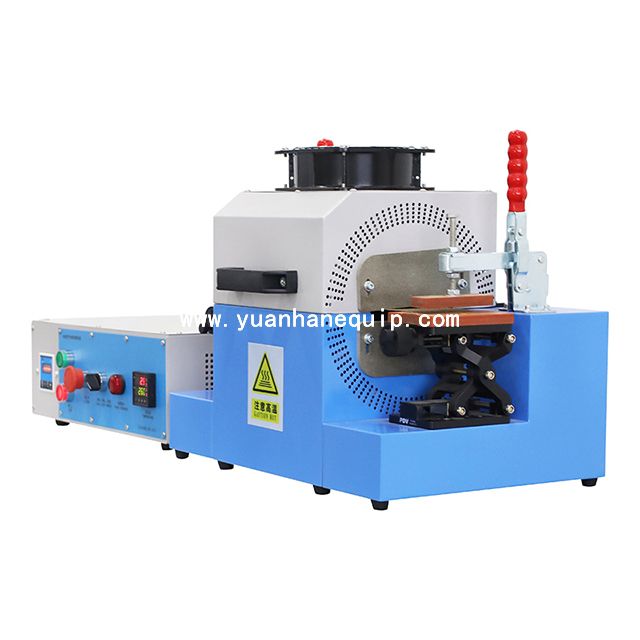

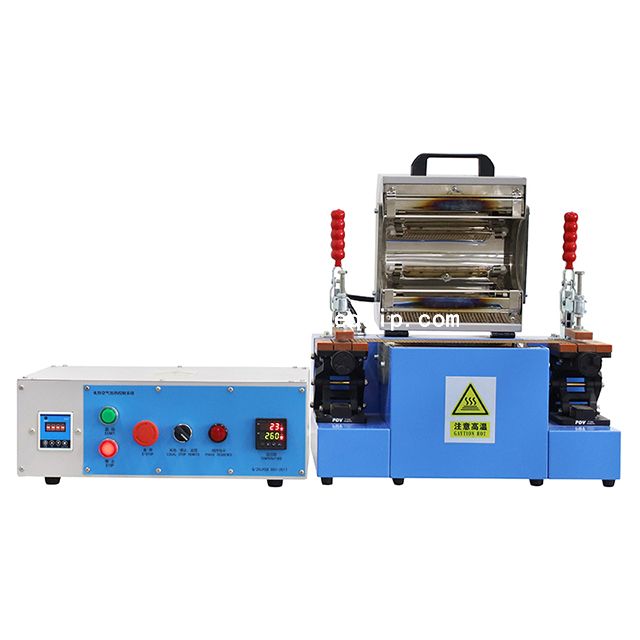

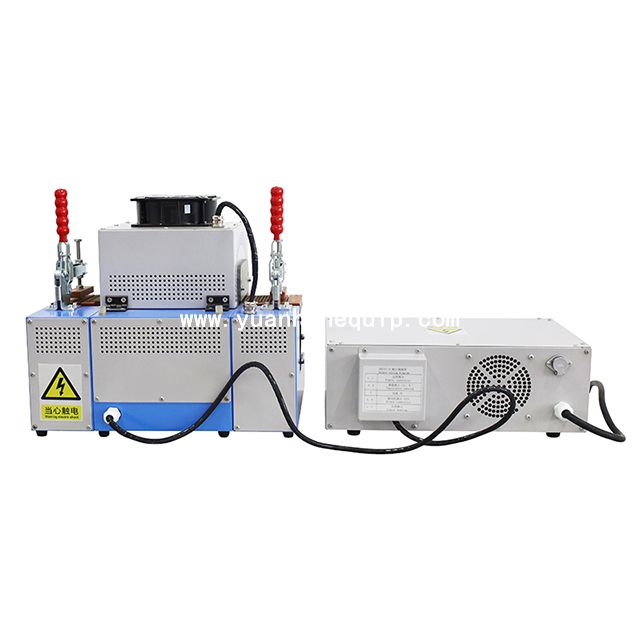

Heating Curing Oven for HarnessHeating Curing Oven for Harness

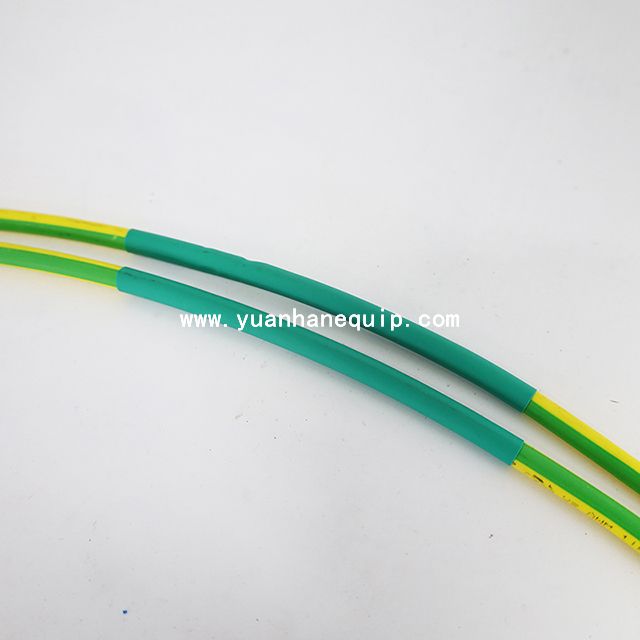

This electric air heater adopts a 360-degree annular heating design, which is suitable for heating large-diameter heat-shrinkable sleeves. It can work continuously for 24 hours, and the heating time can be set freely.

Model:
  • YH-MT360-2
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Heating method

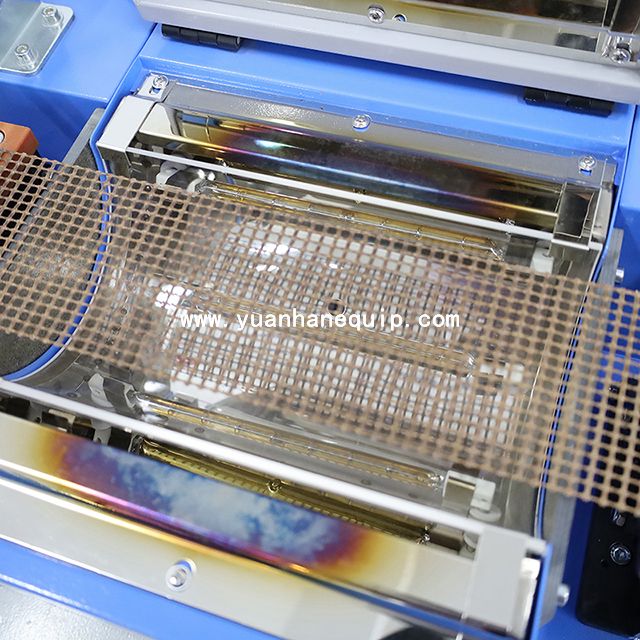

It adopts 360-degree surrounding annular infrared radiation heating, and the heating is basically uniform.

○ Fan delay function

In order to protect the heating core and prolong the service life of the heating core, the machine is equipped with a shutdown and blowing delay function. After the machine stops working, the blower can be turned off only after the blower has cooled down for one minute.

○ Heat insulation design

The dual design of the heating zone shell, which saves energy and protects the working environment.

○ Heater safety

It is equipped with overheating and overload protection, power-off protection device, emergency stop switch, etc., which does not produce exhaust gas, conforms to environmental protection, and can operate 24 hours a day.

Model YH-MT360 -2
Heating inlet diameter <120mm
Heating length <130mm
Heating diameter <100mm
Heating tube name Infrared radiant tube
Heating tube power 300W*8=2400W
Power 220V 50HZ
Machine power <2.8KW
Safety level ground wire
×
