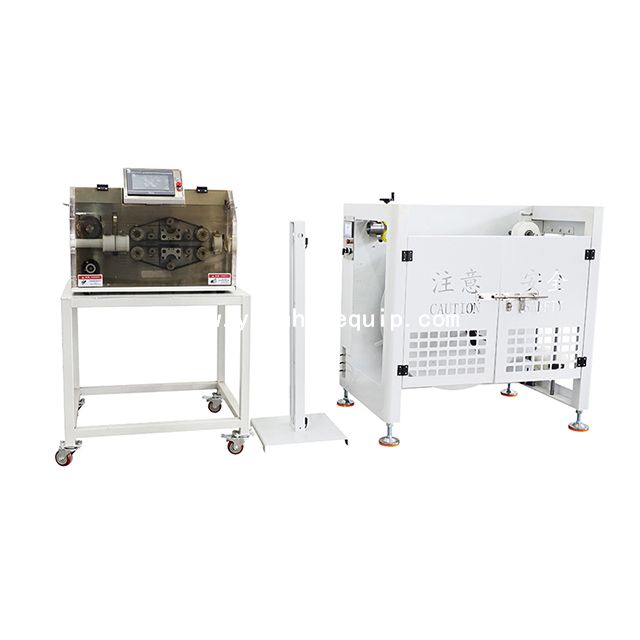

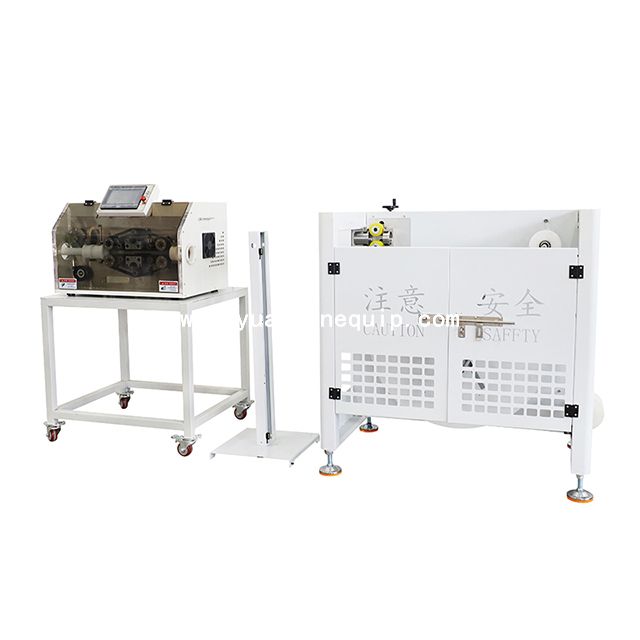

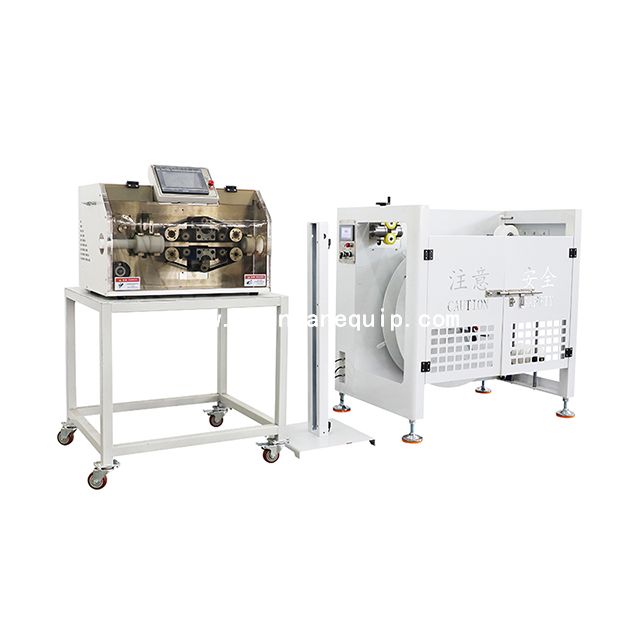

Corrugated Tube Cutting and Splitting Machine with Tube FeederCorrugated Tube Cutting and Splitting Machine with Tube Feeder

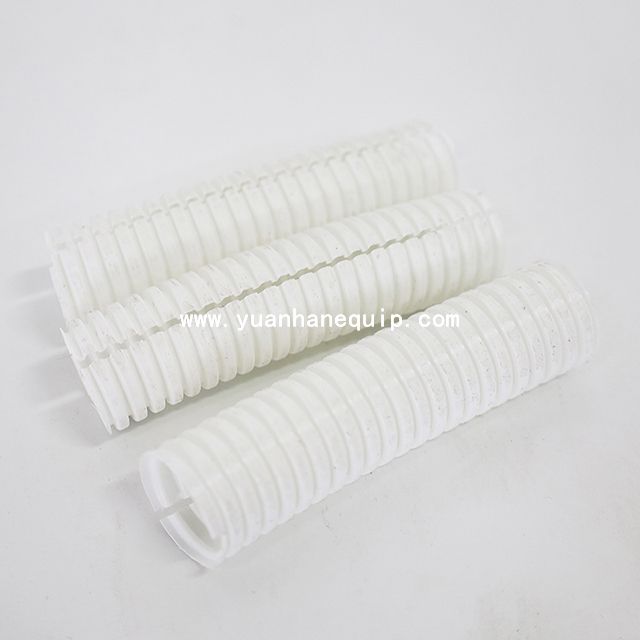

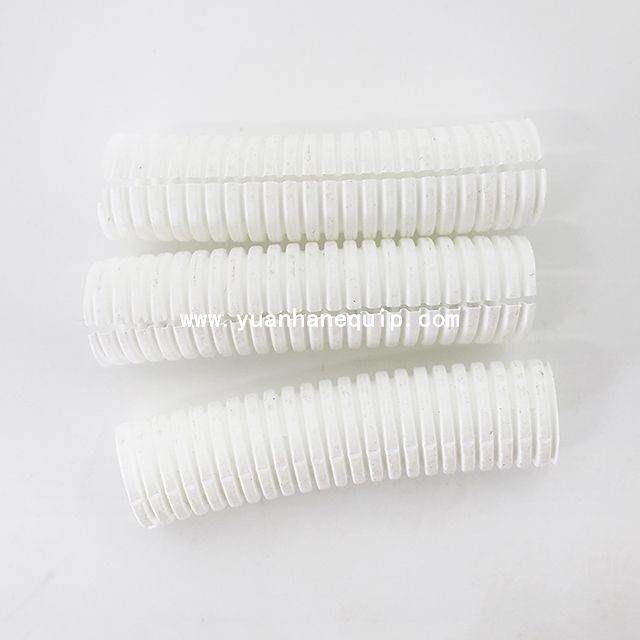

This is a fully automatic high precision corrugated tube cutting and slitting machine. It is able to cut wire loom convoluted tubing with high cutting precision. The maximum cutting diameter reaches 60mm. It meets customers' needs for wire harness processing in industries such as automotive, new energy, aerospace, motorcycle, urban rail transit, high voltage cabinets and more.

Model:
  • YH-B60P+YH-FGJ
Brand:
  • Yuanhan
Share to:
Features
Specifications

YH-B60P - Corrugated Tube Cutting and Splitting Machine

○ Control system: PLC man-machine interface

○ Cutting off method: Cylinder cutting off

○ Integrated circuit, stable control and simple maintenance
YH-FGJ - Tube Feeder
○ Automatic pay-off of rubber tubes, plastic hoses, corrugated pipes and more.

○ Can be used with fully automatic pipe/tube/hose cutting machines.

Model YH-B60P
Stroke 60mm
Power 220V 50-60HZ
Rated Power 500W
Cutting diameter ø5-60mm
Cutting tolerance ±0.5% cutting off length
Cutting speed 10-60 pcs/min (depending on the length)
Dimension 85 x 70 x 68cm (L x W x H)
Weight 96KG
Model YH-FGJ
Control system PLC touch screen control
Material tray diameter 800mm
Feeding motor 550W AC motor
Feeding motor control automatic control of wire-pull potentiometer
Traction motor stepper motor
Traction motor control automatic control of induction frame
Power supply 220V 50-60hz
Working rate 900w
Dimensions 750x1100x1100mm
Weight 180kg



×
