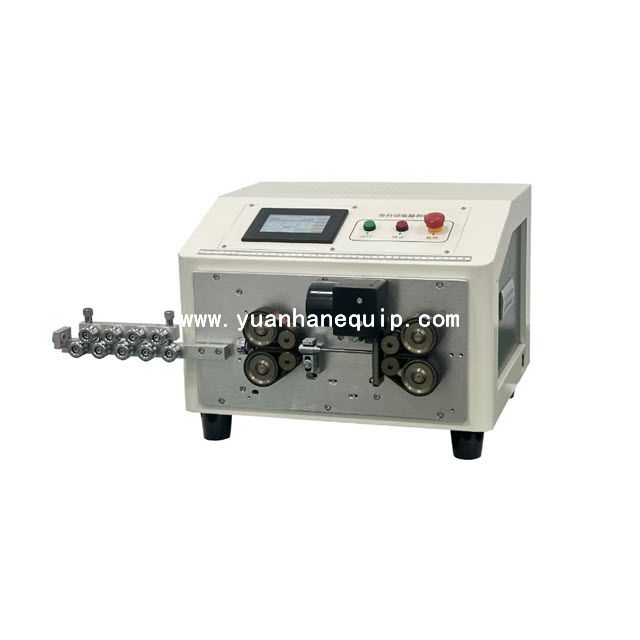

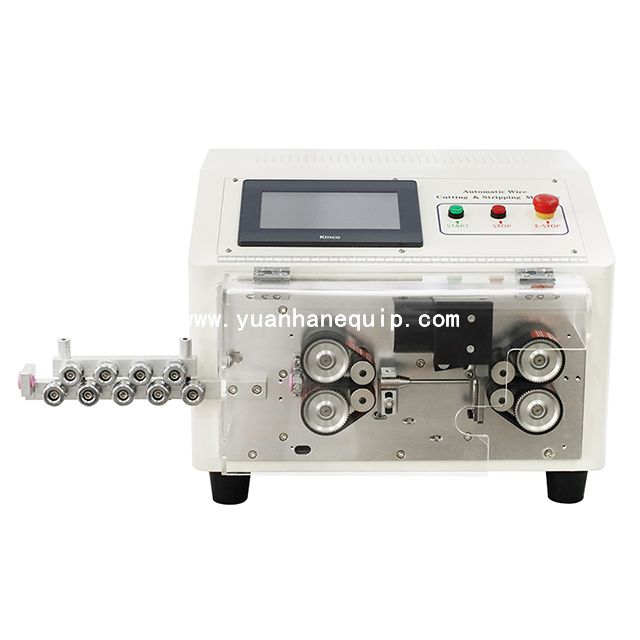

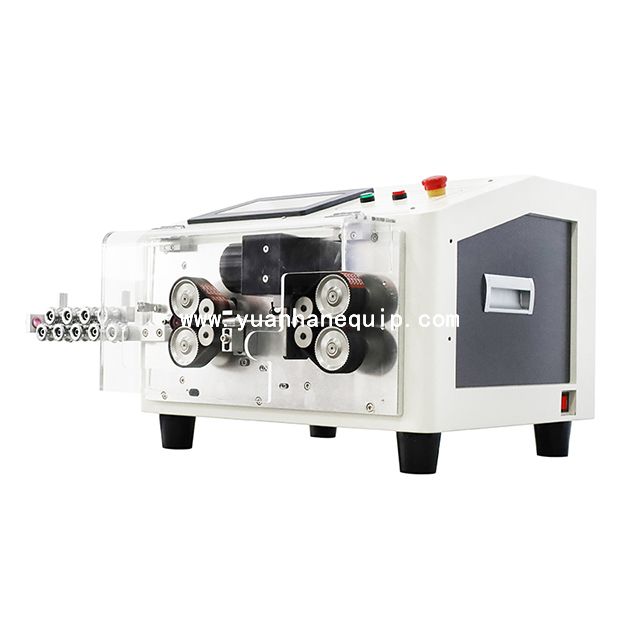

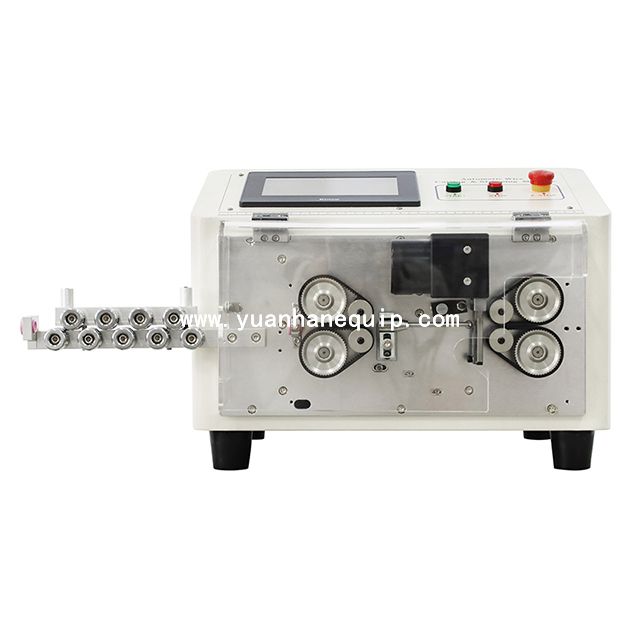

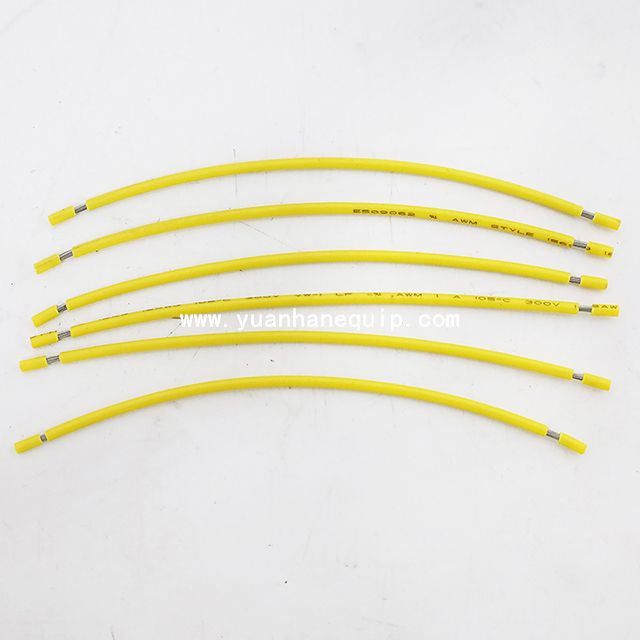

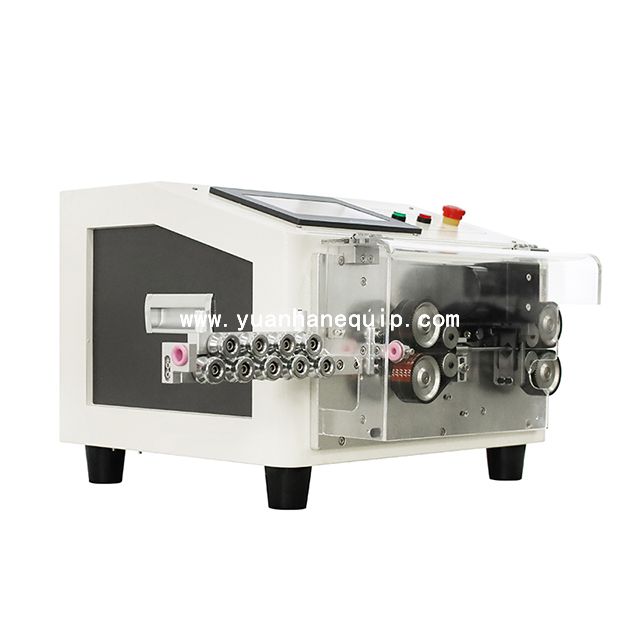

This cutting and stripping machine can process electronic wires, PVC clinker wires, silicone wires, braided wires, Teflon wires, glass fiber wires, isolation wires, etc.
|
Model:
|
|
|
Brand:
|
|
○ Full touch screen computer numerical control debugging, wire length, single-end stripping, double-end stripping, digital operation is completed, simple and easy to understand.
○ Unique appearance, rounded precision design, exquisite and compact, easy to place.

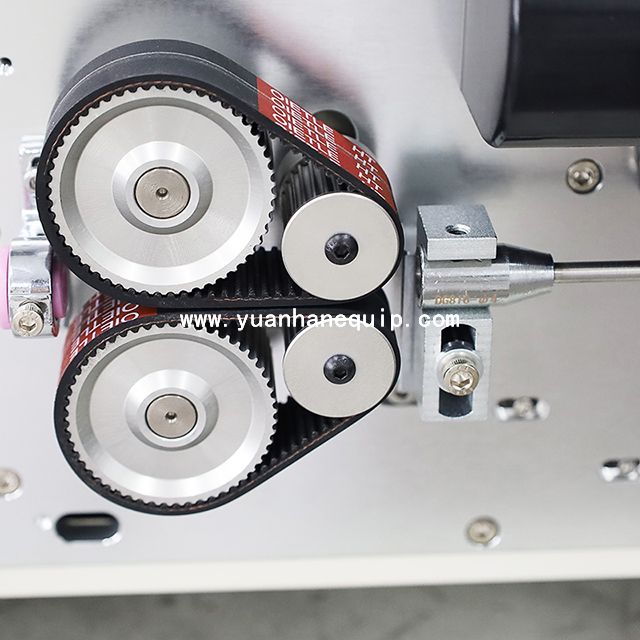

○ Automatic in and out wires, timed start, inching adjustment switch.
○ One-button correction of wire length error function.
|
Model |
YH-806L |
| Core wire cutting | 0.1-6mm² AWG30#-10# |
| Cutting length | 0.1-99999.9mm |
| Stripping length | 0.1-30mm |
| Accessibility | Automatic in/out wire , timed start , inching adjustment |
| Blade material | Imported tungsten steel/high speed steel |
| Capacity / hour | 50-1000mm (2000-4500 pieces/hour) |
| Display Mode | 4.3 -inch color display |
|
Input Power |
AC220V 50 / 60HZ |
|
Dimensions |
L 470mm* W 4 65mm * H 350mm |
|
Weight |
45 kg |
|
Machine power |
680W |
|
Rated Power |
400W |
|
Number of middle stripping sections |
16 segments (customizable) |
|
Wire stripping accuracy |
Silent hybrid stepper motor 0.01mm |
|
Program storage |
00-99 (one-key copy, one-key read, customizable number name) |
