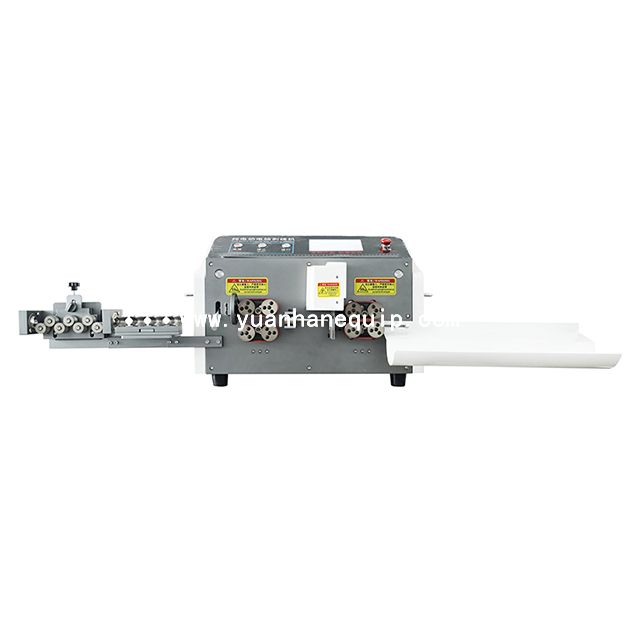

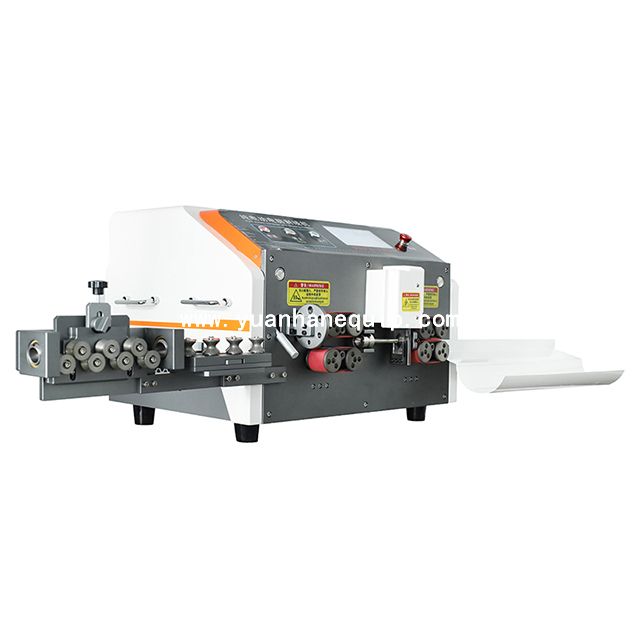

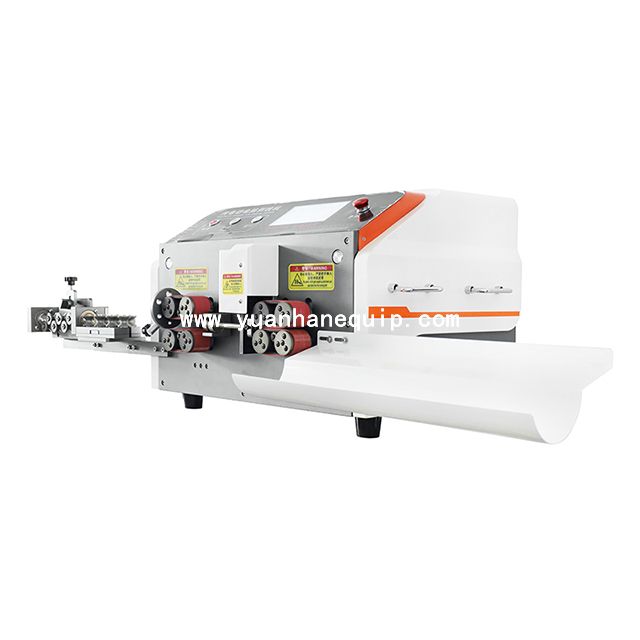

Our pure electric wire cutting stripping machine is designed to streamline and enhance your wire processing operations. This machine is equipped with advanced technology and features to ensure precise and efficient stripping of wires.
|
Model:
|
|
|
Brand:
|
|
○ Our pure electric wire cutting stripping machine is engineered for high performance and reliability. It is capable of handling a wide range of wire sizes and types, making it versatile and adaptable to various applications. The machine is designed to deliver consistent and accurate results, ensuring that each wire is stripped with precision and consistency.
○ With user-friendly controls and intuitive interface, our pure electric wire cutting stripping machine is easy to operate and requires minimal training. It is equipped with safety features to protect operators and prevent accidents, making it a safe and reliable choice for your wire processing needs.
| Model | YH-835F | YH-850F |
| Power supply | 220V~50-60Hz | 220V~50-60Hz |
| Operation interface | 7-inch touch screen display | 7-inch touch screen display |
| Stripping length | front end 0-500mm; rear end 0-300mm | front end 0-500mm; rear end 0-300mm |
| Guiding pipe control method | motor | motor |
| Number of motors | 9 | 9 |
| Wire cutting length | 0.1-99999.9mm | 0.1-99999.9mm |
| Application range | within 35mm² | within 50mm² |
| Blade material | imported tungsten steel/high-speed steel | imported tungsten steel/high-speed steel |
| Guiding pipe | 6/10/12/14 | 6/10/12/16 |

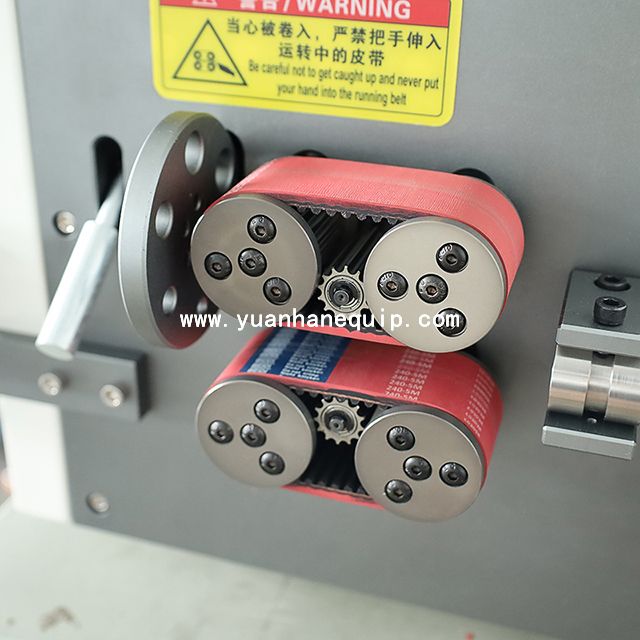

| Drive mode | 12-wheel drive pulley wire feeding | 12-wheel drive pulley wire feeding |
| Production capacity | about 3,000 wires (depending on the material) | about 3,000 wires (depending on the material) |

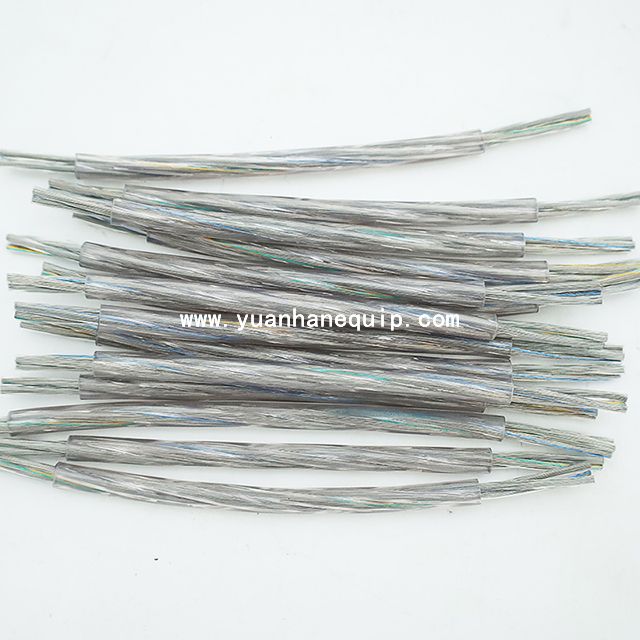

| Function | cutting/stripping (full stripping/half stripping/middle stripping) | cutting/stripping (full stripping/half stripping/middle stripping) |
| Optional | manipulator/wire feeder/conveyor belt/wire winding machine | manipulator/wire feeder/conveyor belt/wire winding machine |
| Dimensions | L640mm*W550mm*H440mm (excluding protrusions) | L640mm*W550mm*H440mm (excluding protrusions) |
| Weight | 80kg | 80kg |
