10-240 mm2 Cable Cutting and Stripping Machine10-240 mm2 Cable Cutting and Stripping Machine

The cable cutting and stripping machine is an essential tool for any electrician or cable technician. This powerful machine is designed to quickly and efficiently cut and strip cables of varying sizes from 10 mm2 to 240 mm2. It is easy to use and can be operated with minimal training, making it a great choice for technicians of all experience levels.

Model:
  • YH-624
Brand:
  • Yuanhan
Share to:
Features
Technical Data

○ Optional: MES system, Internet of Things system, fixed-point coding function, mid-stripping function, external auxiliary equipment alarm;

○ Modular interface for easy connection of accessories and peripheral devices;

○ Modular design, can be upgraded in the future;

○ Various add-on options to customize the system. Special cable processing, non-standard customization is available.

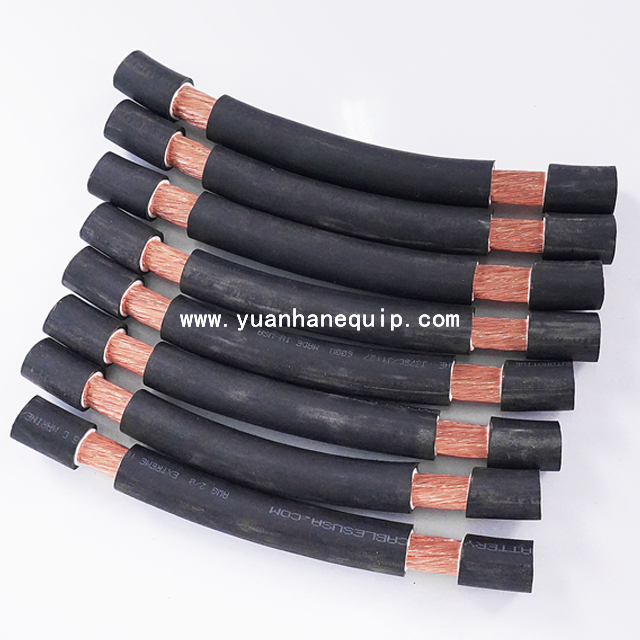

○ Our cutting and stripping machine offers unparalleled precision and efficiency, ensuring flawless results for your cable processing needs. The innovative rotary blade technology guarantees clean and accurate cuts, eliminating the risk of damage or fraying. With its exceptional stripping capabilities, this machine effortlessly removes insulation from cables of various sizes, streamlining your workflow and saving valuable time.

○ Crafted with utmost attention to detail, our cutting and stripping machine boasts a robust construction, guaranteeing durability and longevity. Its user-friendly interface and intuitive controls make it easy to operate, even for those new to cable processing equipment. Additionally, the machine's ergonomic design ensures operator comfort, reducing fatigue during extended use.

○ Safety is our top priority, and our cutting and stripping machine is equipped with comprehensive safety features. From emergency stop buttons to protective shields, we have taken every measure to ensure a secure working environment.

○ Whether you are in the telecommunications, automotive, or electrical industry, our precision cable cutting and stripping machine with rotary blade is the ideal solution for your cable processing needs. Experience enhanced productivity, accuracy, and reliability with this cutting-edge equipment.

Model

YH-624

Display method

7-inch color touch screen

Wire types

Single-core wire, multi-core cable, shielded cable, fully automatic fixed-length cutting and stripping

Processing range

10 - 240mm2

Cutting length

1mm-999999.99mm

Cutting tolerance

within 0.002*L (L=cutting length)

Stripping length

full stripping side A: 1-300mm, half stripping side A: 1-1000mm

full stripping side B: 1-150mm, half stripping side B: 1-500mm

The max. diameter allowed to pass

Φ32mm

Tool material

high quality imported high speed steel

Productivity (pcs/hour)

2000pcs/hour (depending on the length and size of the wire)

Drive mode

24-wheel drive (full servo motor)

Wire feeding method

belt feeding, no embossing or scratches on the cable

Lifting operation mode

digitally adjustable pressure wheel height

Power supply

AC220V 50/60Hz; 110V 50/60Hz optional

Air source

0.5-0.8Mpa clean air

Dimensions

1020*590*1140mm(length*width*height)

Net weight

280kg



×
