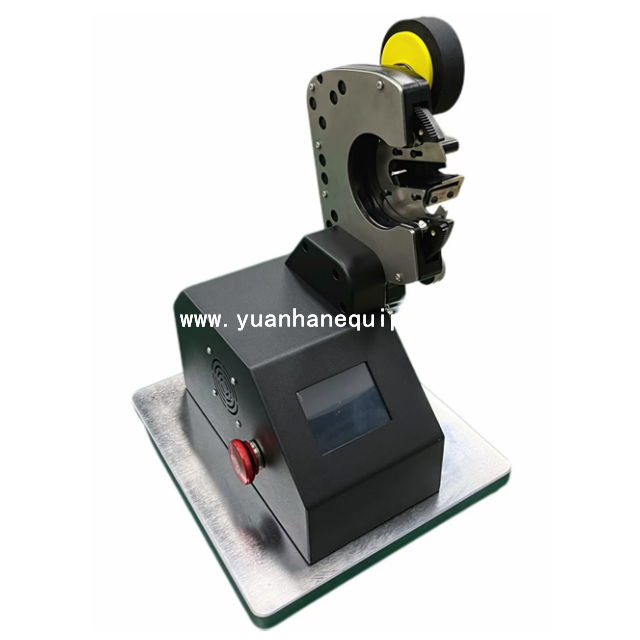

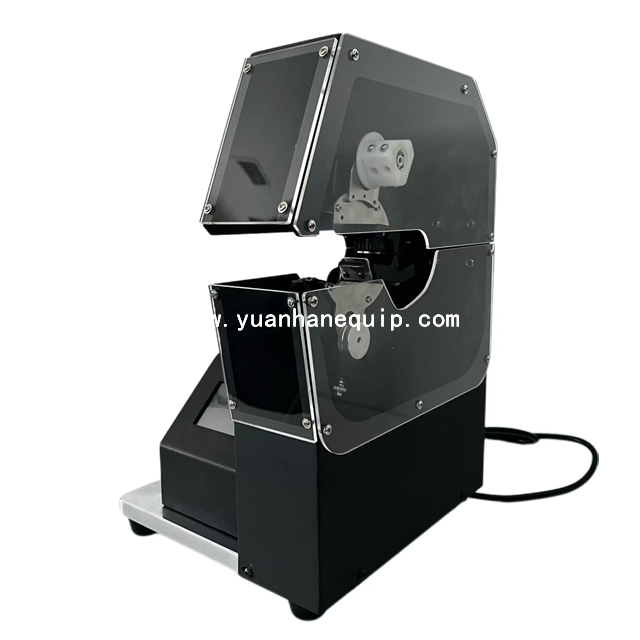

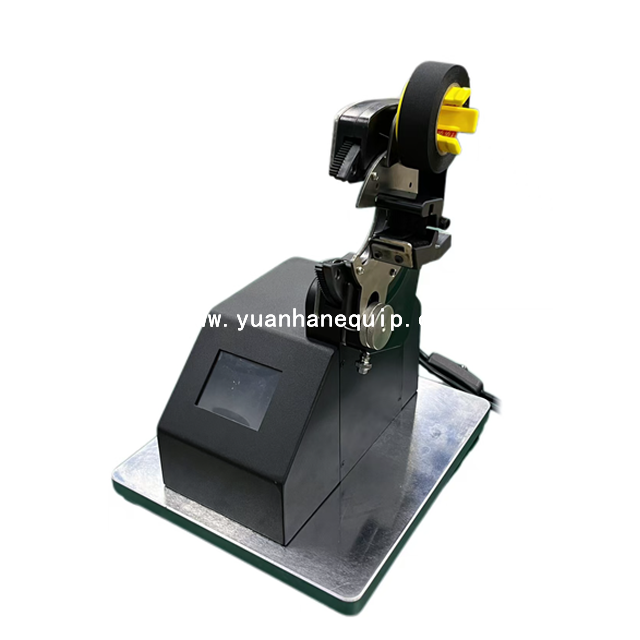

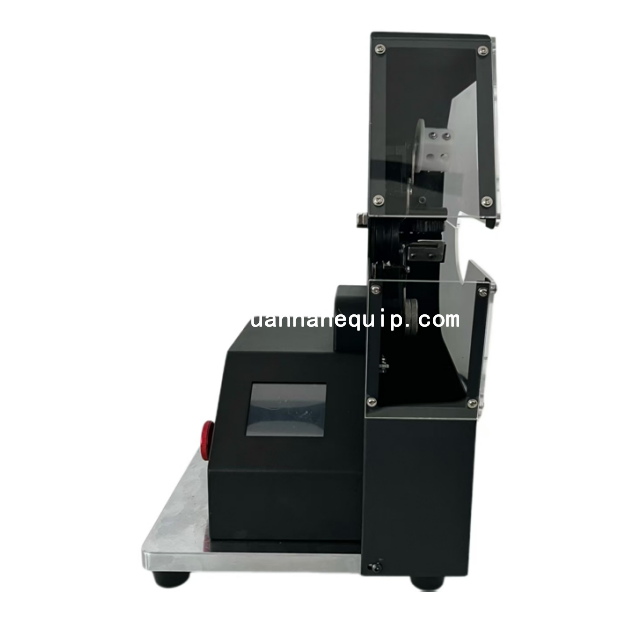

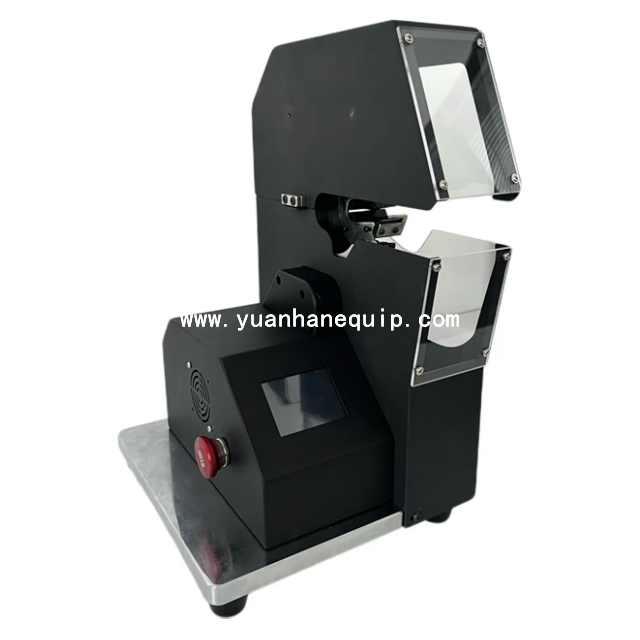

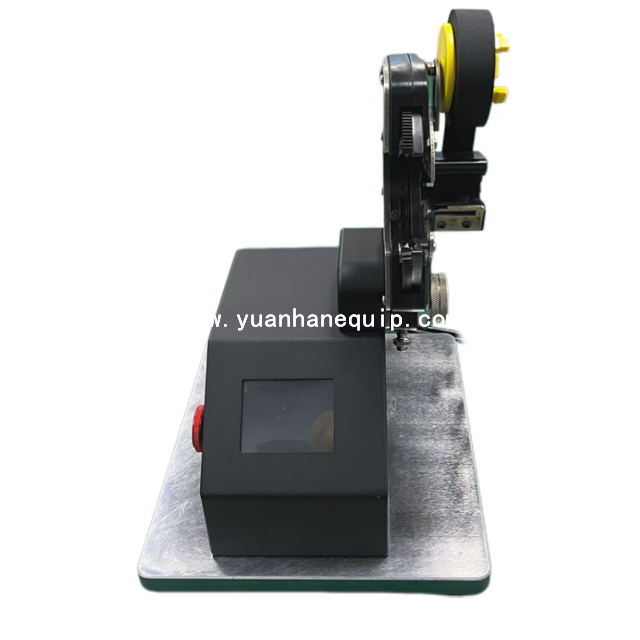

This desktop wire harness tape wrapping machine delivers compact, efficient tape wrapping for wire harnesses. It features adjustable speed and easy operation, ensuring a smooth, uniform finish while boosting productivity for small-to-medium batch production.
|
Model:
|
|
|
Brand:
|
|
○ Compact structure with high practicality.
○ It adopts intelligent touchscreen and servo motor control, providing two operation modes: fixed winding length and free winding length. Parameters can be flexibly adjusted according to product requirements.
○ Easy to operate; the machine can effortlessly complete wire harness wrapping operations, delivering efficient and high-quality wrapping effects.
○ The wire harness wrapping process is smooth, resulting in a neat, beautiful and smooth finish.
○ Equipped with a concealed cutting device and an emergency braking device, the machine ensures safe and reliable operation.
|
Model |
YH-LC07 |
|
Input Voltage |
220V/AC |
|
Power |
200W |
|
Equipment Weight |
16kg |
|
Applicable Wire Diameter |
2–15mm (standard model), 16–35mm (oversized model) |
|
Rotation Speed |
1–6 cycles per second (adjustable) |
|
Overall Dimensions |
225×250×350mm (without protective cover)228×255×370mm (with protective cover) |
