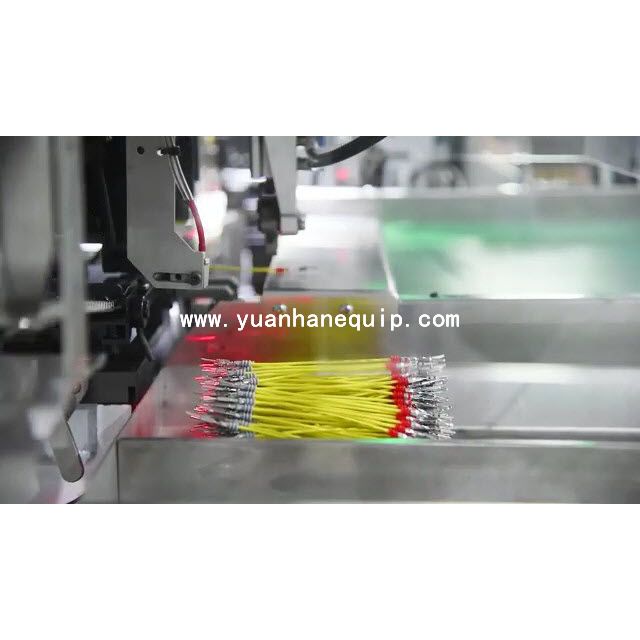

This is a fully automatic wire double-ended rubber seal insertion and crimping machine. Driven by Mitsubishi servo motor and ball screw, using Mitsubishi control system, the movement is stable and precise.
Model:
|
|
Brand:
|
|

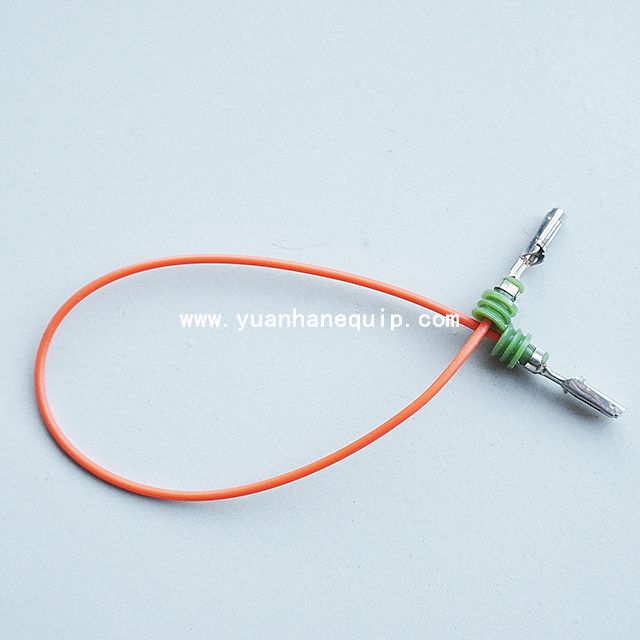

○ Function: wire cutting, stripping, double-ended rubber seals insertion and both ends terminal crimping
○ The Mitsubishi control system makes cable stripping, rubber seals insertion and terminal crimping very precise.
○ Touch screen operation, simple and convenient, can set stripping and cutting length, cutting depth, and crimping position.
○ The automatic detection function of the machine can effectively control the occurrence of defective products, so that they can be found and dealt with in time.
Model | YH-C332-FSS |
Max. Capacity | 4000 pieces/hour (L=100mm, seals insertion at both ends) |
Applicable wire diameter | 0.2-2.5mm² (3.0mm² or above optional) |
Cutting length | 35-9999mm (99999 optional) |
Cutting precision | (0.2+0.00005×L) mm |
Stripping length | 0-15mm |
Crimping force | 2.5T (4T optional) |
Crimping method | servo crimping |
Display language | Chinese/English |
Power supply | 3-phase 220V within ±10% (50/60HZ) |
Compressed air | 0.5Mpa 150(ANR)/min |
Dimensions | 1200mm*1100mm*2300mm (length, width and height) |
Weight | 525KG |
