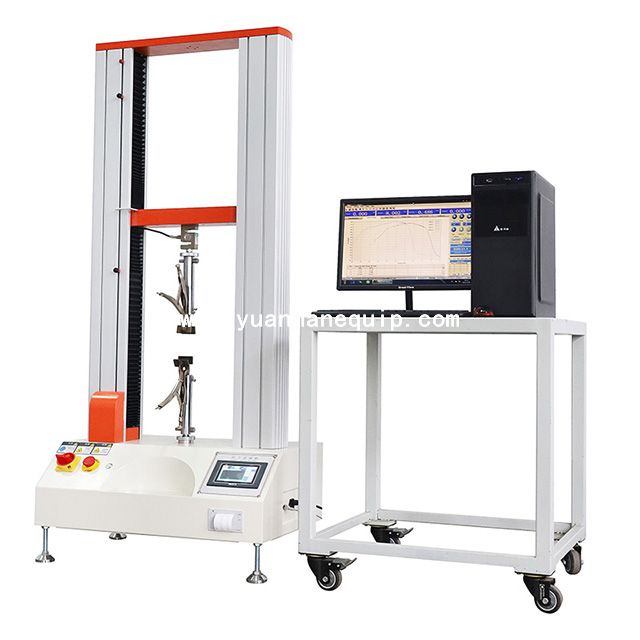

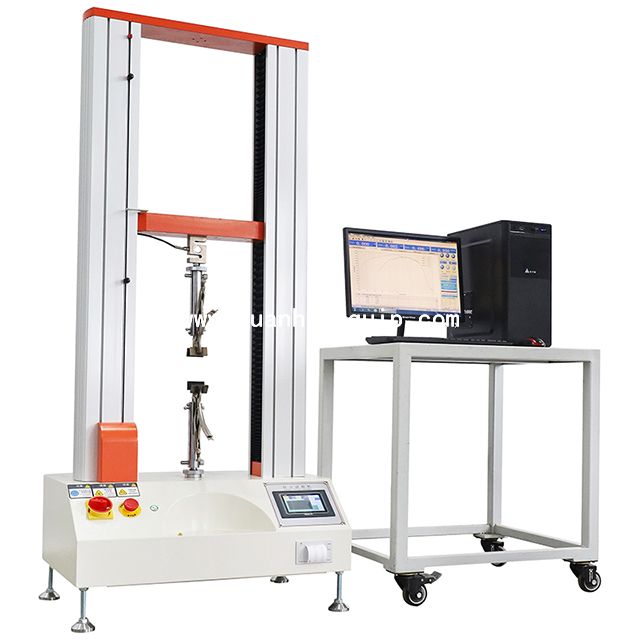

Dual Column Tensile Testing Machine

The dual column floor standing tensile testing machine is designed to test a wide range of materials, including, but not limited to: plastics, films, paper, packaging materials, filter material, adhesives, foils, food, toys, medical devices and components, in tension, compression, flexure, shear, and peel.

Model:	YH-SZ101
Brand:	Yuanhan

Inquire

Share to:

Description

Specifications

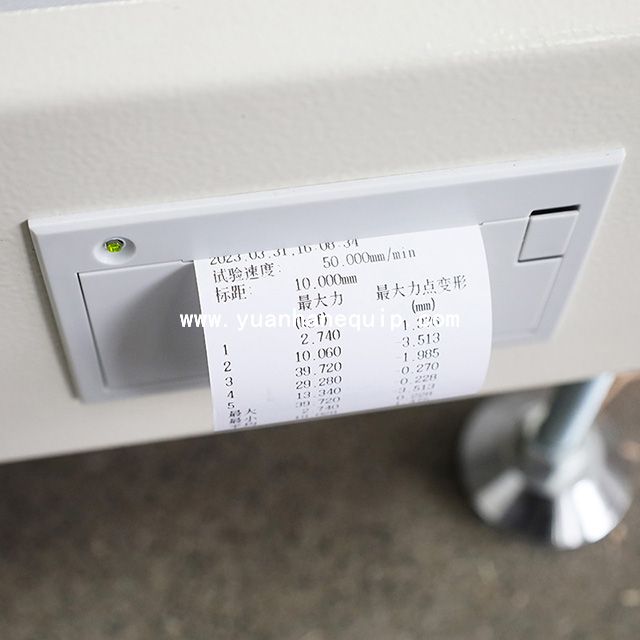

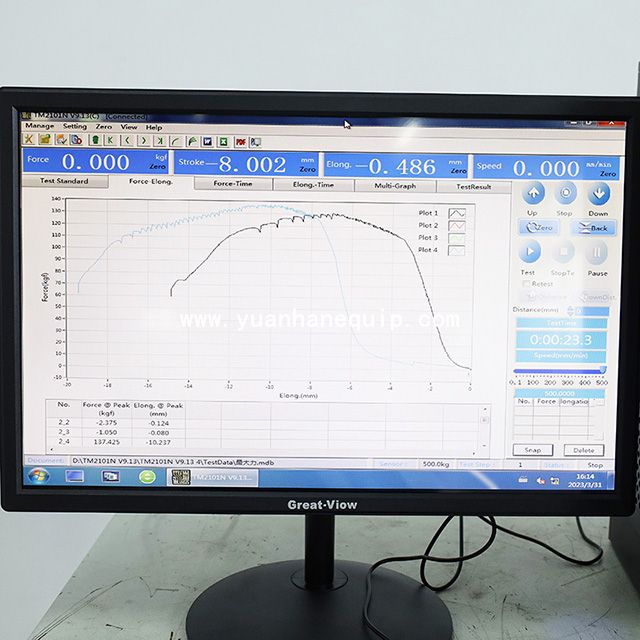

○ Multiple data can be printed, and graphic output comparison can be made according to different data, with high control precision and easy operation. Modular design is adopted, and various accessories are complete in variety and flexible in collocation.

○ This machine is mainly suitable for testing the mechanical properties of metals such as tension, compression, and bending. It can also perform constant stress, constant strain, creep, relaxation, axial, and radial tests. Parameters such as tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation, elastic modulus and other parameters can be automatically calculated according to GB, JIS, ASTM, DIN and other standards.

○ Available test data: maximum strength, minimum strength, breaking value, upper and lower yield strength, tensile strength, compressive strength, elastic modulus, elongation, maximum, minimum, and average values of the peeling interval, etc. (Customers need to select before ordering) It has multiple protections such as overload, overcurrent, overvoltage, undervoltage, overspeed, and stroke.

Model		YH-SZ101
Capacity selection		500KG/5000N
Test accuracy		0.5 level , the accuracy of the test force indication is better than ±0.5%,
Load sensing		High-precision tension and pressure sensors , (multiple sensors can be installed at the same time - optional)
High resolution		1/ 10 0000
Magnification		24-bit AD non-segment amplification
Unit selection		N, kN
Test speed range		Servo type: 0.05~500 mm/min stepless speed regulation
		Non-servo type 100~500 mm/min or 10~100 mm/min or 50~300mm/min stepless speed regulation
		When the speed is greater than 50 mm/min, the applied force should not be less than 25% of the maximum test force (GB/T 16491-1996)
Speed control accuracy		±1% (Class 1)
Speed control accuracy		±0.2% (Class 0.5)
Test effective width		Standard type: 40 0 mm (or customized according to customer requirements)
Test stroke ( including fixture)		Standard type: 800 mm (or customized according to customer requirements)
Overload setting protection function		When it exceeds 10% of the set test force, the system automatically shuts down for protection
Stroke setting protection function		Travel upper and lower limit position setting protection,
Power	AC Servo Motor & Servo Drive Controller
Power consumption		0.75 kVA; 20 kN
Power supply		1ø, 220 VAC, 50/60 Hz
Measurement system	hardware specification	Provided computer hardware specifications to buy original Lenovo or HP brand machines, or customers bring their own
	special software	Refer to the software version of the computer measurement system
Volume	the host	80x70x 180 cm ( WxDxH )
Weight	the host	300kg
	console	100kg
