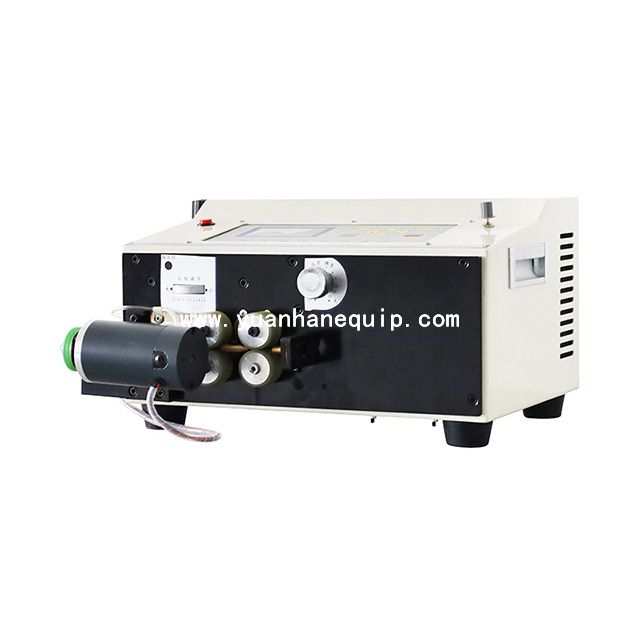

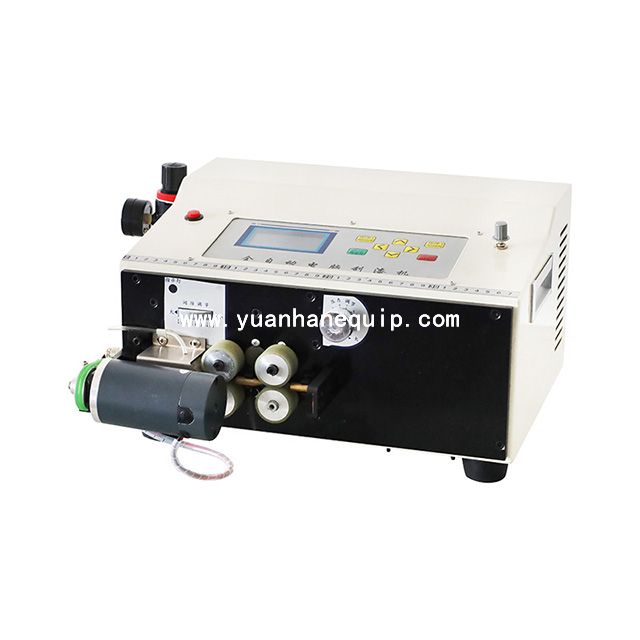

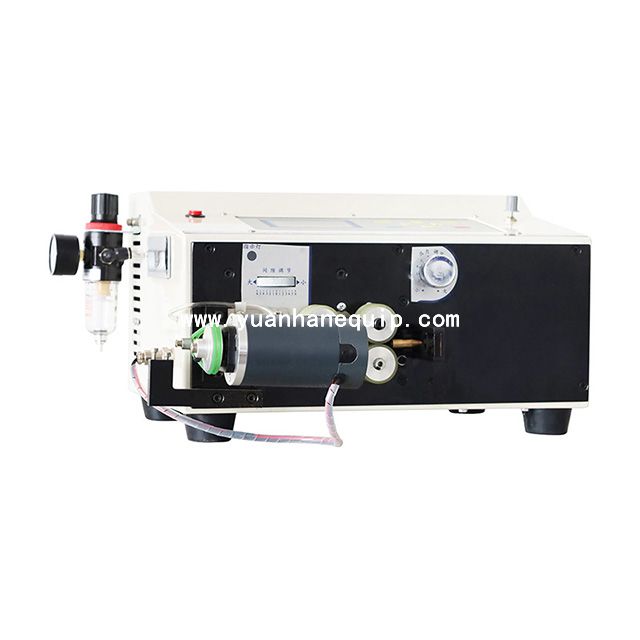

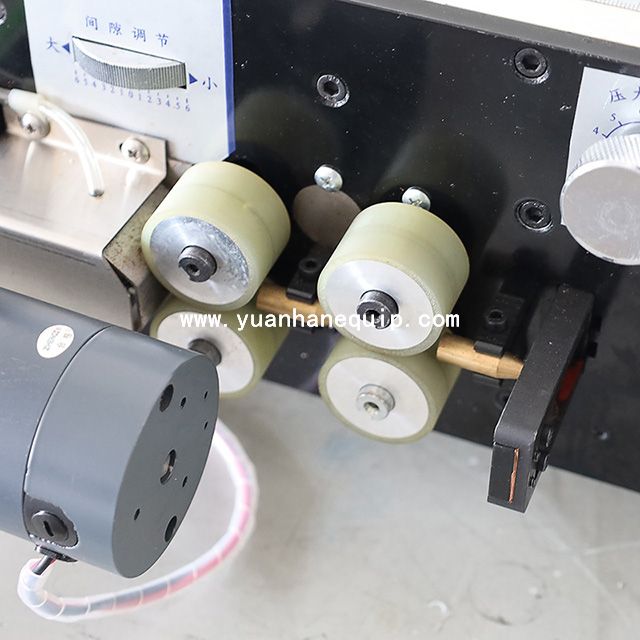

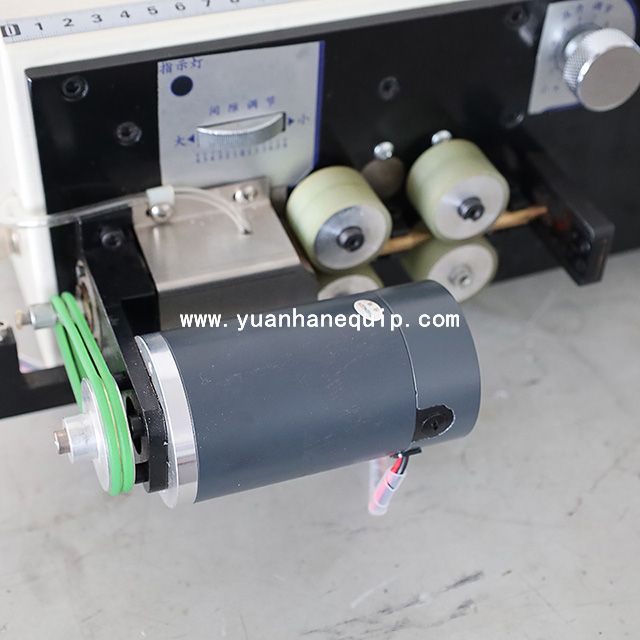

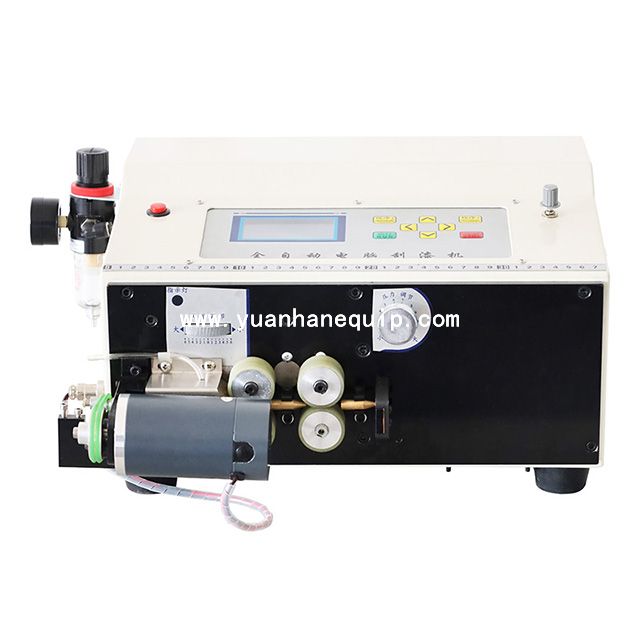

The automatic enamel wire stripping machine is a high-efficiency, precision-engineered electrical processing equipment designed to simplify and optimize the enamel removal process for various enameled wires.
|
Model:
|
|
|
Brand:
|
|
○ Full automatic wire feeding and enamel stripping, no damage to inner conductor
○ High-precision tungsten steel blade, clean and uniform paint removal
○ Wide compatibility for different enameled wire sizes
○ Easy parameter setting, stable running and labor saving
○ Compact structure, low power consumption and easy maintenance
|
Model |
YH-B07 |
|
Cutting Length |
0.01mm - 10m |
|
Cutting Tolerance |
(0.1-0.2)mm × L (L = cutting length) |
|
Applicable Wire Diameter Range |
0.25 - 1.2mm |
|
Working Efficiency |
15,000 pcs/hour (at cutting length = 50mm) |
|
Blade Material |
Tungsten Steel Blade |
|
Roller Pressure Adjustment |
Adjustable |
|
Speed Regulation |
1-6 levels |
|
Working Voltage |
AC220V / 50Hz |
|
Rated Power |
100W |
|
Max Power |
200W |
|
Weight |
21kg |
|
Dimensions (L×W×H) |
340 × 387 × 230mm |
