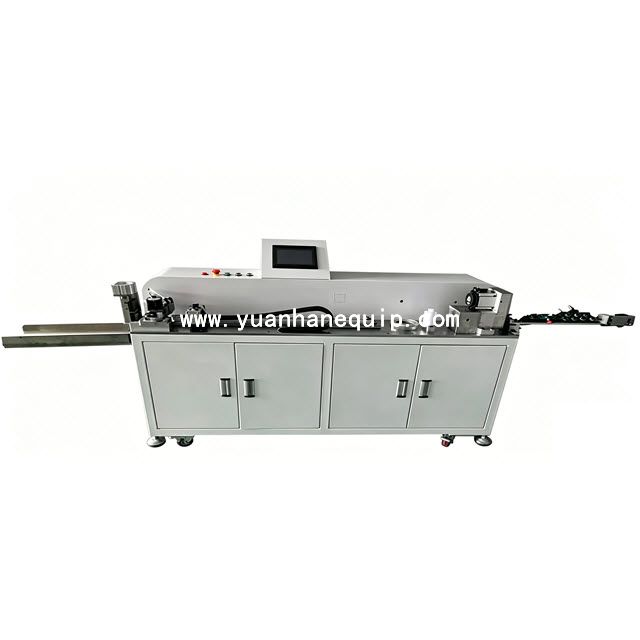

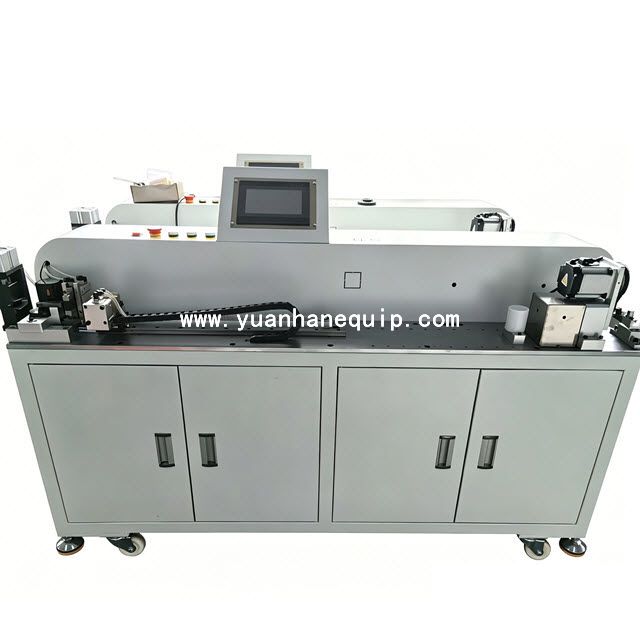

This automatic enameled wire all-in-one machine integrates wire cutting, enamel stripping, bending and optional tin soldering processes in one unit, designed for high-volume processing of magnet wires in electronic coil, transformer and motor manufacturing.
|
Model:
|
|
|
Brand:
|
|
○ All-in-one multifunctional design: Realize wire cutting, enamel stripping, bending, and optional automatic tin soldering on one machine
○ 7-inch touch screen operation interface, simple parameter setup for length, precision and bending angle
○ Ultra-high processing accuracy: ±0.1mm tolerance for both cutting and enamel stripping
○ Wide applicable wire range, fits enameled wire OD 0.5mm–3.0mm
○ Adjustable cutting and stripping length from 1mm to 9999mm, compatible with diverse product specifications
○ Freely adjustable bending angle to satisfy different terminal assembly demands
|
Product Model |
YH-ZX819 |
|
Voltage |
AC220V/50Hz |
|
Power |
Max. Output Power 1.2KW |
|
Operation |
7-inch Computer Touch Screen |
|
Applicable Wire Diameter |
OD0.5 to OD3.0mm |
|
Cutting Length |
1-9999mm |
|
Stripping Length |
1-9999mm |
|
Cutting Accuracy |
±0.1mm |
|
Stripping Accuracy |
±0.1mm |
|
Output Capacity |
500mm wire with 30mm stripping at both ends, 1200 pieces/hour |
|
Tin Soldering Support |
Optional tin soldering configuration |
|
Bending Angle |
Adjustable |
|
Main Functions |
Wire cutting, paint stripping, bending, tin soldering |
|
Core Configuration |
Two sets of stepping motors + one set of 750W servo motor |
|
Product Dimensions |
2650x400x1120mm |
|
Net Weight |
130KG |
|
Packaging Form |
Wooden Frame |
