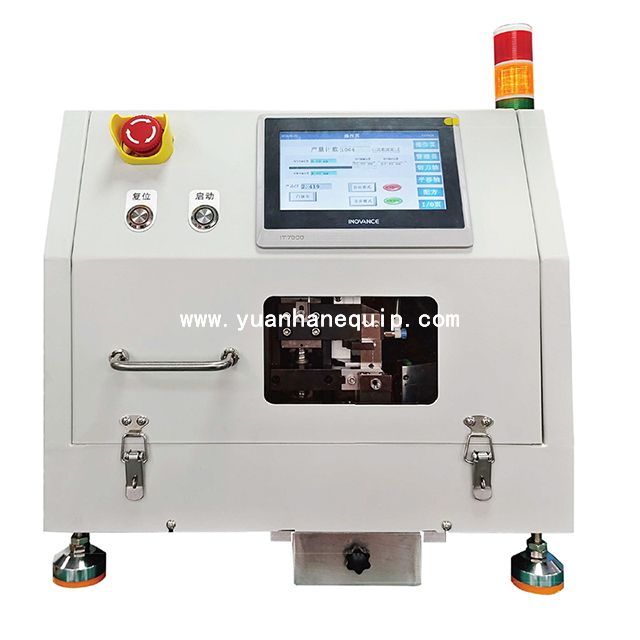

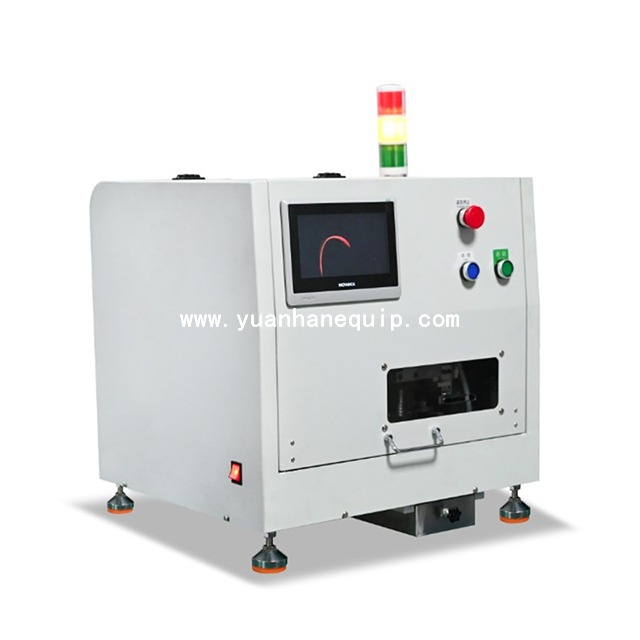

Equipped with advanced technology, our machine is capable of handling various types of fiber optic cables with ease. The stripping process is carried out with utmost precision, ensuring that the integrity of the cable is maintained throughout. The splitting function allows for the separation of individual fibers without causing any damage, making it an essential tool for any fiber optic installation or maintenance project.
|
Model:
|
|
|
Brand:
|
|
○ Stripping parameters for different wire materials can be directly adjusted numerically for easy operation.
○ Fiber optic stripping parameters for various diameters can be stored and recalled when switching between gauges.
○ Servo motor control effectively controls stripping and splitting accuracy.
○ Large differences in wire diameter can be adjusted quickly and easily by simply replacing the positioning block, typically within 3 minutes.
| Model | YH-016 | ||
|
Efficiency |
C/T = 3.5S/piece |
Air Supply |
0.6 - 0.8Mpa |
|
Applicable Wire Diameter |
Φ1.4 - Φ3 |
Ambient Temperature |
-5 - 40°C |
|
Stripping Length |
Within 30 mm |
Voltage |
AC 220V |
|
Stripping Precision |
0.01 mm |
Current |
50/60Hz |
|
Fork Length |
Within 15 mm |
Power |
0.9 kw |
|
Weight |
Approximately 35 kg |
Main Dimensions |
L480mm×M400mm×H460mm |
