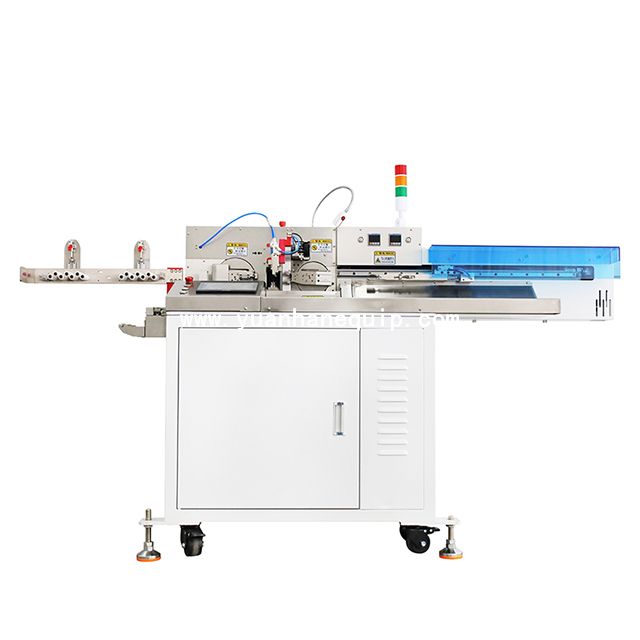

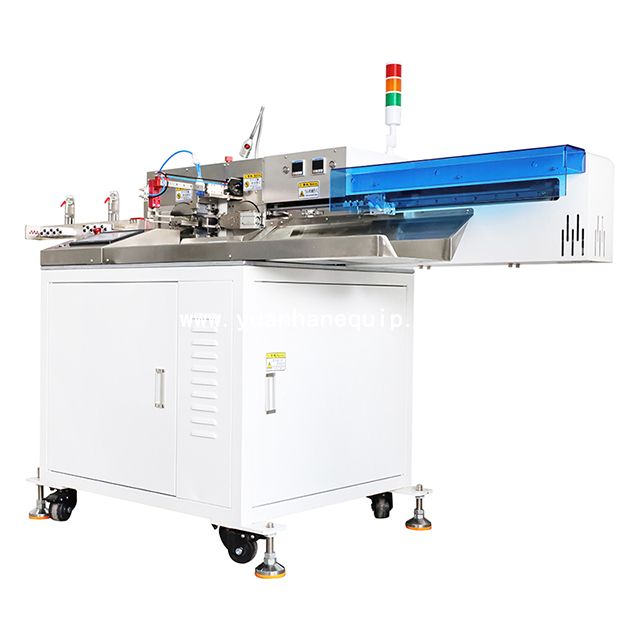

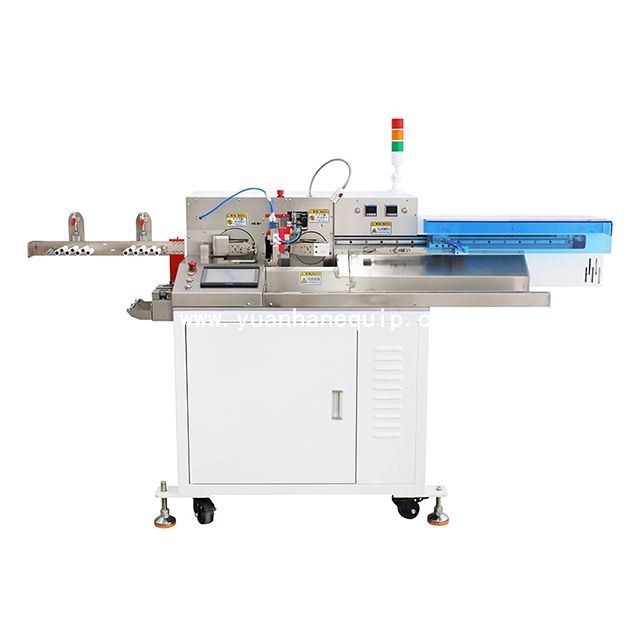

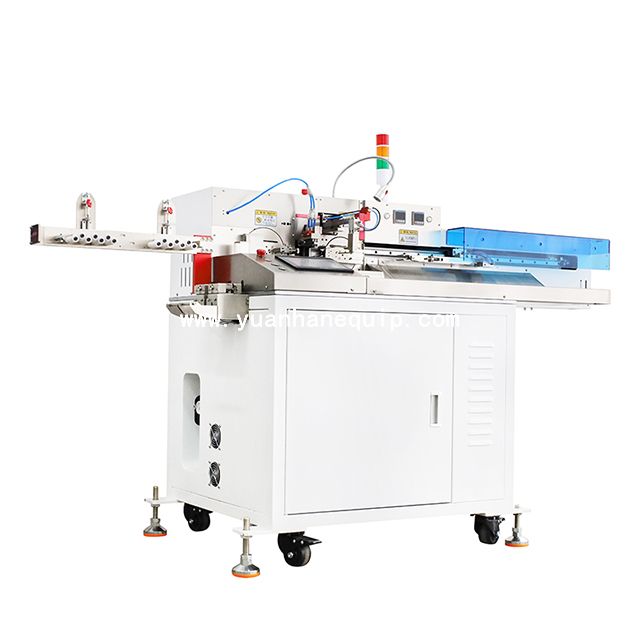

This five-wire double-head tinning machine is an integrated automated harness processing device, capable of simultaneously processing 5 wires with cutting, double-end stripping, conductor twisting, flux coating and dual-head tin dipping procedures in one go, greatly boosting production throughput for multi-wire cable batches.
|
Model:
|
|
|
Brand:
|
|
○ Adopts an exquisite and compact structure with a small footprint. Equipped with a touchscreen control system supporting both Chinese and English menus for intuitive, user-friendly operation.
○Enables rapid switching between production processes and raw materials. Features high efficiency, superior precision and fast processing speed, alongside simple maintenance.
○ All parameters including cutting blade size, wire cutting length, stripping length, twisting torque & direction, flux coating depth and tin dipping depth can be set digitally on the touch panel.
|
Model |
YH-JWXZX01 |
|
Power Supply |
AC220V 50/60Hz Single Phase |
|
Air Source |
0.5~0.7MPa |
|
Core Function |
Automatic wire feeding, fixed-length cutting, full/half stripping at both A & B ends, wire twisting & tinning at A end, wire twisting & tinning at B end |
|
Applicable Wire Gauge |
#20AWG ~ #32AWG (other specifications customizable) |
|
Cutting Length Range |
25 ~ 800mm (other specifications customizable) |
|
Production Capacity |
8000-12000 pieces/hour (depends on wire type) |
|
Wire Stripping Length |
0.5 ~ 11mm at both A & B ends (other specifications customizable) |
|
Core Wire Twisting Length |
3.5-9mm |
|
Tinning Length |
0.5-11mm at both A & B ends |
|
Alarm Detector |
Low air pressure alarm, wire presence/absence alarm, motor fault alarm |
|
Equipment Dimensions |
L1210*W770*H1370mm (excluding protrusions) |
|
Net Weight |
Approx. 300KG |
