High Precision Wire Flag Label Applicator Machine

This is a semi-automatic flag label marking machine for applying labels, barcodes, electronic regulatory codes, etc. to cables and hoses.

Model:	ZCUT-430JP
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

○ Servo motor ensures accurate positioning.

○ The German SICK label electric eye quickly senses the label gap and completes the label identification.

○ Reasonable mechanical structure design to ensure smooth and stable labeling.

○ It is easy to apply and can be adjusted in a large range to realize folding and labeling of products of different specifications.

○ Improve production efficiency and save labor costs

○ Optional printing function, printing and labeling can be finished at the same time.

○ The machine has its own adjustment function, as long as the label is installed, it can be used normally immediately without adjusting the machine.

Model	ZCUT-430JP
Labeling accuracy	±0.1 (excluding product and label errors)
Labeling speed	1500-3000pcs/H (depending on label size and manual operation speed)
Applicable product size	all kinds of round wire, flat wire, water hose and other products standard: 0-3.5MM, 3.0-5.5MM, 4.0-10MM (out of range need to be customized)
Applicable label size	length: 20mm - 160mm width: 5mm - 45mm (out of range need to be customized)
Standard positioning ruler	200MM(out of range need to be customized)

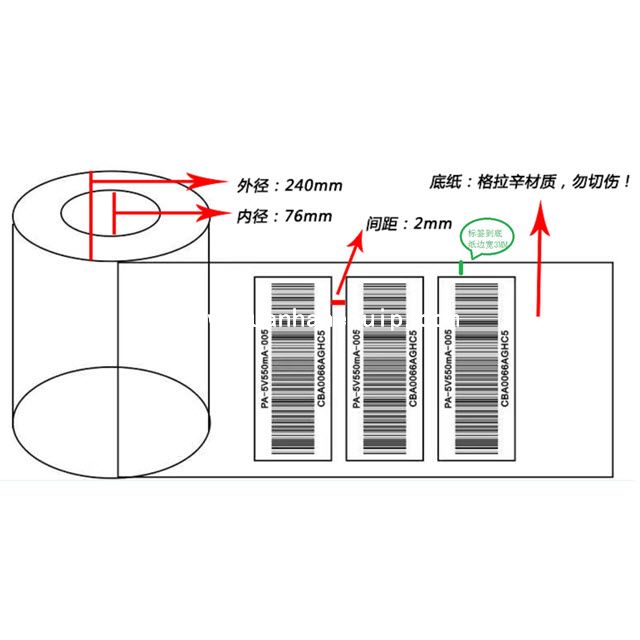

Max. outer diameter of label roll	240mm
Max. inner diameter of label roll	76mm
Power supply	220V/50HZ, 0.25KW
Air pressure	4-6bar
Ambient temperature	+5-+40℃
Relative humidity	(20-90)%RH
Dimensions	about 580mm×680mm×1000mm (length×width×height)
Weight	about 86kg
