Flat Cable Laser Stripping MachineFlat Cable Laser Stripping Machine

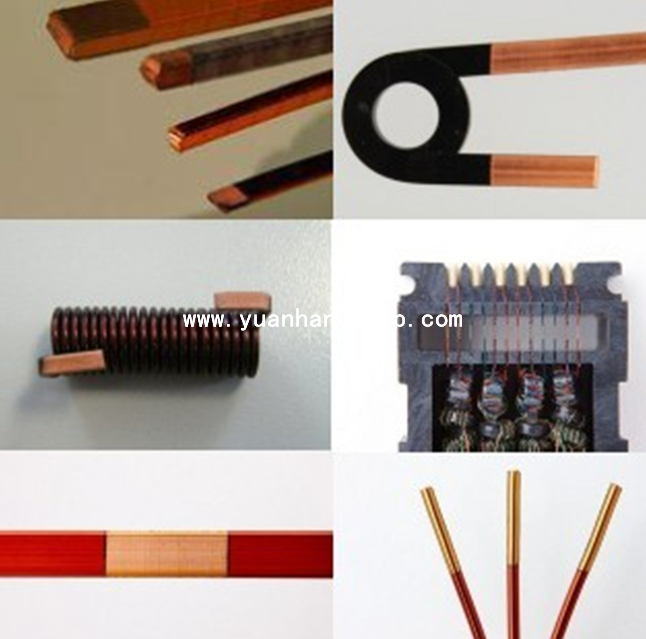

YH-JG302 flat cable laser stripping machine is specially used for laser stripping of flat enameled wires, with no optical pollution and small power coupling loss. In addition, this machine is also suitable for marking LOGO, date, etc. on the surface of magnetic components.

  • YH-JG302
  • Yuanhan
Share to:

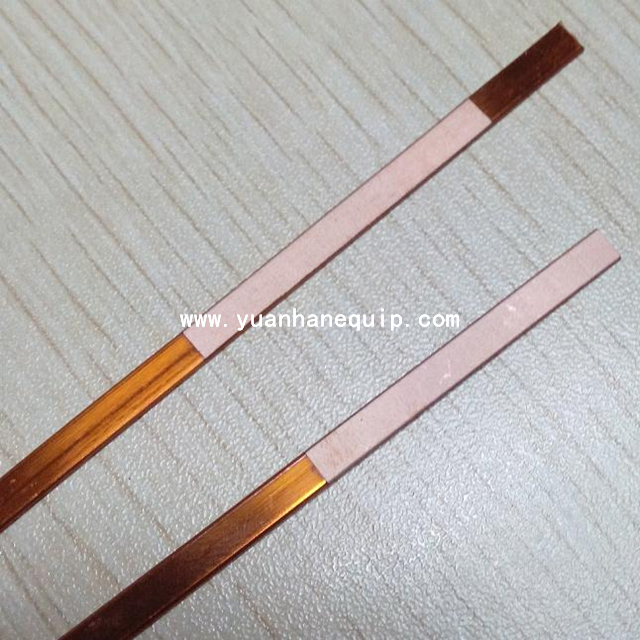

○ High processing efficiency. The laser beam under computer control can move at high speed (speed reaches 4 to 6 meters/second), and the processing process can be completed within a few seconds. The paint removal of a 2.4*0.24 flat wire with a length of 5mm can be completed in 0.5 seconds. Laser marking systems are equipped with computer control systems that can flexibly cooperate with high-speed assembly lines. ​

○ High processing accuracy. Laser can act on the material surface with an extremely thin beam, and the thinnest line width can reach 0.05mm. It creates a broad application space for precision processing and adding anti-counterfeiting functions. Laser marking can meet the need to print large amounts of data on extremely small plastic parts. For example, it can print two-dimensional barcodes that require more precision and higher definition, which has stronger market competitiveness than imprinting or jet marking.

○ Non-contact processing, marks can be printed on any regular or irregular surface, and the parts will not generate internal stress after marking.

○ The material has a wide range of applications and can remove paint from the surface of enameled wires and print on materials of different types or hardnesses such as metal, plastic, ceramics, glass, paper, leather, etc.;

○ Can be integrated with other equipment on the production line to improve the automation of the production line;

○ The markings are clear, durable, beautiful, and can effectively prevent counterfeiting;

○ Long service life and no pollution;

○ The operating cost is low, the marking speed is fast and the mark is formed at one time, and the energy consumption is small, so the operating cost is low.

○ Low maintenance cost. Laser marking is non-contact marking. Different ink consumables for different inkjet printers will not block the nozzle. There is no need to clean the nozzle. The character size can be adjusted at will. Software control and operation are easy. Laser printing Characters, permanent markings, cannot be erased with alcohol.

Model YH-JG302
Paint removal efficiency 1600PCS/H(2.4*0.24 flat coil double pin single side paint removal)
Laser wavelength 1064nm
Paint stripping range 110mm×110mm
System Windows7
Power supply voltage AC220V 20A50HZ
Dimensions 800mm×950mm×1450mm
Weight 160KG
