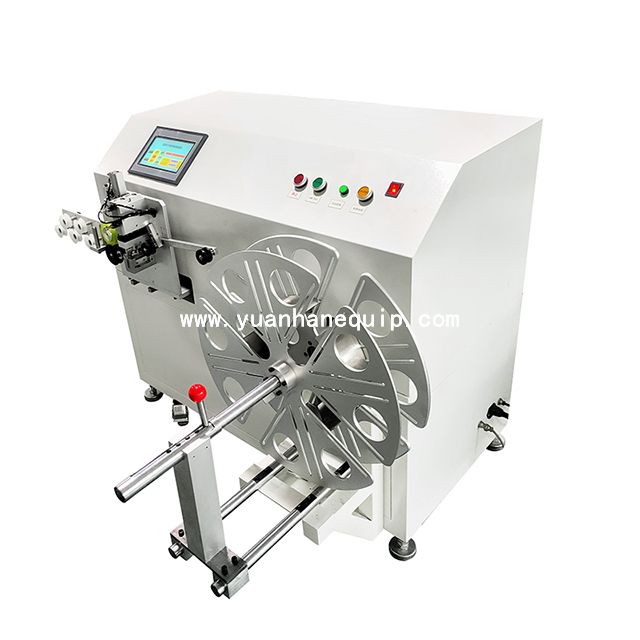

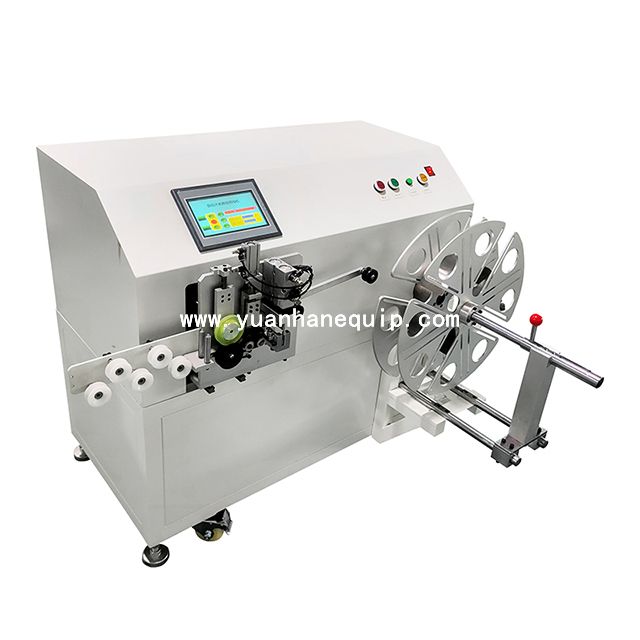

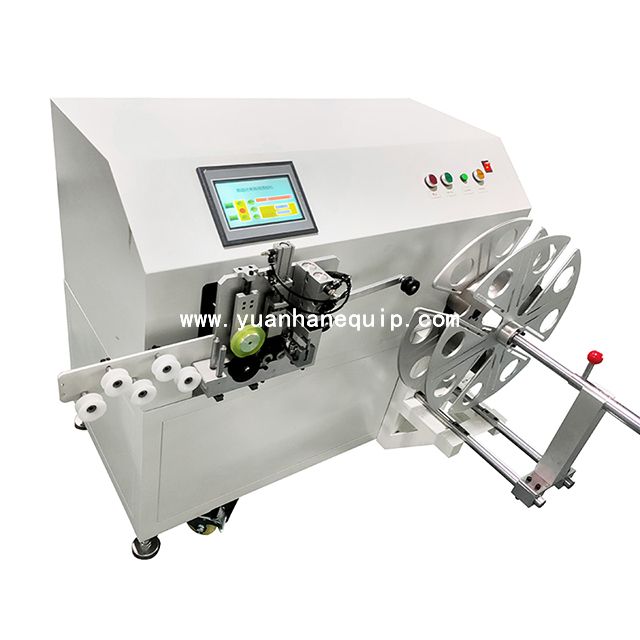

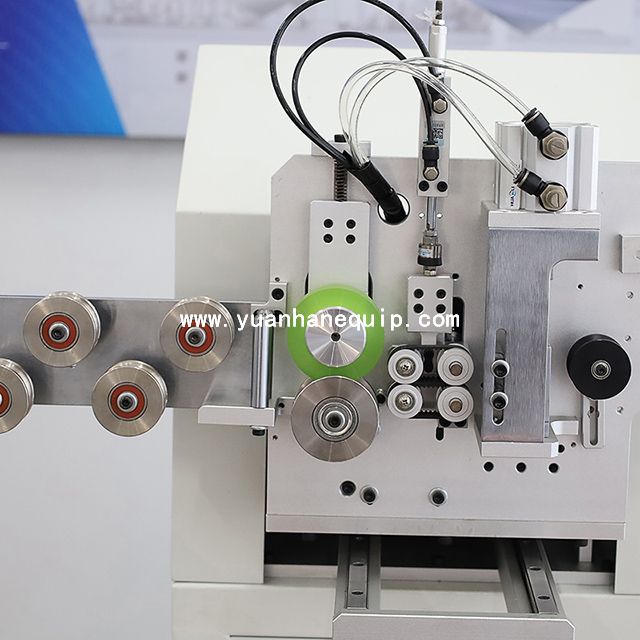

Floor-standing Cable Coiling Machine with Meter CounterFloor-standing Cable Coiling Machine with Meter Counter

This floor-standing cable coil winder comes with a digital meter counter. It is suitable for processing wires with a diameter of 0.5-16mm.

Model:
  • YH-L100R
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Using PLC touch screen control

○ Function: counting meters, cable coil winding

○ The finished product is very neat, being a good helper for winding wires into coils

○ Available wire size: 0.5-16mm

○ The number of turns can be arbitrarily set and the winding speed can be adjusted

Model YH-L100R
Input voltage AC220V 50/60HZ, AC110V needs to be customized
Maximum power less than 1500W
Input air pressure 0.5-6.5MPa
Applicable wire diameter 0.5-16MM
Cable width stroke less than 180MM
Winding length and number of turns adjustable
Winding speed 5-500 laps/minute
Winding inner hole diameter 50-500MM
Reel diameter maximum 600MM
Meter counting tolerance 25MM
Dimensions 850mm*550mm*1000mm
Weight 150KG



×
