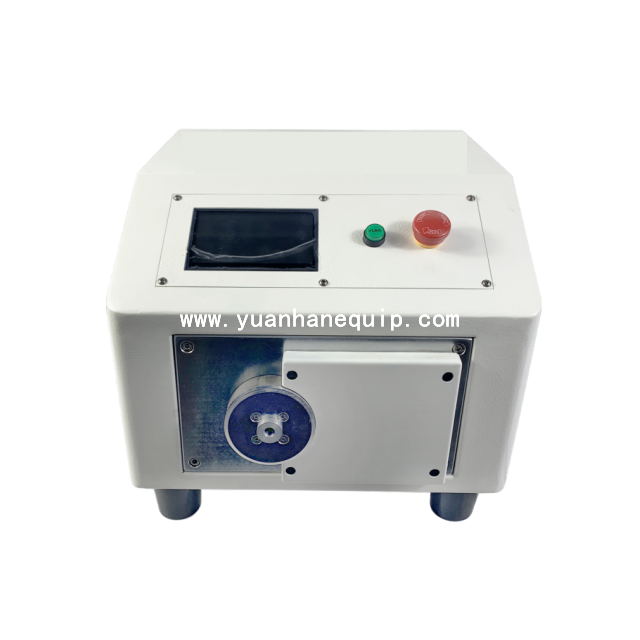

This electric four-side crimping machine is designed with high-precision performance and user-friendly operation, making it an ideal choice for terminal crimping work in various industries. It integrates advanced components and humanized functions to ensure stable, efficient and accurate crimping results.
|
Model:
|
|
|
Brand:
|
|
○ This electric four-side crimping machine adopts hybrid stepper motors, high-efficiency micro-stepping drivers, integrated circuit boards and high-quality mechanical parts, enabling precise motion control, stable operation and consistent crimping quality.
○ It supports four-side crimping for wires up to 4 mm², covering most industrial wire specifications and meeting applications in electronics, electrical appliances and wiring harness processing.
○ The crimping and opening positions can be set directly via the color touch screen, simplifying operation and eliminating tedious manual adjustments. The intuitive interface allows quick start with no professional training required.
○ It features single-step and automatic modes, with clear operation steps for easy debugging and error reduction. The data storage function can save crimping parameters for 20 different terminals, avoiding repeated settings.
○ Triple positioning ensures accurate centered crimping and eliminates offset issues, while the pressure-holding function delivers firm, reliable terminal-wire connections and improves product durability.
|
Model |
YH-SBYJ02 |
|
Crimping Range |
0.1–2.5 mm² |
|
Terminal Length |
5–30 mm |
|
Crimping Adjustment Increment (L) |
0.1 mm |
|
Terminal Diameter |
Below 1.5–6 mm |
|
Terminal Thickness |
Below 0.7 mm |
|
Operation System |
Color Touch Screen, Chinese & English |
|
Program Storage |
20 sets |
|
Power Supply |
AC 220V, 50/60Hz |
|
Crimping Jaw Material |
Die Steel |
|
Dimensions |
330 × 350 × 240 mm |
|
Net Weight |
24.5 KG |
|
Power |
500W |
|
Crimping Force |
3T |
